Outdoor

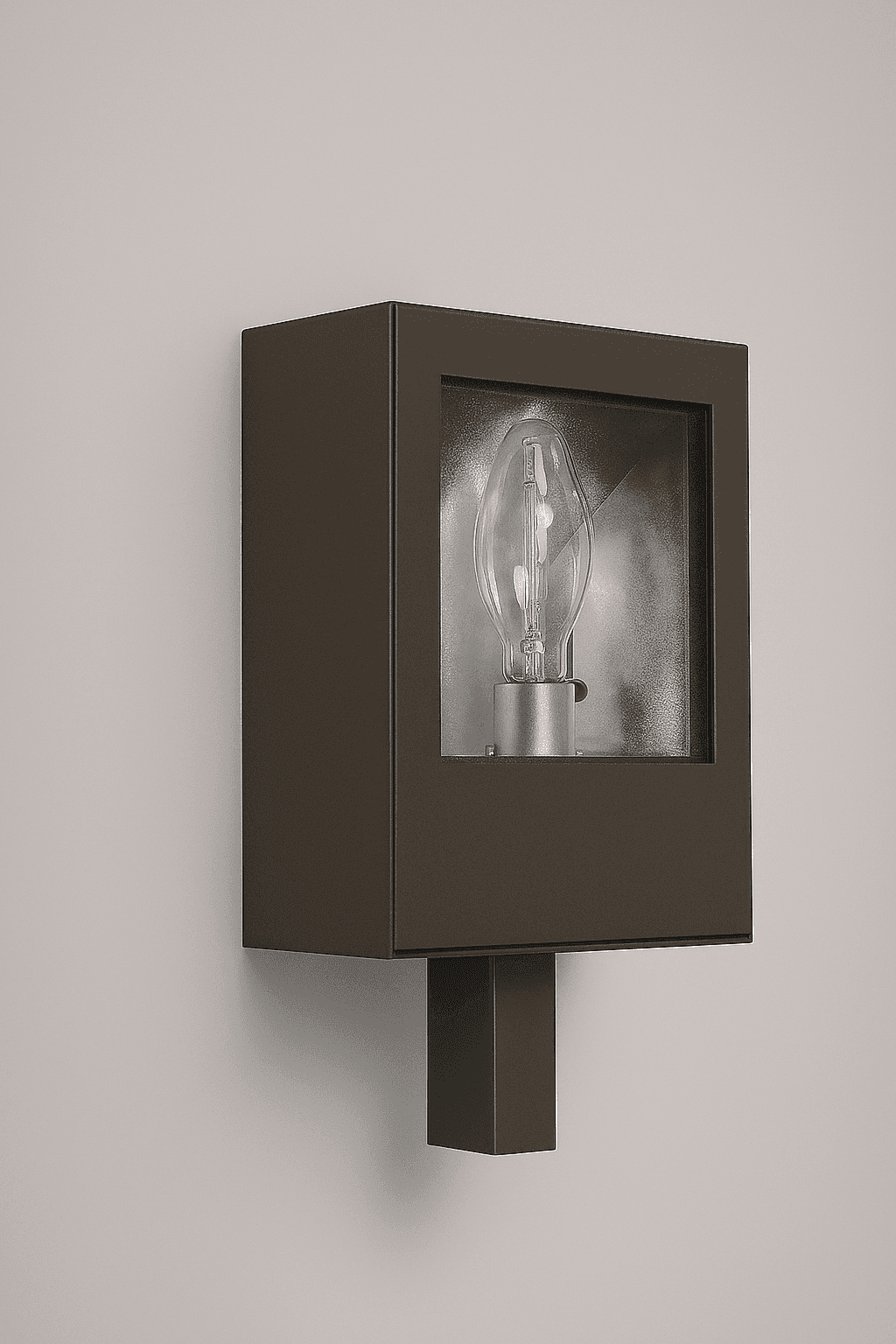

MFL5

Application

Large light design for walkways, parking lots, street lighting and drive ways. For other general applications where lighting may come into use.

Features:

- Preformed aluminum housing and door frame. Housing is dark bronze polyester powder coat paint finish standard. Also available in white, black and custom color finish.
- Rubber gasket included to prevent dirt or moisture from outside.
- Anodized specular aluminum reflector with high efficiency, heat and impact resistant clear tempered glass lens.


Mounting:

- Provided aluminum arm for square pole mounting or round pole mounting.


Lamp:

- Up to HPS 400W, MH 400W.
- Uses a mogul base (E39) porcelain socket with screw shell and center contact.  Lamp included.


Electrical:

- MH ballasts are standard high power factor ballast with ambient operating temperature of -20°F (-30°C) to 108°F (90°C); 180°C insulation system.
- HPS ballasts are standard high power factor ballast with ambient operating temperature of -40°F (-40°C); 180°C insulation system.


Listing:
- UL/CUL listed.
- Suitable for wet location.
- ARRA compliant.
