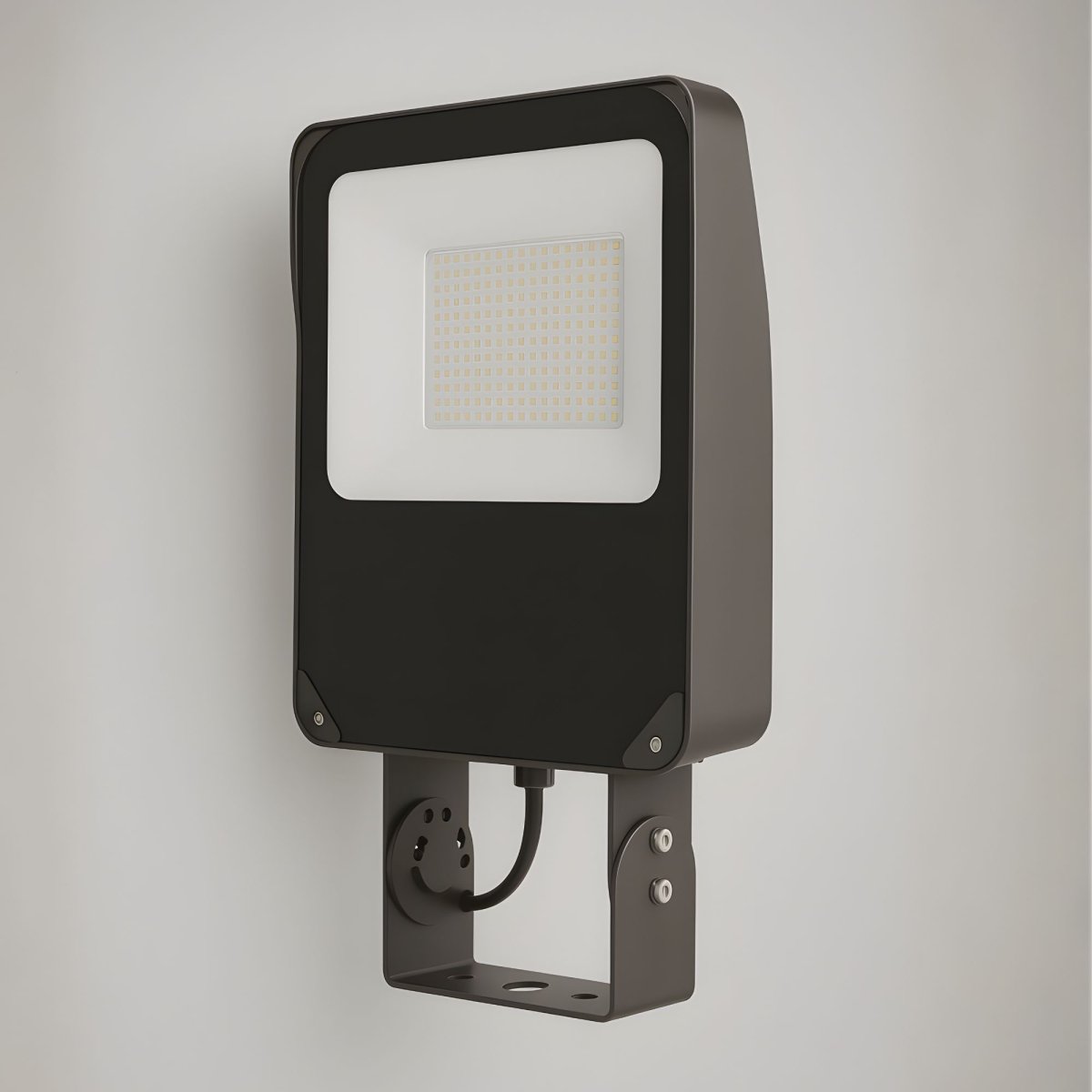

MFL8 LED Mini Flood Light

Features:

- Die-cast aluminum optimize the best heat dissipation management as the main part of the fixture, which effectively improves the LED efficiency.
- Durable surface coating powder spraying and fully sealed tempered glass can extend the durability of the fixture.
- One-piece die-cast aluminum housing with optimal thermal management both enhances LED efficacy and extends fixture’s life.
- Field adjustable wattage and color temperature.

Mounting:

- 1/2” NPS Knuckle, Slipfitter, Trunnion and Yoke are all available.

Optic:

- Optics(NEMA Type): 7Hx7V.
- Scalable Lumen Packages from 2,050 to 19,000 Lumens.
- The use of advanced refraction and reflection optical design concepts provides an optimal combination of vertical and horizontal illumination.
- The heat-resistant and impact-resistant toughened glass maximizes light extraction while obtaining a great night appearance.

LED:

- Lumileds LED
- Color Temperature: 3000 / 4000 / 5000K
- Lumen efficiency: up to 161 lm/W
- Color rendering index> >70
- Life span: 50,000 hours
- Lumen Maintenance L70 greater than 100,000 hours IESNA TM-21.

Electrical:

- Universal 120-277 VAC input voltage.
- 1-10V dimming.
- Both drivers have a power factor >90%, THD <20%.
- Operating Temperature Range: -40˚C - + 40˚C (-40˚F - + 104˚F).

Listing:
- UL / cUL listed.
- DLC Premium listed.
- Suitable for wet location.
- 5 years limited warranty.
- IP65
- IES LM-80 results and TM-21 calculations
- ARRA compliant. (optional)
