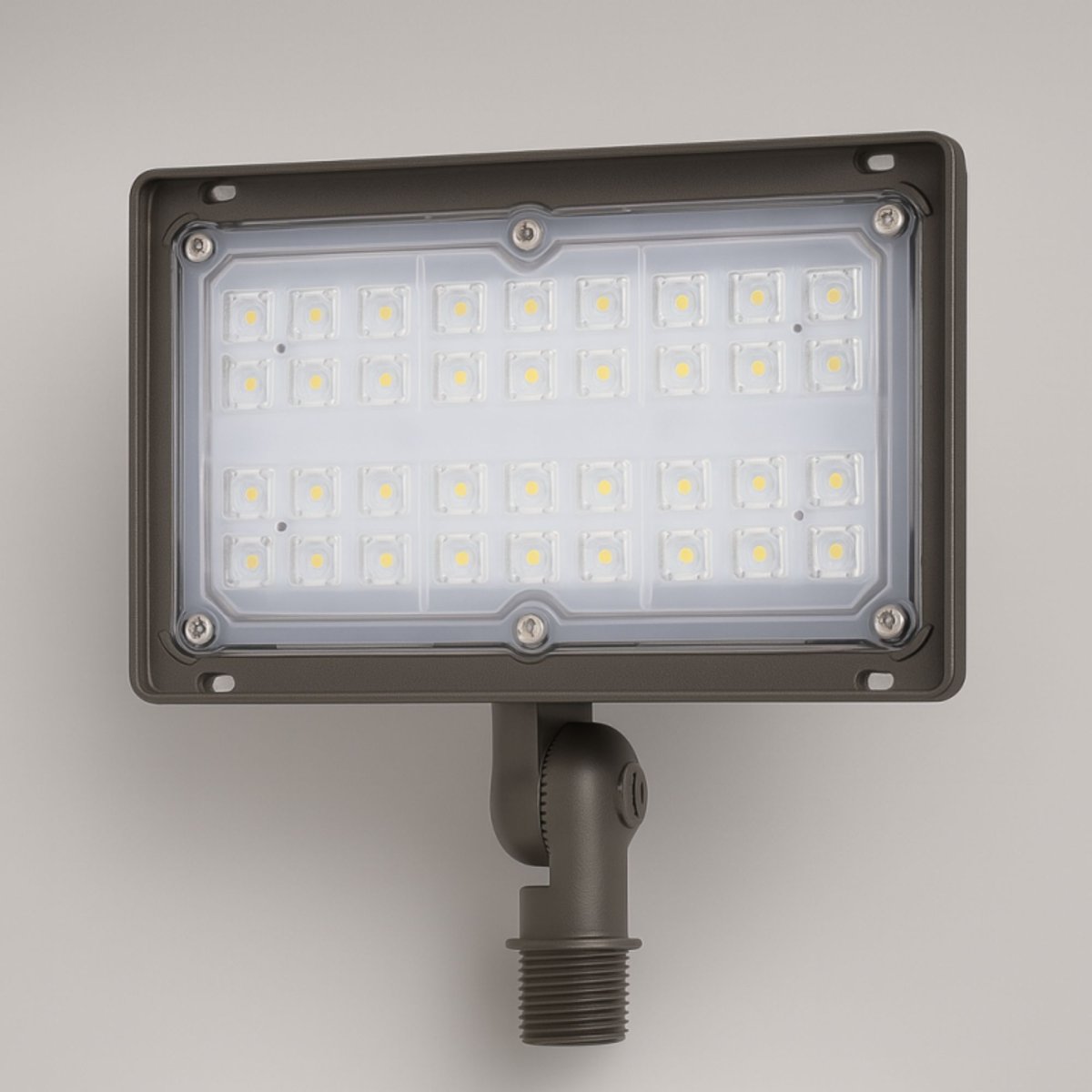

MFL6 LED Mini Flood Light
The MFL6 luminaire is a high performance LED lighting solution designed with optical versatility and a slim, low profile design. Its rugged cast aluminum housing minimizes wind load requirements and features an integral, watertight power source compartment and high performance aluminum heat sinks. Suitable for parking lots, walkways, car dealerships, roadways, and etc.
Contact us for availability and pricing information.
Need assistance?
MFL6 LED Mini Flood Light
MFL6 LED Mini Flood Light
Downloads & Resources
Product Overview
The MFL6 luminaire is a high performance LED lighting solution designed with optical versatility and a slim, low profile design. Its rugged cast aluminum housing minimizes wind load requirements and features an integral, watertight power source compartment and high performance aluminum heat sinks. Suitable for parking lots, walkways, car dealerships, roadways, and etc.
Features:
- Housing and electrical compartment are made from die cast aluminum, pre-treated and powder-coated to meet the most rugged industry standards.
- Vented housing isolates LED modules from driver, maximizing product life and performance.
- Door frame is sealed to housing with a continuous extruded silicone gasket.
- Operating temperature: -40ºF~104ºF (-40ºC~40ºC)
Mounting:
- Knuckle mount (1/2” NPS).
- Trunnion mount.
- Slip Fitter.
- Yoke mount.
Optic:
- NEMA Type: 7H x 6V
- High performance acrylic optic securely attached to internal heak sink for maximum thermal dissipation.
LED:
- Lumileds LED
- Color Temperature: 4000 / 5000K
- Lumen efficiency: up to 133 lm/W
- Color rendering index> >70
- Life span: 100,000 hours
Electrical:
- Non-dim (15LED ~ 60LED) and 0-10V dimming (70LED ~ 200LED)
- Input Voltage: 120-277VAC, 50-60Hz
- Optional: 347-480V
- Power Factor: >90%
- THD <20%
Listing:
- UL / cUL listed.
- DLC listed.
- Suitable for wet location.
- 5 years limited warranty.
- ARRA compliant. (optional)
