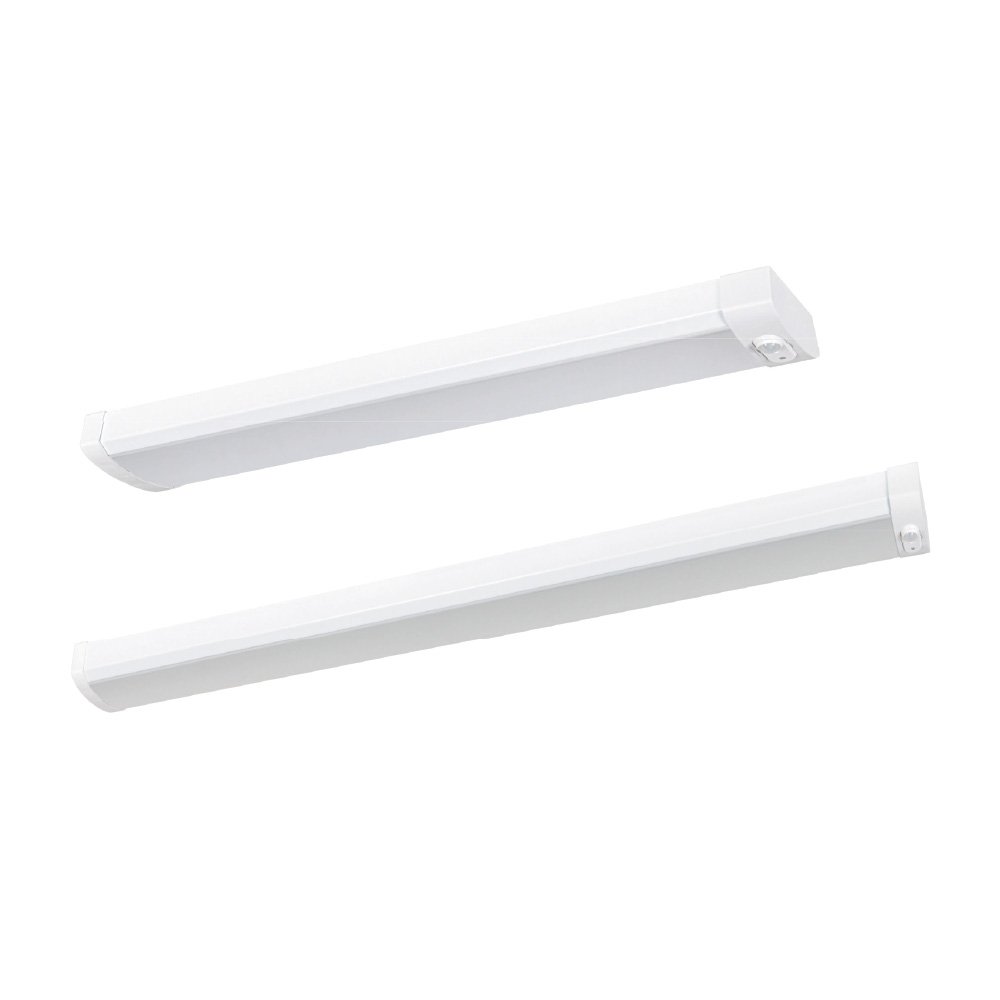

WSL LED Selectable Wraparound
Specification grade surface ceiling-mount wraparound fixture with a gasketed enclosure that resists dust and moisture ingress. Field adjustable wattage and color temperature let one SKU cover multiple lumen and CCT requirements, reducing specification error and stocked variants. Suited to food processing areas, walk-in coolers, parking structures, corridors, stairwells and storage rooms.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
WSL LED Selectable Wraparound
WSL LED Selectable Wraparound
Downloads & Resources
Product Overview
Features
- Injection-molded ABS housing, flame retardant to UL 94.
- Extruded acrylic (PMMA) lens.
- Gasketed enclosure resists dust and moisture ingress.
- Optical design delivers even lens luminance across the run.
- Available in 2' and 4' lengths.
- White finish (std.).
Mounting
- Surface ceiling mount.
LED
- Field adjustable wattage: four output steps selected by switch before installation.
- 2': 12W / 16W / 20W / 25W (1,500 to 3,000 lm).
- 4': 24W / 31W / 38W / 46W (3,000 to 5,500 lm).
- Field adjustable color temperature: 3000K / 3500K / 4000K / 5000K / 6500K, selected by switch before installation.
- Efficacy up to 125 lm/W.
- Factory default settings: 25W and 4000K (2'), 46W and 4000K (4').
Electrical
- Input voltage: 120-277 Vac, 50/60 Hz.
- 0-10V dimming.
- Power factor: 0.90.
- Driver efficiency: 88%.
- 12Vdc auxiliary output for sensor power.
Options
- Occupancy sensor (M).
- 4W emergency battery backup (EM4), shipped separately.
- Handheld sensor remote (RC), shipped separately. Requires sensor option.
Listing
- UL certified.
- Suitable for damp locations.
- 5 years limited warranty.
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
