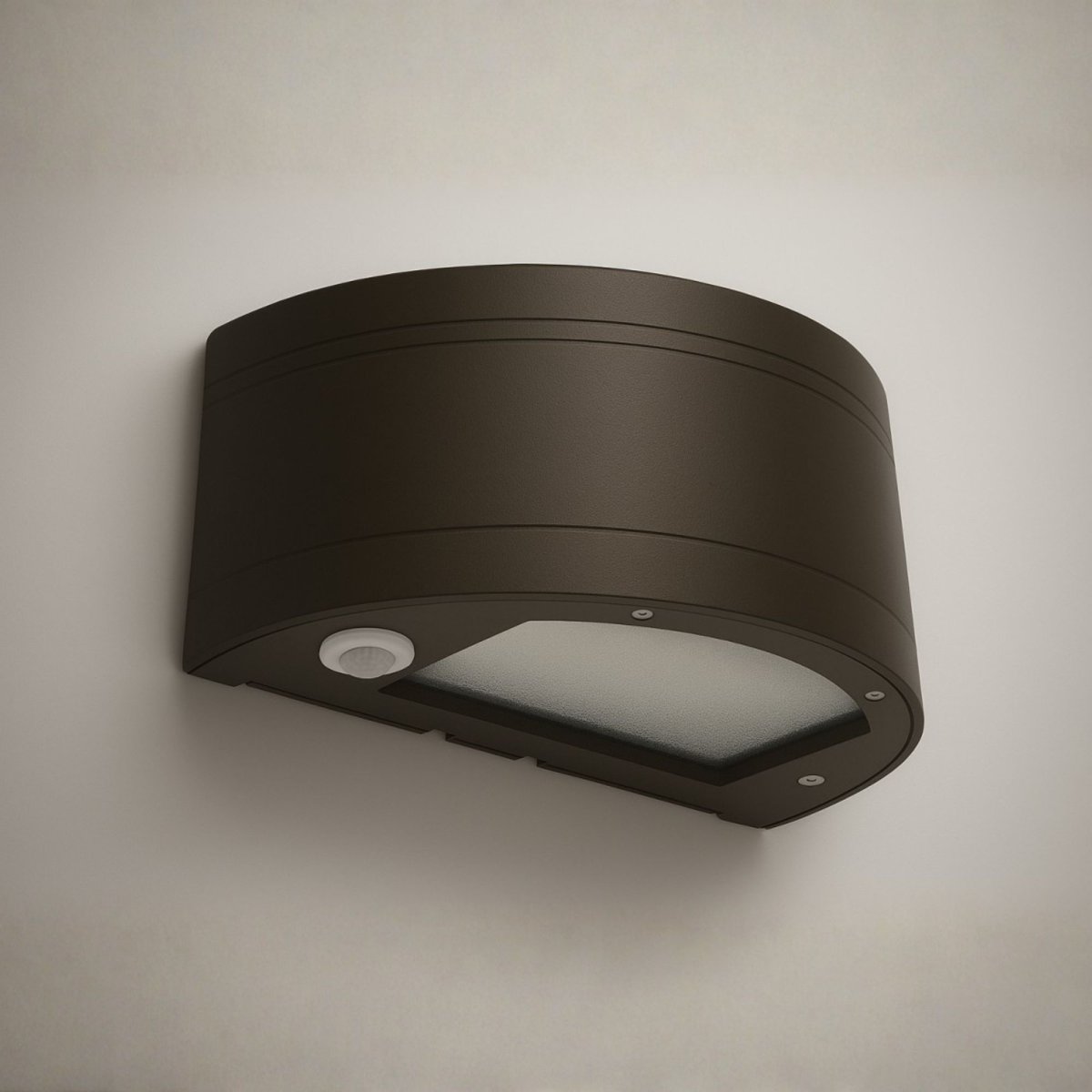

WML LED Half Sphere Wall Pack
The half sphere wall sconce downlight is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas. Wall mounting height requires between 8 feet and 15 feet below.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
WML LED Half Sphere Wall Pack
WML LED Half Sphere Wall Pack
Downloads & Resources
Product Overview
The half sphere wall sconce downlight is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas. Wall mounting height requires between 8 feet and 15 feet below.
Features:
- Full cut-off LED wall pack.
- Die-cast aluminum housing with UV stabilized powder coated finish.
- Architectural dark bronze finish standard.
- Down only and Up/Down distribution available.
- Optional occupancy sensor, EM, photocell.
Mounting:
- Wall mount (quick mount plate included).
- Easily installed on recessed junction boxes or direct mounts to the wall with feed thru conduit access.
- Distribution: Type2
Lens & Cover:
- Low glare providing visual comfort.
- Impact resistant tempered clear glass lens.
- Down only: Forward and Wide Throw available.
- Up/Down: Wide Throw for down only.
LED:
- CRI 70+ (optional 80CRI)
- Color Temperature: 3000/4000/5000(K)
- Down only: up to 119lm/W
- Up/Down: up to 151lm/W
- Field adjustable wattage for down unit only, default 72W.
Electrical:
- Input Voltage: 120V-277V, 50/60Hz (optional 480V available with step down transformer)
- Optional: 10KV surge protector
- Operating temperature: -40°F (-40°C) ~ 104°F (40°C)
Listing:
- UL/CUL listed.
- Listed to UL 1598 and UL 8750.
- DLC listed.
- Certified to ANSI C136.31-2010, 3.0G Vibration Testing.
- Suitable for wet location.
- 5 years limited warranty.
- BAA compliant (Buy American Act).
Specifications
Ordering Information
- DLC Premium Listed: Yes
- cULus Listed: Yes
Performance Data
- Casambi Ready®: Yes
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
