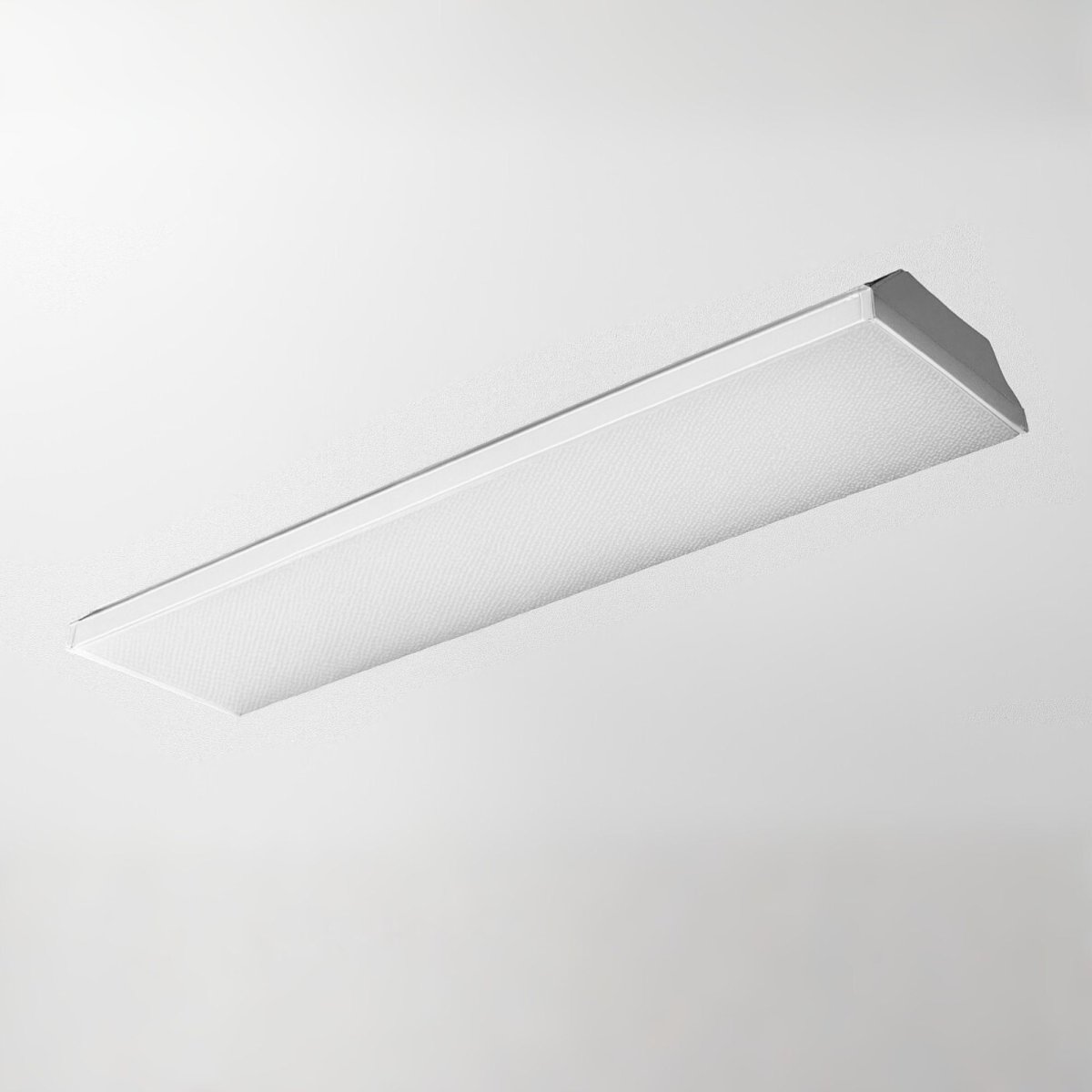

W-3G LED Ceiling-Mount Wraparound Fixture
Specification grade surface ceiling-mount standard wraparound fixture delivers diffuse moderate light. It is the economical, energyefficient, high performance and low-profile choice for small to medium size offices, retail spaces, classrooms and storage rooms.
Contact us for availability and pricing information.
Need assistance?
W-3G LED Ceiling-Mount Wraparound Fixture
W-3G LED Ceiling-Mount Wraparound Fixture
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
Specification grade surface ceiling-mount standard wraparound fixture delivers diffuse moderate light. It is the economical, energyefficient, high performance and low-profile choice for small to medium size offices, retail spaces, classrooms and storage rooms.
Features:
- Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
- Lens are capable of being hinged from either side for easy cleaning and service.
- Finish is high-gloss baked white enamel.
- Paint after fabrication.
Mounting:
- Surface mount.
- Compatible with most ceiling types.
- Optional V-Hook, Jack chain, aircraft cable and stem mount available.
LED:
- High quality array LEDs.
- LM80.
- Field Selectable Wattage: 54/45/36W
- Field Selectable Color Temperature: 3500/4000/5000 (K)
- Color Rendering Index: > 80
- Calculated L70: >100K hours
Electrical:
- High power factor electronic driver, operate from a 120~277 Vac input range, 50/60 Hz.
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature: -4°F(-20°C) ~ 122°F(50°C).
- Constant Current, Class 2.
Listing:
- UL listed(UL1598, UL8750)
- DLC listed (pending).
- Suitable for damp location.
- CEC Compliant EM (please contact for more information)
- 5 years limited warranty.
- ARRA compliant (optional).
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
