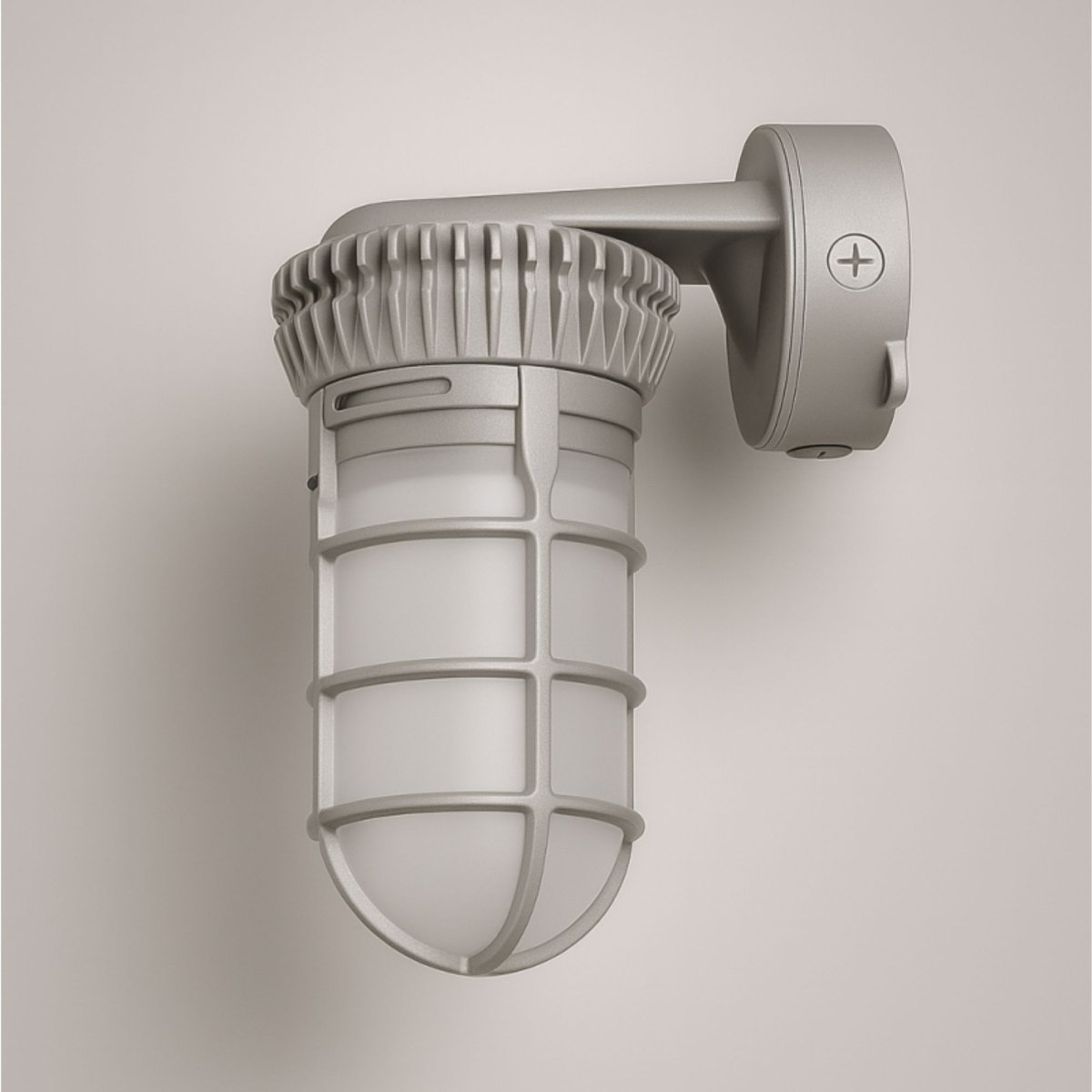

VTD-2G LED Vapor Tight Fixture
The outdoor and indoor LED die-cast aluminum vaportite fixtures are rated for wet locations. Ideal for both commercial and residential applications. Use on entrances, corridor, tunnel, service area, stairwell and walkways.
Contact us for availability and pricing information.
Need assistance?
VTD-2G LED Vapor Tight Fixture
VTD-2G LED Vapor Tight Fixture
Downloads & Resources
Product Overview
The outdoor and indoor LED die-cast aluminum vaportite fixtures are rated for wet locations. Ideal for both commercial and residential applications. Use on entrances, corridor, tunnel, service area, stairwell and walkways.
Features:
- Vaportite die-cast aluminum housing included junction box on vapor tights.
- Borosilicate glass (frosted finish) protective globe with thread-on cast aluminum guard.
- Gray powder paint finish standard on frame and housing.
- Housing has fully silicone rubber included to prevent any leakage from the outside.
Mounting:
- Wall mounting.
- Easily installs on recessed junction boxes or direct mounts to the wall with feed thru 1/2” conduit access.
- Suitable for wall mounting.
LED:
- CREE COB LED 11 watts.
- High efficiency nominal 5000K standard color +70 CRI. Total lumen output is 710lm and 65lm per watt.
Electrical:
- Input 12 watts.
- Output 250 mA.
- Fixture for ambient minimum operating temperature -30°C (-22°F)
- Input Voltage: 120V-277V, 50/60Hz
- LEDs have nominal 5000K standard color.
Listing:
- UL / CUL listed.
- Listed to UL 1598 and UL 8750.
- Suitable for wet Location.
- 3 years limited warranty.
- 5 years limited warranty (optional).
- ARRA compliant (optional).
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
