USP
USP LED Surface Mount Flat Panel

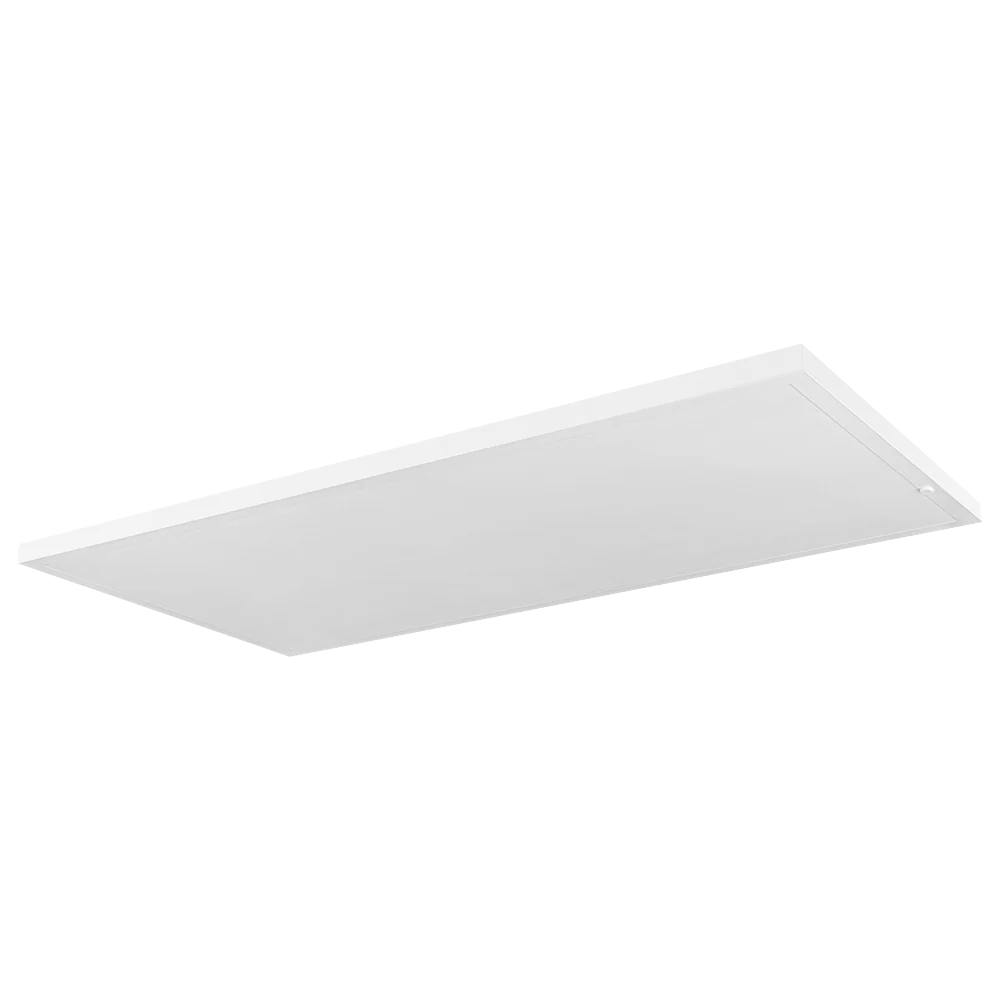

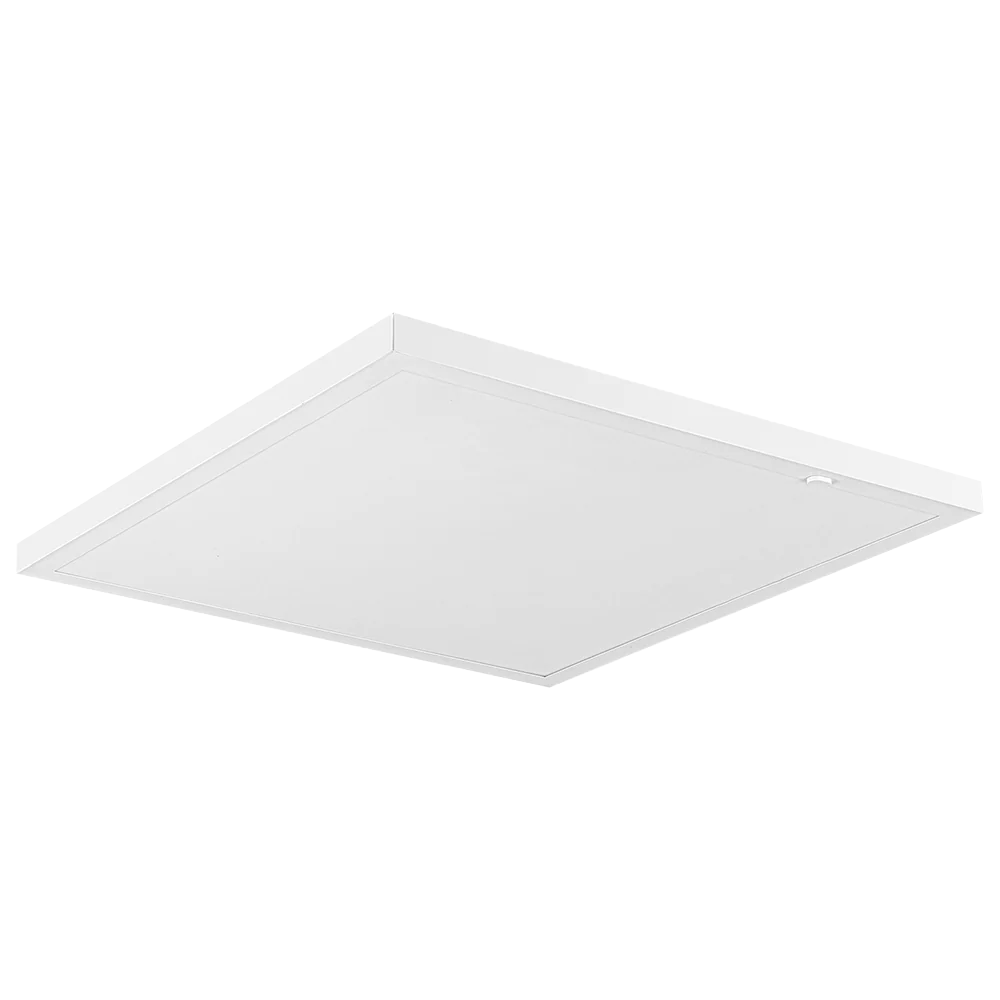

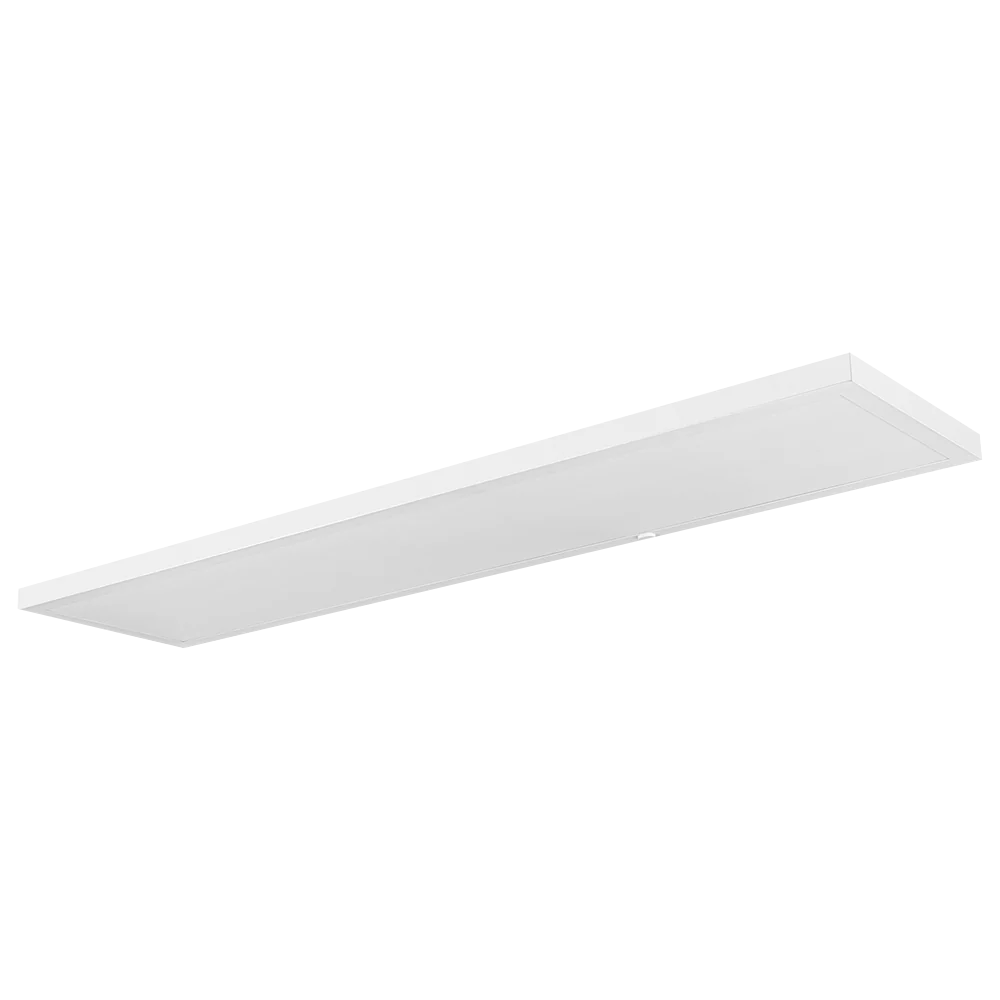

The USP is a surface mount field-selectable wattage and CCT LED flat panel with a flush, seamless design and 1.2" slim profile. Widely used for indoor spaces, it is excellent for offices, schools, hallways, supermarkets, stores, and healthcare applications.
Inventory and Lead Time
Contact us for availability and pricing information.
Need assistance?
Call us at
(866) 471-7711
USP LED Surface Mount Flat Panel
USP LED Surface Mount Flat Panel
Contact for Pricing
Downloads & Resources
Product Overview
Features
- Flush and seamless design with no protruding parts.
- 1.2" slim profile.
- White finished.
- Field adjustable Wattage and CCT.
- 2.5mm port base Plug and play sensor-ready with 12V Aux. dimming (std.).
- Wireless Bluetooth system and motion sensor (optional).
- Operating Temperature: -4°F (-20°C) ~ 113°F (45°C).
Mounting
- Ceiling surface mount.
LED
- Long-life, high-efficacy, micro-power LEDs.
- Lumen efficacy > 130 lm/W.
- Field adjustable wattage.
- Field adjustable color temperature: 2700 / 3000 / 3500 / 4000 / 5000 (K).
- CRI > 80.
- Beam angle: 113°.
- L70: > 50,000 hrs.
Electrical
- High power factor electronic driver, operates from a 100~277 Vac input range, 50 / 60 Hz.
- 0-10V Dimming (10%–100%).
- Power Factor: >0.9.
- THD: <20%.
Listing
- UL listed.
- UL 1598 suitable for damp locations.
- UL 8750 LED equipment in lighting products.
- DLC premium listed.
- 5 year warranty.
- ARRA compliant (optional).
- Bluetooth Mesh System available, please contact factory for more information.
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: ARRA only
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
