ULP-REC-RGBTW

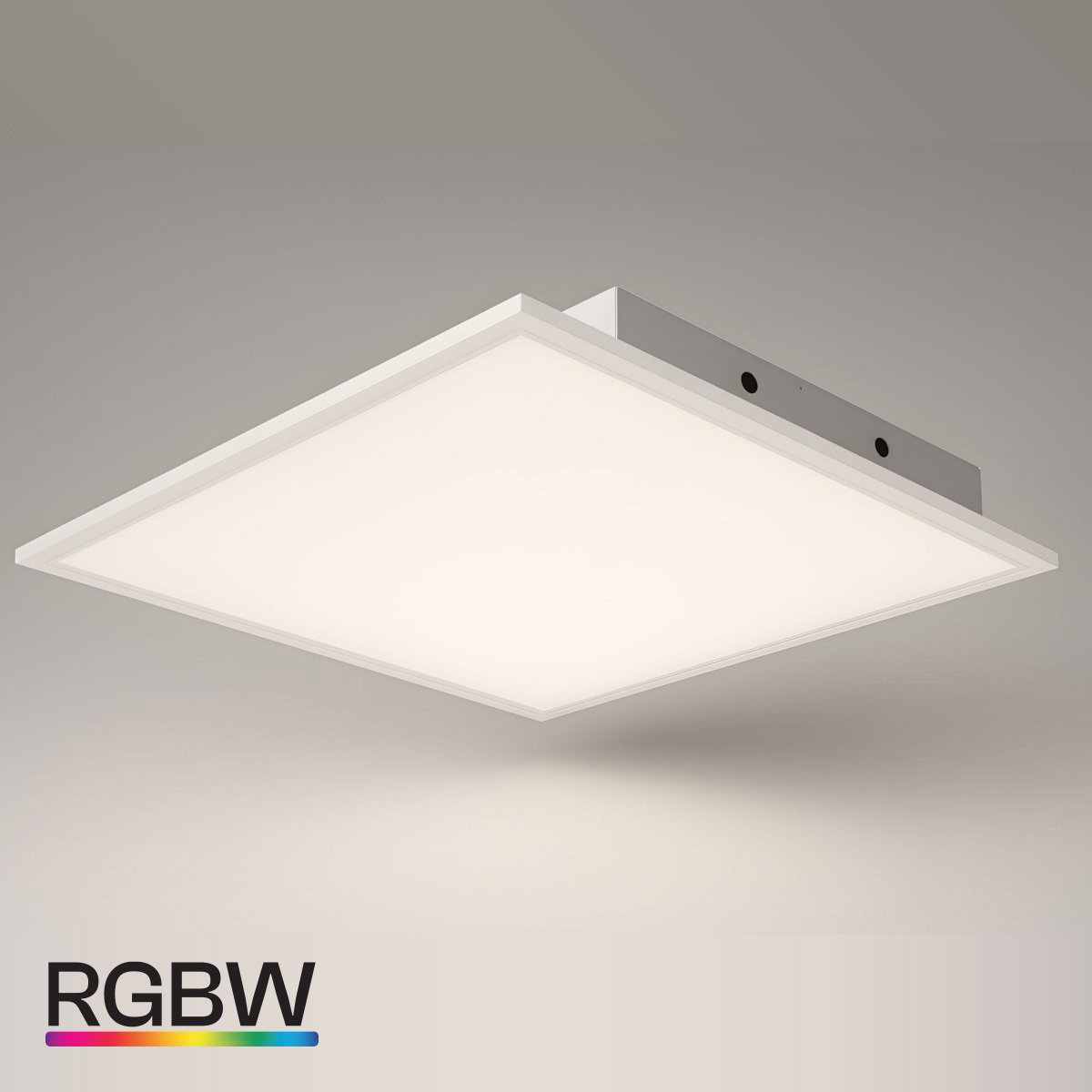

ULP RGB Tunable White Recessed Back-Lit Panel

RGB with tunable white LED back-lit panel with Bluetooth control via the Tuya or SmartLife app. The ULP-RGBW recesses into T-bar grid ceilings in 2' x 2' and 2' x 4' sizes, combining 16 million colors with tunable white (3500-5000K) for residential, commercial, healthcare, education, retail, entertainment, and office spaces.

Bluetooth® Compatible RGB Color-Changing Technology Tunable White Dimmable UL Certified
Inventory and Lead Time

Contact us for availability and pricing information.

Build your exact fixture & ordering code
Need assistance?
Call us at (866) 471-7711
Ordering Code
Make your selections to build the code

This code identifies your exact fixture configuration — include it in your quote request or purchase order.

Downloads & Resources

Spec Sheet

Complete product specifications and technical details

Remote Controller Instructions

RGB Panel Remote Controller instructions

Photometric IES Files

Photometric data and light distribution diagrams for lighting performance analysis.

Product Overview

Features

  • Aluminum frame in white finish.
  • Housing is designed to prevent debris and insect intrusion.
  • Unlimited lighting capacity with 16 million colors and tunable white (3500-5000K).
  • Bluetooth app control via Tuya or SmartLife.
  • Handheld RF remote included.
  • Anti-microbial coating (Matte Skye White) available on exposed frame (optional).

Mounting

  • Recessed in T-bar grid ceiling with integral earthquake clips for secure attachment.
  • Flange kit for hard ceiling, surface mounting kit, and aircraft cable suspension kit available (optional).

LED

  • Long-life, high-efficacy LEDs with ultra-uniform brightness.
  • 2' x 2': 35W, 4,400 lm
  • 2' x 4': 50W, 6,250 lm
  • Lumen efficiency: up to 125 lm/W (white LEDs).
  • Tunable white: 3500-5000K
  • CRI: 80 (white LEDs).
  • White LEDs: L70 > 100,000 hours.

Electrical

  • Dimmable.
  • 120-277V, 50/60Hz
  • Power Factor: >0.9, THD <20%
  • Operating temperature: -4°F to 122°F (-20°C to 50°C)

Listing

  • UL listed for dry and damp location.
  • LM-79, LM-80
  • 5 years limited warranty.
