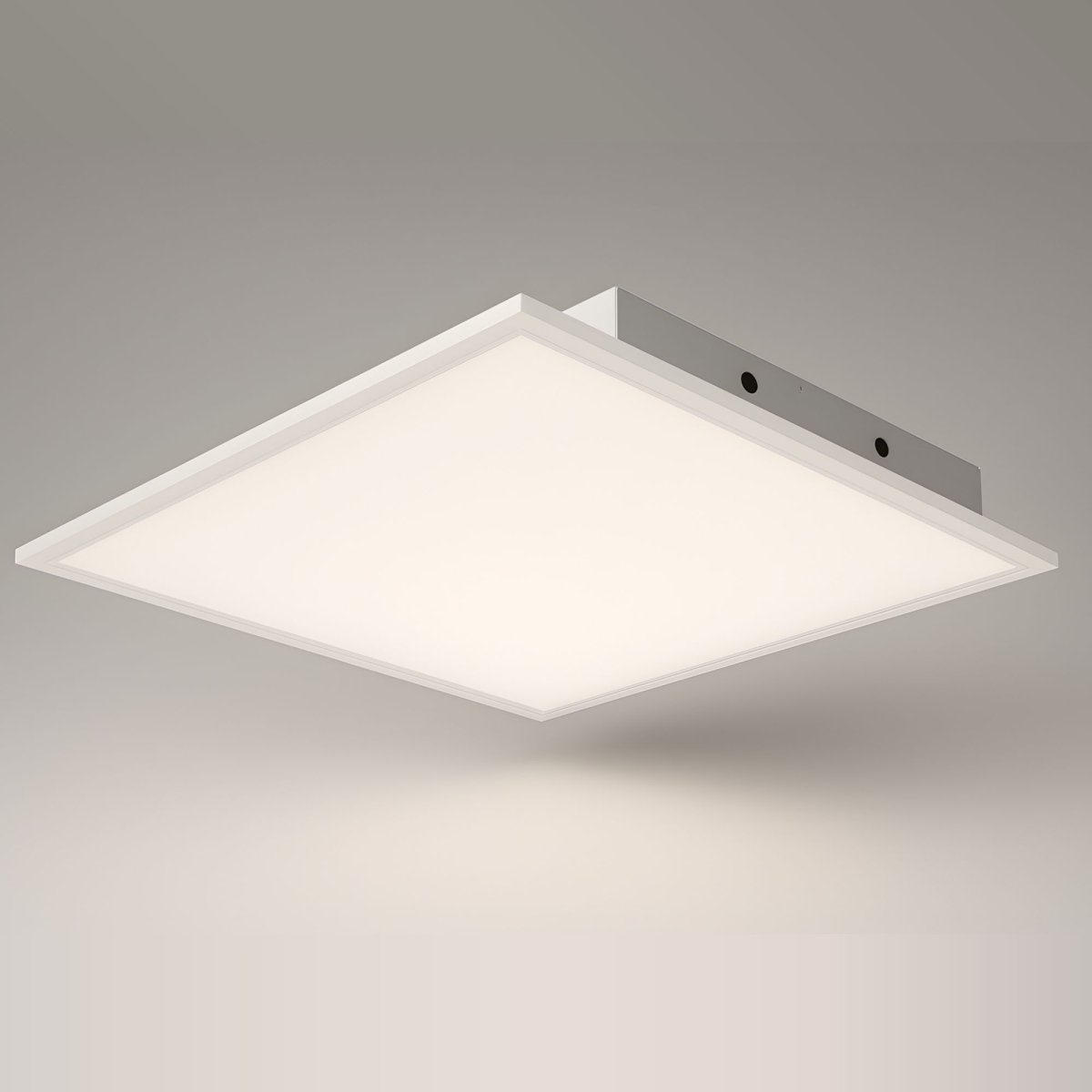

ULP-2G-5P-5C Recessed Lay-In Light
The LED Backlit Panel provides soft, even illumination for recessed T-grid ceiling applications. The latest in panel design, backlit panels provide more diffused illumination on the lens and are more efficient in lighting a space. CCT adjustable and wattage adjustable ensure the right products are available for any application.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
ULP-2G-5P-5C Recessed Lay-In Light
ULP-2G-5P-5C Recessed Lay-In Light
Downloads & Resources
Product Overview
The LED Backlit Panel provides soft, even illumination for recessed T-grid ceiling applications. The latest in panel design, backlit panels provide more diffused illumination on the lens and are more efficient in lighting a space. CCT adjustable and wattage adjustable ensure the right products are available for any application.
Features:
- 27-gauge(0.4mm) metal sheet housing with powder coated finish.
- Aluminum frame in white finish.
- Housing is free of holes to prevent debris/bug intrusion.
- Field adjustable wattage and color temperature.
- Polystyrene lenses over LEDs, PD diffuser.
Mounting:
- Recessed in T-bar grid ceiling with integral earthquake clips for secure attachment.
- Surface mount and suspension mount cable kit accessories are available. (optional)
LED:
- Lumen efficiency ≥ 128 lm/W
- Field adjustable color temperature: 3000/3500/4000/5000/6500 (K)
- 5CCT Adjustable options.
- Field adjustable wattage.
- 7 Powers selectable option.
- Power factor: >0.9 nominal.
- CRI: >80
- L70≥ 50,000 hours
Electrical:
- 0-10V dimming, down to 10%
- 120-277V, 120-347V, 50/60Hz
- Operating temperature: -4ºF to 104ºF (-20ºC to 40ºC)
- FCC title 47 CFR part 15 class B.
Listing:
- UL listed for dry and damp location.
- DLC listed.
- LM-79, LM-80
- 5 years limited warranty.
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
Specifications
Ordering Information
- DLC Listed: Yes
- cULus Listed: Yes
Performance Data
- Casambi Ready®: Yes
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
