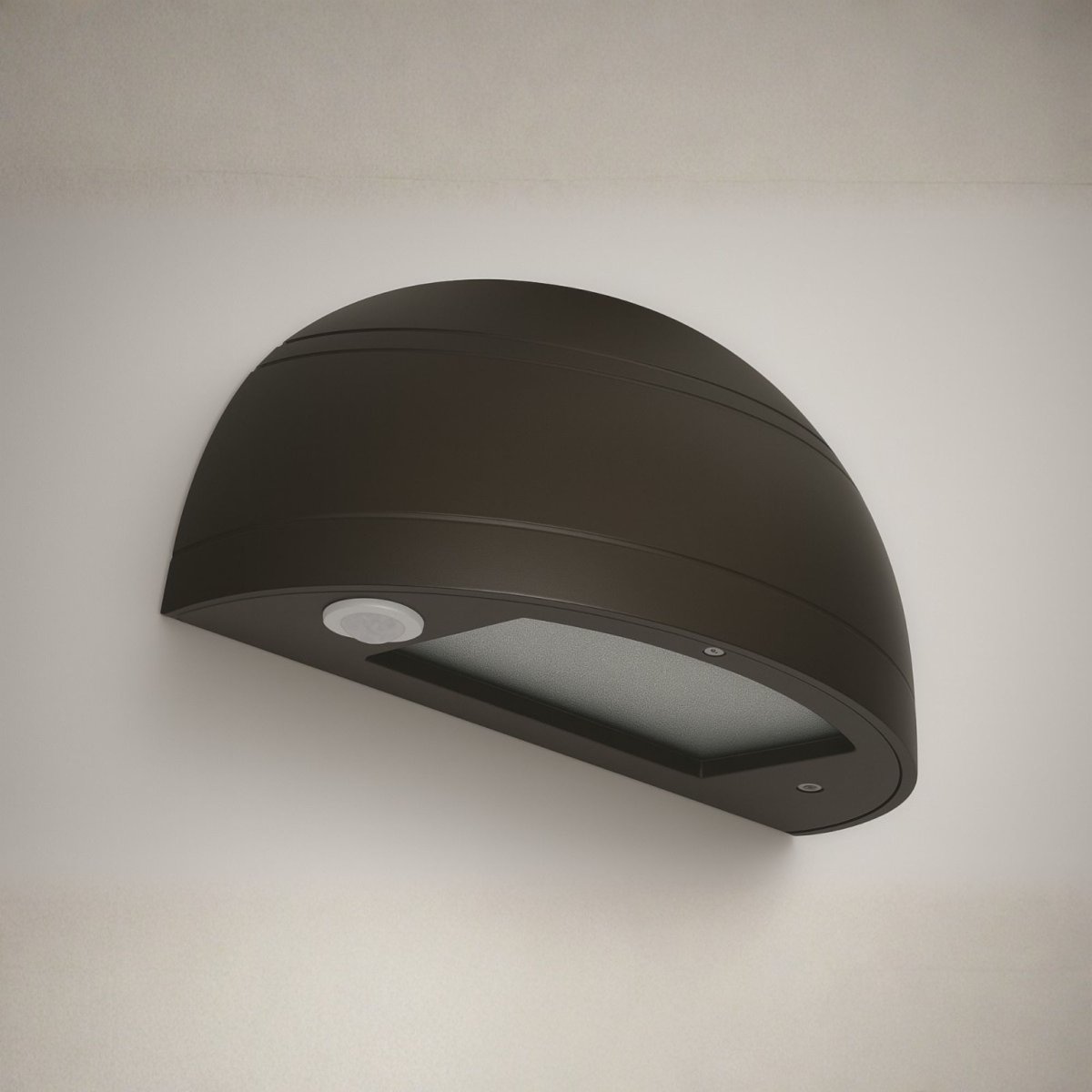

UDL7-2G LED Half Sphere Wall Sconce
The half sphere wall sconce down light is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas. Wall mounting height requires between 8 feet and 15 feet below.
Contact us for availability and pricing information.
Need assistance?
UDL7-2G LED Half Sphere Wall Sconce
UDL7-2G LED Half Sphere Wall Sconce
Downloads & Resources
Product Overview
The half sphere wall sconce down light is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas. Wall mounting height requires between 8 feet and 15 feet below.
Features:
- Full cut-off LED wall pack.
- Die-cast aluminum housing with UV stabilized powder coated finish.
- Architectural dark bronze finish standard. Custom color available upon request.
- Field adjustable wattage.
- Optional occupancy sensor, EM, photocell.
Mounting:
- Wall mount (quick mount plate included).
- Easily installed on recessed junction boxes or direct mounts to the wall with feed thru conduit access.
Lens & Cover:
- Low glare providing visual comfort.
- Impact resistant tempered clear glass lens.
- Forward Throw and Wide Throw available.
LED:
- CRI 70+
- Color Temperature: 4000/5000(K)
- Down only: up to 121 lm/W
Electrical:
- Input Voltage: 120V-277V, 50/60Hz (optional 480V available with step down transformer)
- Optional: 10KV surge protector.
Listing:
- UL/CUL listed.
- Listed to UL 1598 and UL 8750.
- DLC listed.
- Suitable for wet location.
- 5 years limited warranty.
- BAA compliant (optional).
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
