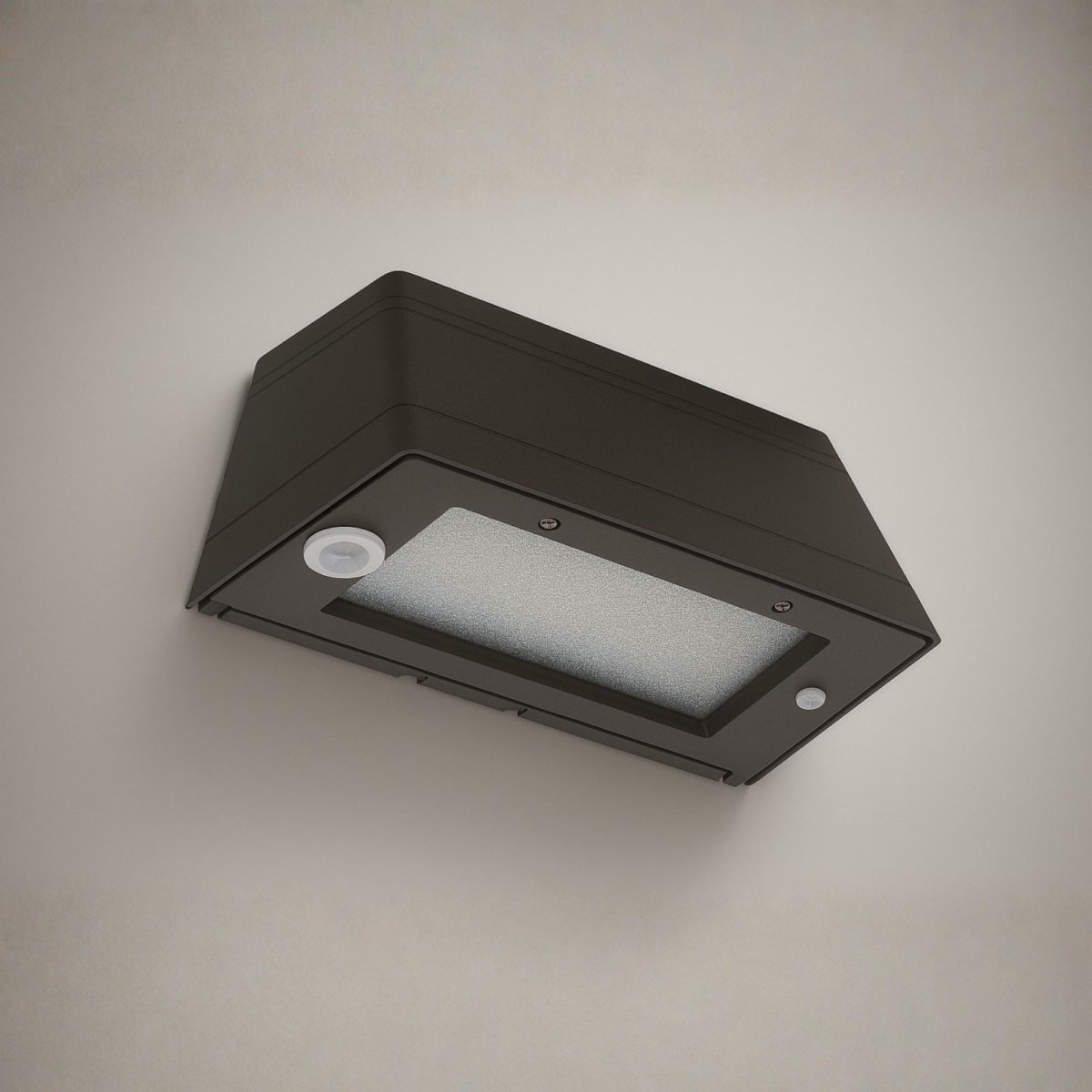

UDL5-2G LED Wall Pack
The trapezoid wall sconce down light is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas. Wall mounting height requires between 8 feet and 15 feet below.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
UDL5-2G LED Wall Pack
UDL5-2G LED Wall Pack
Downloads & Resources
Product Overview
The trapezoid wall sconce down light is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas. Wall mounting height requires between 8 feet and 15 feet below.
Features:
- Full cut-off LED wall pack.
- Die-cast aluminum housing with UV stabilized powder coated finish.
- Architectural dark bronze finish standard. Custom color available upon request.
- Field adjustable wattage.
- Optional occupancy sensor, EM, photocell.
Mounting:
- Wall mount (quick mount plate included).
- Easily installed on recessed junction boxes or direct mounts to the wall with feed thru conduit access.
Lens & Cover:
- Low glare providing visual comfort.
- Impact resistant tempered clear glass lens.
- Forward Throw and Wide Throw available.
LED:
- CRI 70+ (optional 80CRI)
- Color Temperature: 4000/5000(K)
- Lumen efficacy: up to 119 lm/W
- L70>60,000hrs
Electrical:
- Input Voltage: 120V-277V, 50/60Hz (optional 480V available with step down transformer)
- Optional: 10KV surge protector.
- Operating temperature: -40°F (-40°C) ~ 104°F (40°C)
- 0-10V dimming standard.
Listing:
- ROHS.
- UL/CUL listed for wet locations.
- Listed to UL 1598 and UL 8750.
- DLC premium listed.
- Suitable for wet location.
- Certified to ANSI C136.31-2010, 3.0G Vibration Testing.
- 5 years limited warranty.
- BAA compliant (optional).
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: BAA/BABA/ARRA options available
- DLC Premium Listed: Yes
- cULus Listed: Yes
Performance Data
- Wet Location Approved: Yes
- Casambi Ready®: Yes
