UC-LED

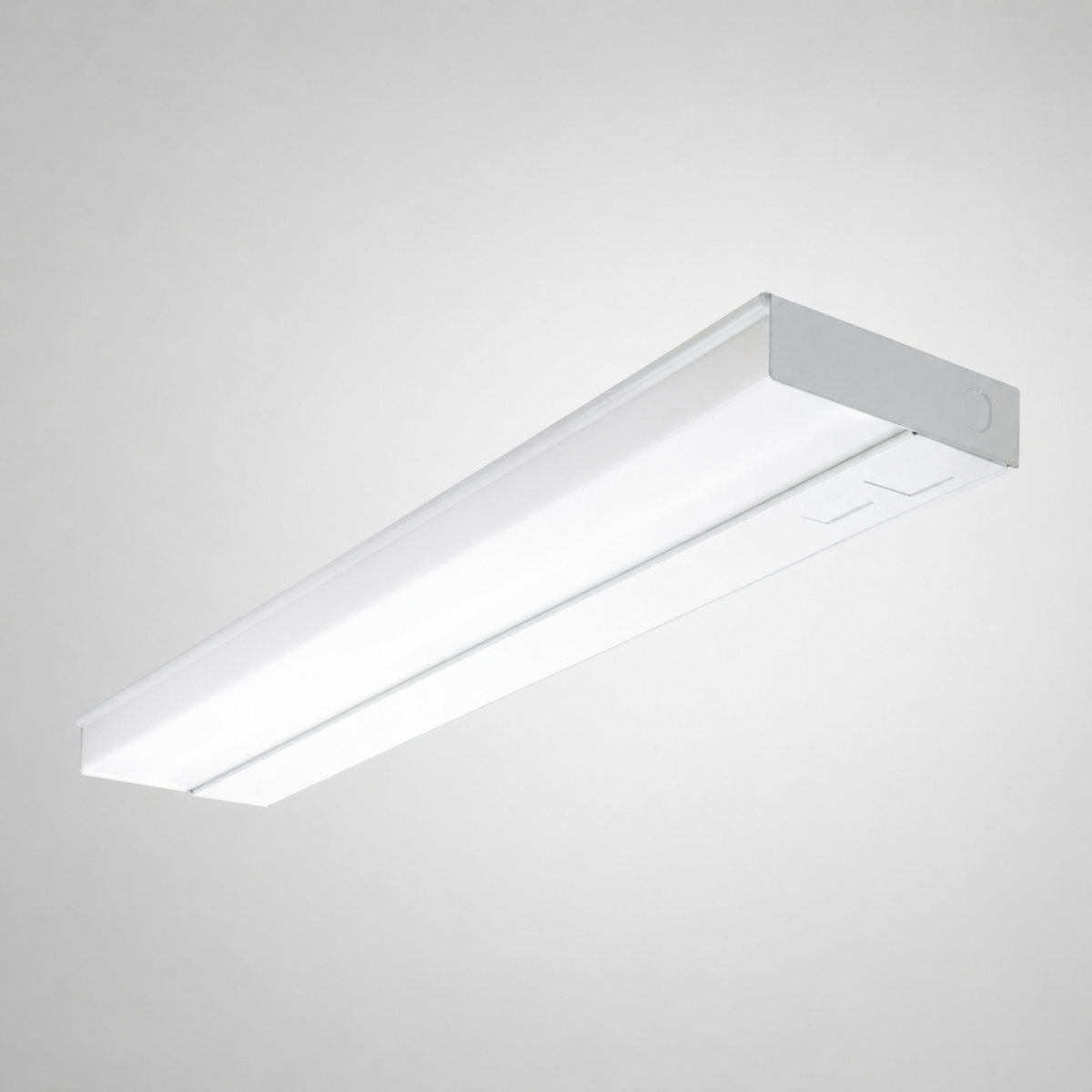

UC LED Undercabinet Light
BAA Compliant LED undercabinet luminaire at just 1" deep, the shallowest fixture in its class. The UC LED delivers efficient, even illumination for kitchens, hospitals, desk areas, and bathrooms.
Inventory and Lead Time
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Call us at
(866) 471-7711
Product Configurator
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
Ordering Code
Make your selections to build the code
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
UC LED Undercabinet Light
UC LED Undercabinet Light
Contact for Pricing
Downloads & Resources
Product Overview
Features
- Heavy gauge die formed steel housing.
- Baked white enamel or polyester powder coating for maximum reflectivity and durability.
- Extruded white snap-in acrylic lens for easy maintenance.
- Optional: grounded outlet, toggle switch, rocker switch, pull chain switch, and cord exits.
- Class A sound rating.
- RoHS compliant. BAA (Buy American Act) compliant.
Mounting
- Keyhole slots provided for easy surface mounting without entering ballast raceway.
- 1/2" KO provided in ends and bottom for supply connection.
LED
- Color temperature: 2700/3000/3500/4000/5000K.
- CRI >80 standard; CRI >90 optional.
- L70 LED life: 50,000 hours.
Electrical
- 120-277V voltage standard.
- UL Listed Class P LED driver.
- Power Factor: 0.90. THD <20%.
- 4kV built-in surge protection standard.
- Non-Consumer (Class A) for EMI/RFI (conducted and radiated).
Listing
- cULus listed for damp locations.
- BAA (Buy American Act) compliant.
- 5-year warranty on all electronics and housing.
Specifications
Ordering Information
- cULus Listed: Yes
Performance Data
- Casambi Ready®: Yes
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
