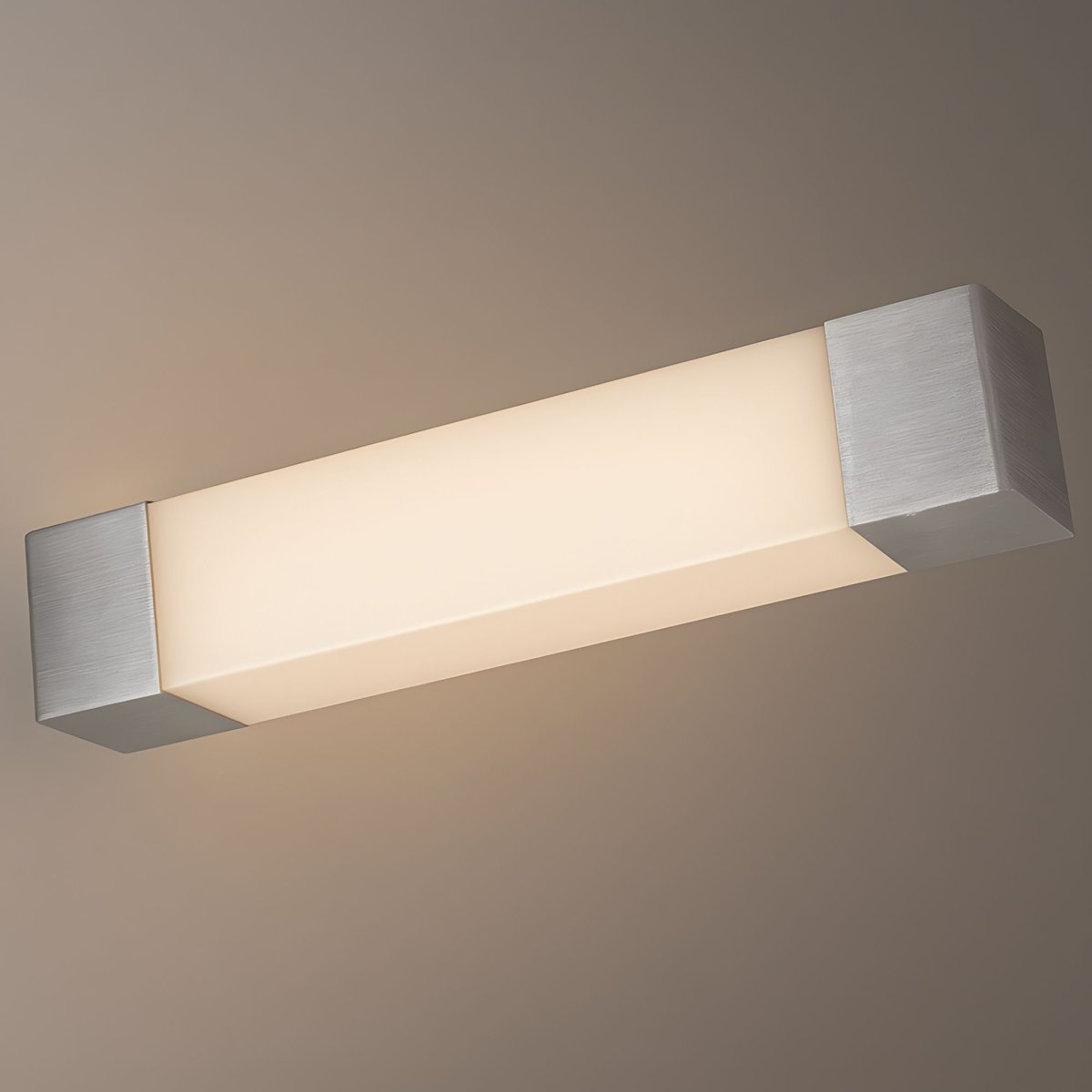

SVL LED Wall Mount Light
Wall or ceiling corridor light. Acrylic diffuser with metal end caps. Ideal for use in public areas, corridors, locker rooms, laundry, bathrooms and work areas.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
All available lumens, wattage, CCT, options, etc.
Use our product configurator tool to build the custom characteristics of your required product to get a price and availability for that model
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
SVL LED Wall Mount Light
SVL LED Wall Mount Light
Downloads & Resources
Product Overview
Wall or ceiling corridor light. Acrylic diffuser with metal end caps. Ideal for use in public areas, corridors, locker rooms, laundry, bathrooms and work areas.
Features:
- Aluminum end caps and an aluminum body.
- Extruded matte white acrylic diffuser.
- Natural aluminum finish as standard (AL)
Mounting:
- Surface wall mounting.
- Horizontal or vertical mount.
- Provided a universal mounting back for a standard 3” plaster ring or J-box.
LED:
- Color Temperature: 2700/3000/3500/4000/5000 (K).
- LED Module: High efficiency up to 140 LPW.
- Service life: Greater than 60,000 hours(L70) minimizing maintenance frequency.
- Poke in wire connectors.
- Color variation within 3-step MacAdam ellipse.
Electrical:
- High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
- Dimming Control: 0-10V 10%~100%.
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature: -22°F (-30°C) ~ 122°F (50°C).
- Constant Current, Class 2
ADA Compliant:
- ADA requires all fixtures below 68” to have a maximum projection of 4”.
Listing:
- UL listed and labeled.
- Listed to UL 1598 and UL 8750.
- Suitable for damp locations.
- ADA compliant.
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
Specifications
Ordering Information
- Compliance: BAA/BABA Compliant
- BAA, BABA or ARRA Compliant:
Performance Data
- Vive by Lutron Compatible: Yes
- Casambi Ready®: Yes
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
