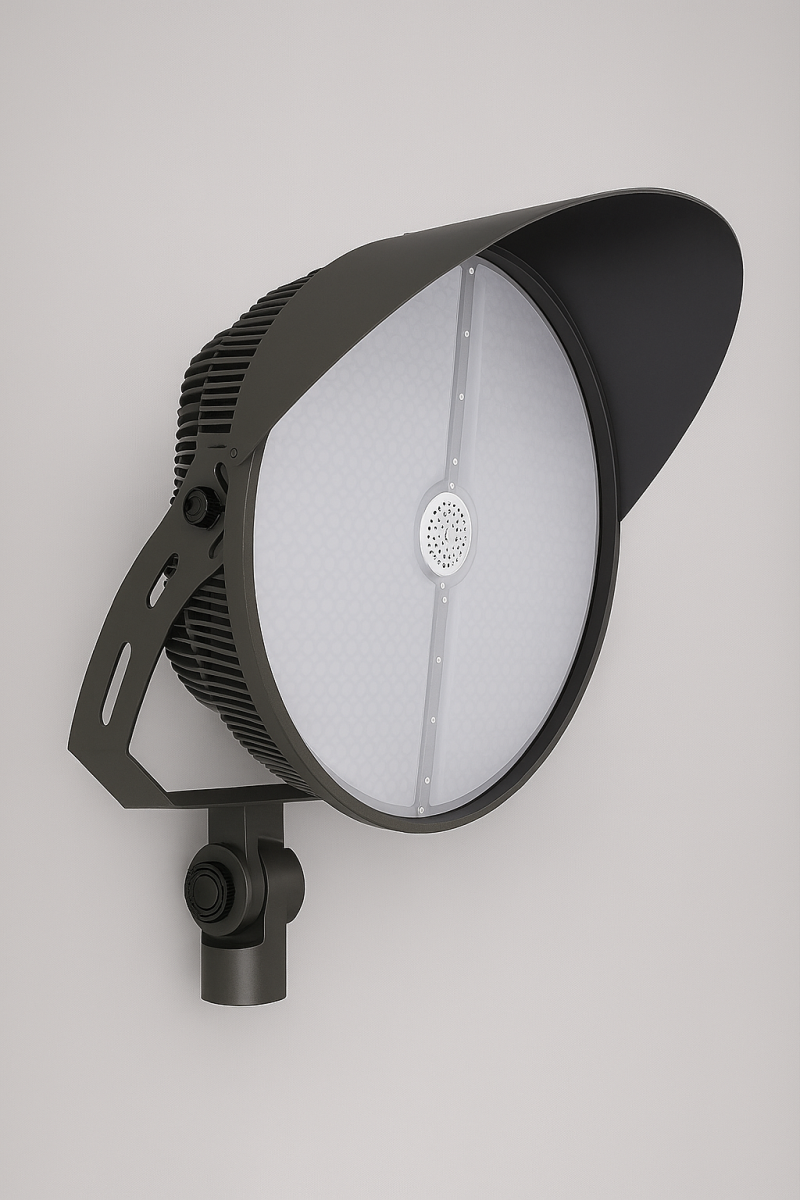

STL-4G Stadium Projector

Features:

- High impact resistance, meeting IK10.
- Low EPA design, anti 17-level wind power.
- High vibration resistance, meeting 3G standards.
- Aluminum powder coated fixture.
- High protection level up to IP66.

Mounting:

- Standard yoke mount is for horizontal high mast mount adjustable 270°.
- Surface trunnion mount (STR) is optional for wall / ceiling mount, adjustable 90°.
- Slip Fitter (SF) is optional, only available on 240-500LED model. Adjustable angle of 90° max. for 2-3/8” pole.
- Hook mount (HK) is optional, O-ring is provided.

Optic:

- 240LED - 500LED: 20°/40°/60°/90°
- 600LED - 750LED: 21°/30°/40°/60°
- 960LED - 1440LED: 21°/30°/40°/60°
- Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.

LED:

- Color Rendering Index: >70 is standard.
- Color Temperature: 4000/5000/5700K
- Estimated 50,000-hour LED lifespan.

Electrical:

- Standard with 0-10V dimming driver(s).
- Universal 120-277 VAC or 347-480 VAC input voltage.
- Addtional 20kA & 20kV Surge Protector as standard.
- THD: ≤20%
- Ambient operating temperature: -40°C to 40°C (-40°F to 104°F)

Listing:
- ETL listed for wet location.
- DLC listed.
- IP66 rated.
- 5 years limited warranty.
- IK10 rated.
- 50,000 hours LED lifespan.
- ARRA compliant (optional).
