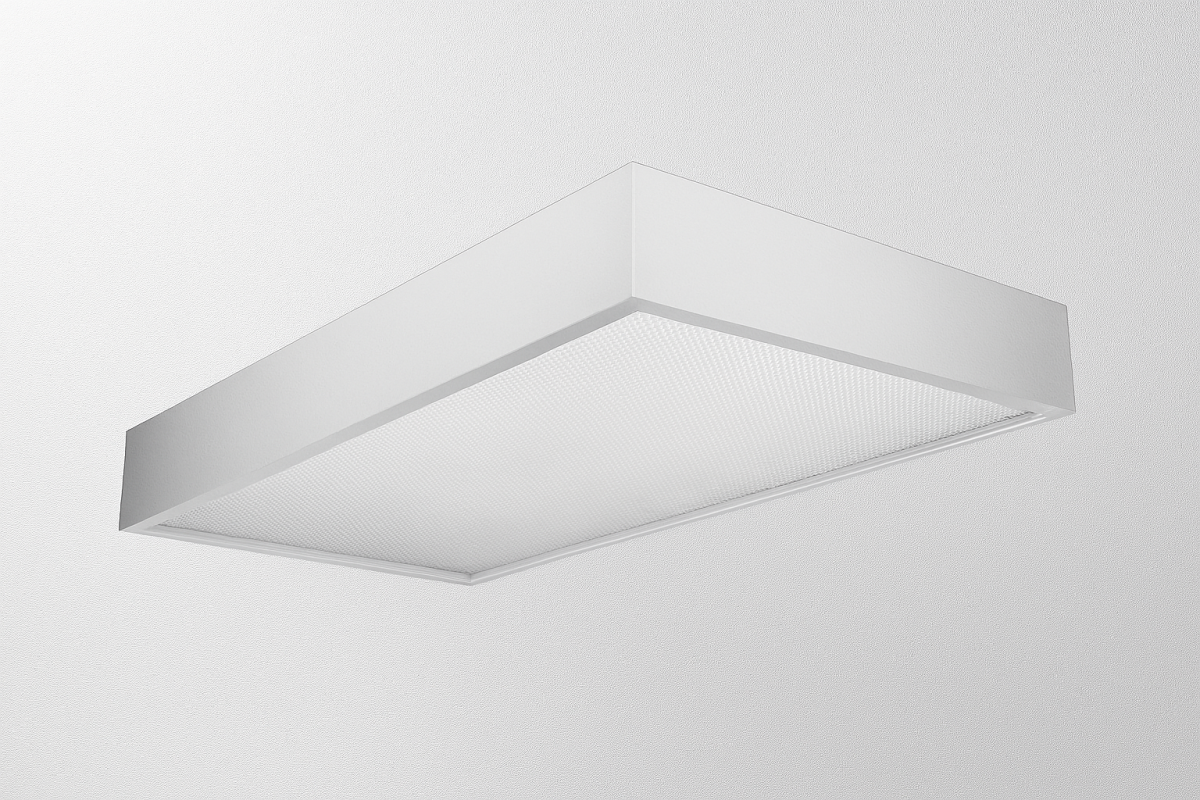

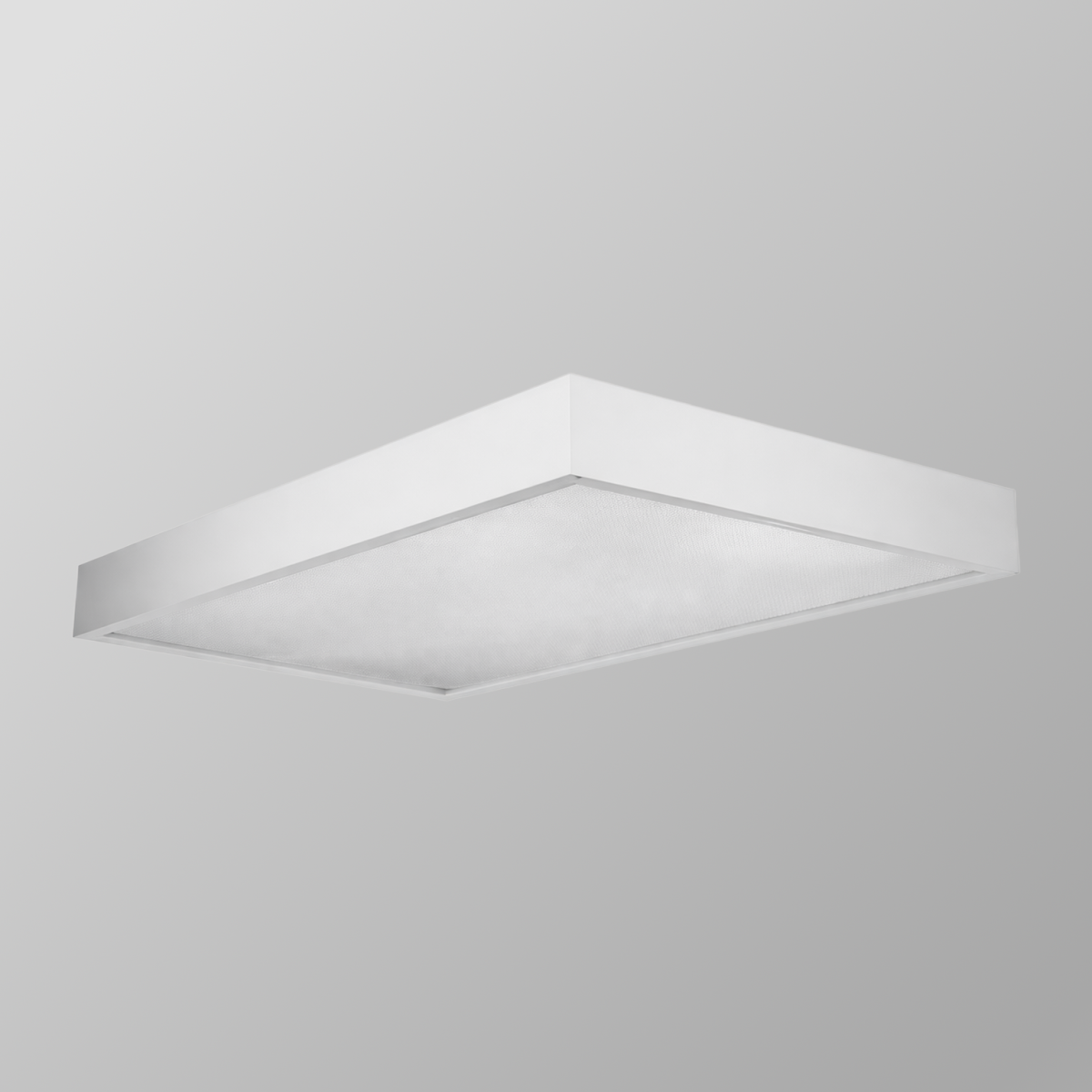

SM LED Surface Mount Fixture

Features:

- Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
- 100% acrylic, clear prismatic pattern #12 lens with nominal 0.100” thickness. Steel door frame allows easy lens replacement without tool.
- Unique door frame design delivers a premium extrude appearance.
- Door latches and hinges from either side.
- Standard door is without gasket flush steel with sturdy tee hinges and opposing, rotary action cam latches. Also available fully gasket door.
- Smooth edges for easy handing.
- Finish is high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.-
- Paint after fabrication

Mounting:

- Pendant or surface mounting.
- End to end row mounting or single unit installation for both surface and stem mounting.
- 1’x’4’ fixture requires at least 2 stems for stem mounting. 2’x2’ , 2’x4’ fixtures require at least 4 stems for stem mounting.
- Compatible with most ceiling types.

LED:

- High quality array LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Color Rendering Index: > 80 Ra.
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours

Electrical:

- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- Generic : 0-10V 10% dim. (GR)
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

Listing:
- UL/CUL listed and labeled.
- Listed to UL 1598 and UL 8750.
- Suitable for dry and damp locations.
- CEC Compliant EM (please contact for more information).
- ARRA compliant (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
