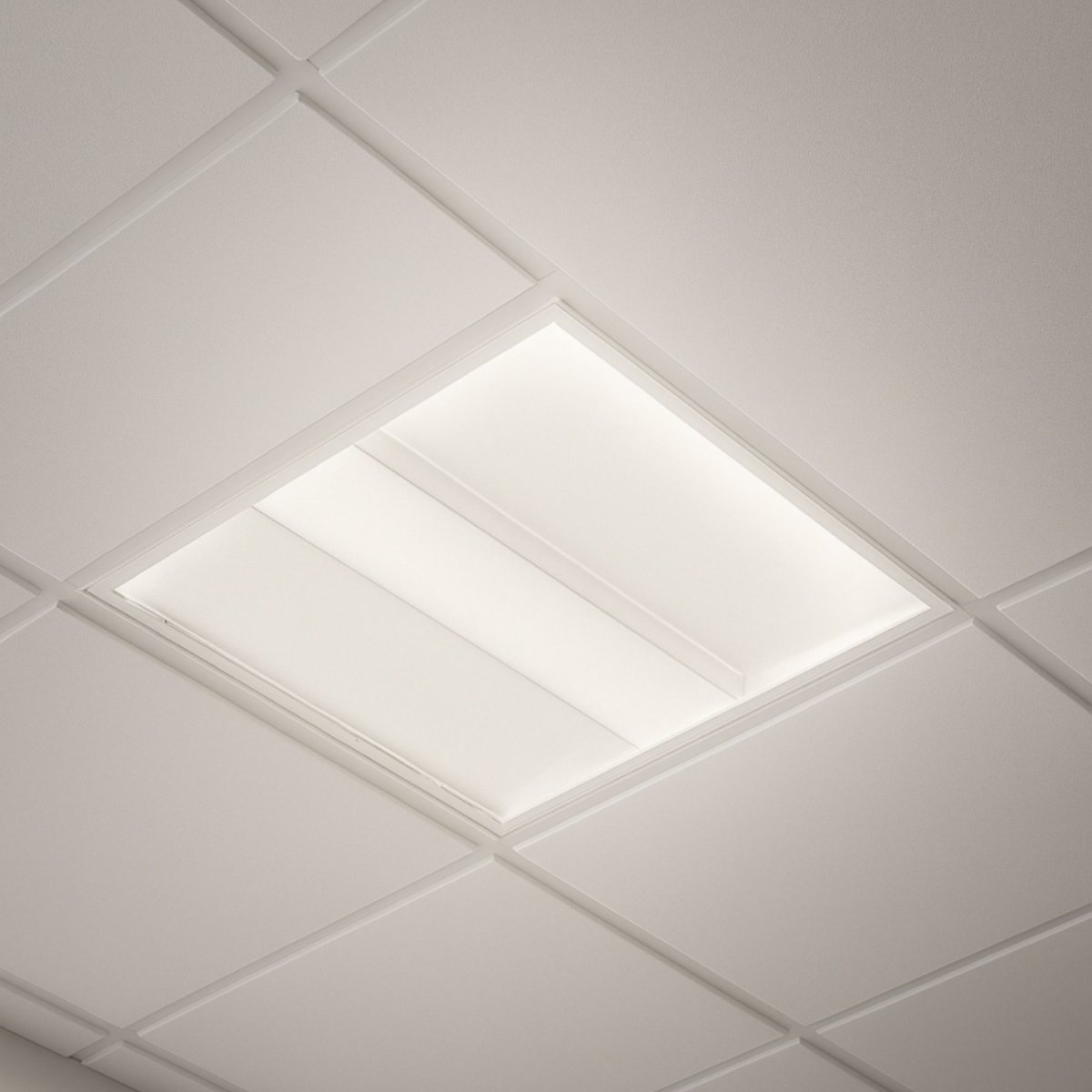

SCT LED Recessed Lay-In Light

Features:

- Die-formed, cold-rolled, heavy-gauge steel housing construction provides durability and strength.
- Standard steel door frame allows easy lens replacement without tool.
- Unique door frame design with tri-panel lens deliver a premium appearance. Smooth edge for easy handing.
- Door steel latches provide easy, secure closure.
- Painted parts finished with high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
- Available for Chicago Plenum rated as an option.
- UGR<19 lens. (optional)
- Paint after fabrication.

Mounting:
- Recessed ceiling mount.
- Compatible with most ceiling types.
- Field installed flange kit is optional.

LED:

- High quality array LEDs.
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Color rendering Index: >80 (standard), >90 optional.
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours

Electrical:

- High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- 0-10V 10% dim. standard.
- Minimum starting temperature: -4°F (-20°C) ~ 122°F (50°C).

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

Listing:
- UL/CUL listed and labeled.
- Listed to UL 1598 and UL 8750.
- Suitable for damp locations.
- CEC Compliant EM (please contact for more information).
- ARRA compliant. (optional)
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Recessed Luminaires, Type IC
