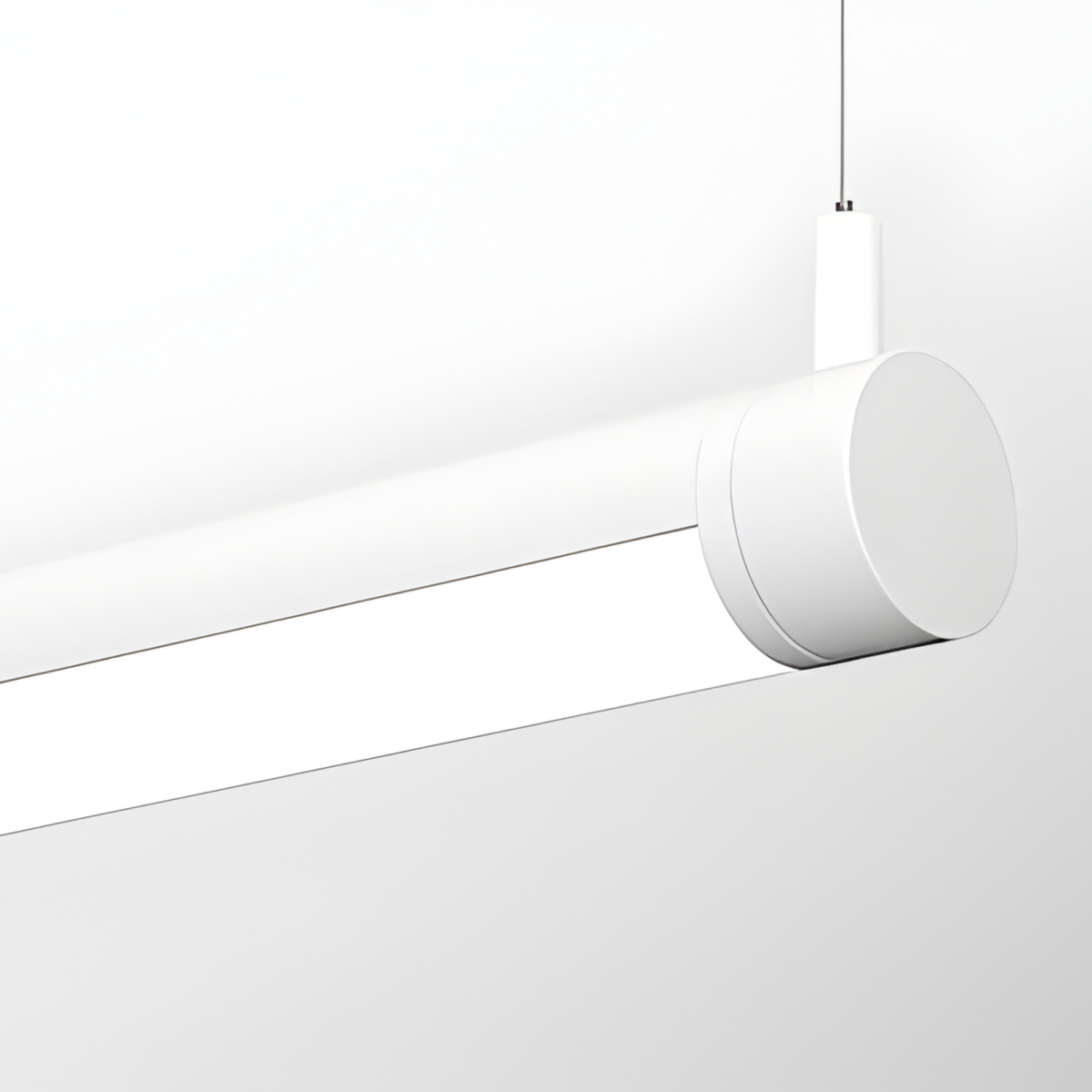

Rondo 2 Round Linear Pendant Light
Rondo 2 is a featured Architectural Linear fixture. Housing is formed by extruded aluminum with a highly reflective die-formed white painted steel reflector. The click-in acrylic lens has a matte finish and a diffuser which is removable for maintenance. It is used for multiple applications such as commercial, general office, banking, retail and educational environments.
Contact us for availability and pricing information.
Need assistance?
Rondo 2 Round Linear Pendant Light
Rondo 2 Round Linear Pendant Light
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
Rondo 2 is a featured Architectural Linear fixture. Housing is formed by extruded aluminum with a highly reflective die-formed white painted steel reflector. The click-in acrylic lens has a matte finish and a diffuser which is removable for maintenance. It is used for multiple applications such as commercial, general office, banking, retail and educational environments.
Mounting:
- Pendant.
- Wall mount.
LED:
- High quality array LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K).
- Color Rendering Index: > 80 (optional >90)
- Nominal Lamp Life: 100,000 hours.
- Reported L70 hours: +60,000 (55°C).
Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- 0-10V dimmable driver as standard.
- 0-10VDC dimming 1%~100%.
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).
Finish:
- Standard powder-coat textured white painted finish on exposed trim, consult factory for custom colors.
- Comes with snap-in acrylic lens as standard.
Listing:
- UL / CUL listed.
- UL listed for dry & damp location.
- Assembled in USA (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
