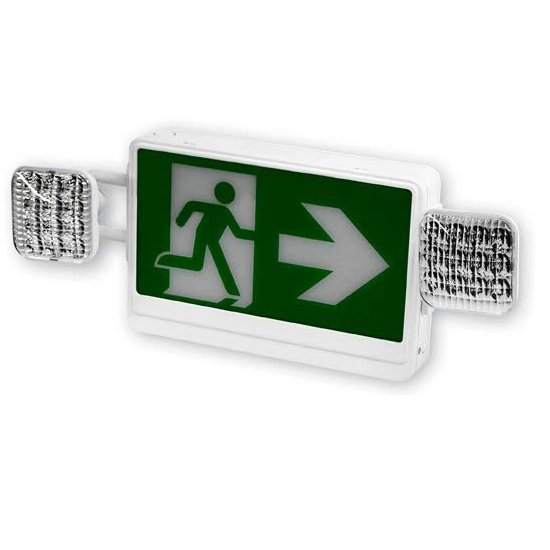

RLEC Running Man LED Exit & Emergency Combo
Running man pictogram exit sign and LED emergency lighting combined in one low-profile unit. The RLEC pairs a field-selectable, universal directional legend with adjustable ultra-bright white LED lamp heads, providing reliable emergency egress illumination for commercial, institutional, and damp location applications.
Inventory and Lead Time
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Call us at
(866) 471-7711
Product Configurator
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
Ordering Code
Make your selections to build the code
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
RLEC Running Man LED Exit & Emergency Combo
RLEC Running Man LED Exit & Emergency Combo
Contact for Pricing
Downloads & Resources
Product Overview
Features
- All-LED running man pictogram exit sign with integrated LED emergency lighting heads in a low-profile combination unit.
- Long lasting, efficient ultra bright white LED lamp heads.
- 1 watt (8 LEDs x 0.125W) per head.
- High performance chrome-plated metallized reflector and plastic lens for optimal light distribution.
- Adjustable LED lamp heads provide optimal center-to-center spacing.
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant thermoplastic housing in white or black finish.
- Standard lumen: 44.6 lumen output per head (89.2 lumen total).
- HL option: 66.9 lumen output per head (133.8 lumen total).
Options
- HL: 12-LED heads provide increased center-to-center spacing (1.5W per head).
- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
- RC: Remote capacity of 3.0 watts standard. RLEC-RC supports 3W–4W remote capacity and is compatible with the RHSLED and RH16LED remote head families.
Mounting
- EZ-snap mounting canopy included for top or end mount.
- Universal knock-out pattern on back plate for wall mount.
- Field selectable, universal directional indication provided with three (Left, Right and No Arrow) pictogram legends.
- Universal for single or double face.
Electrical
- Dual 120/347 voltage.
- Input: 4.4W at 120V and 347V (0.035A at 120V, 0.013A at 347V).
- Charge rate / power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
- 9.6V long life, maintenance-free, rechargeable NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to the LED board and LED lamp heads for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger recharges a discharged battery in 24 hours.
Warranty / Listing
- Five year warranty on all electronics and housing. Battery prorated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- CSA listed for damp locations (0°C – 50°C).
- Meets or exceeds CSA C22.2 No. 141.10 standard requirements for emergency lighting equipment.
