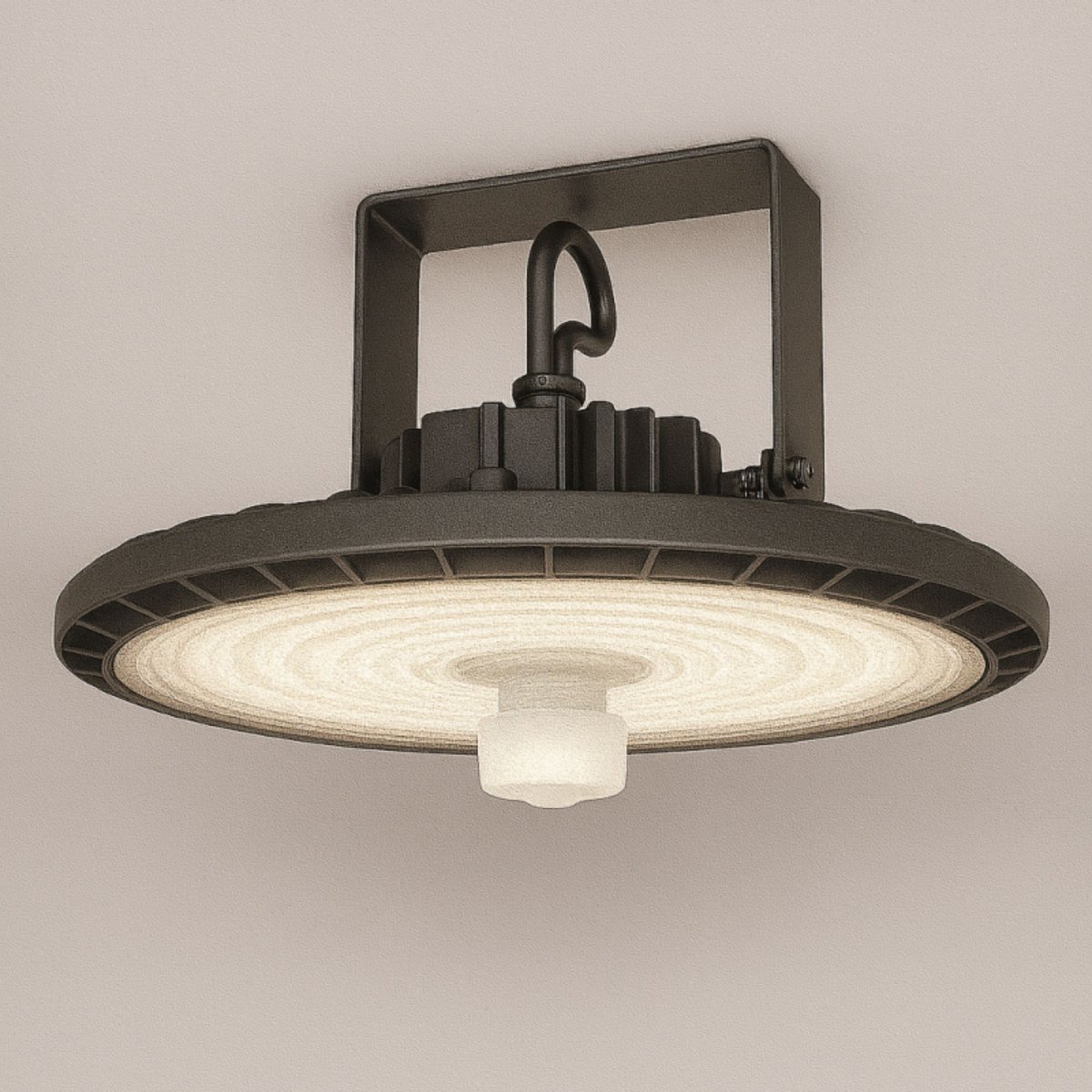

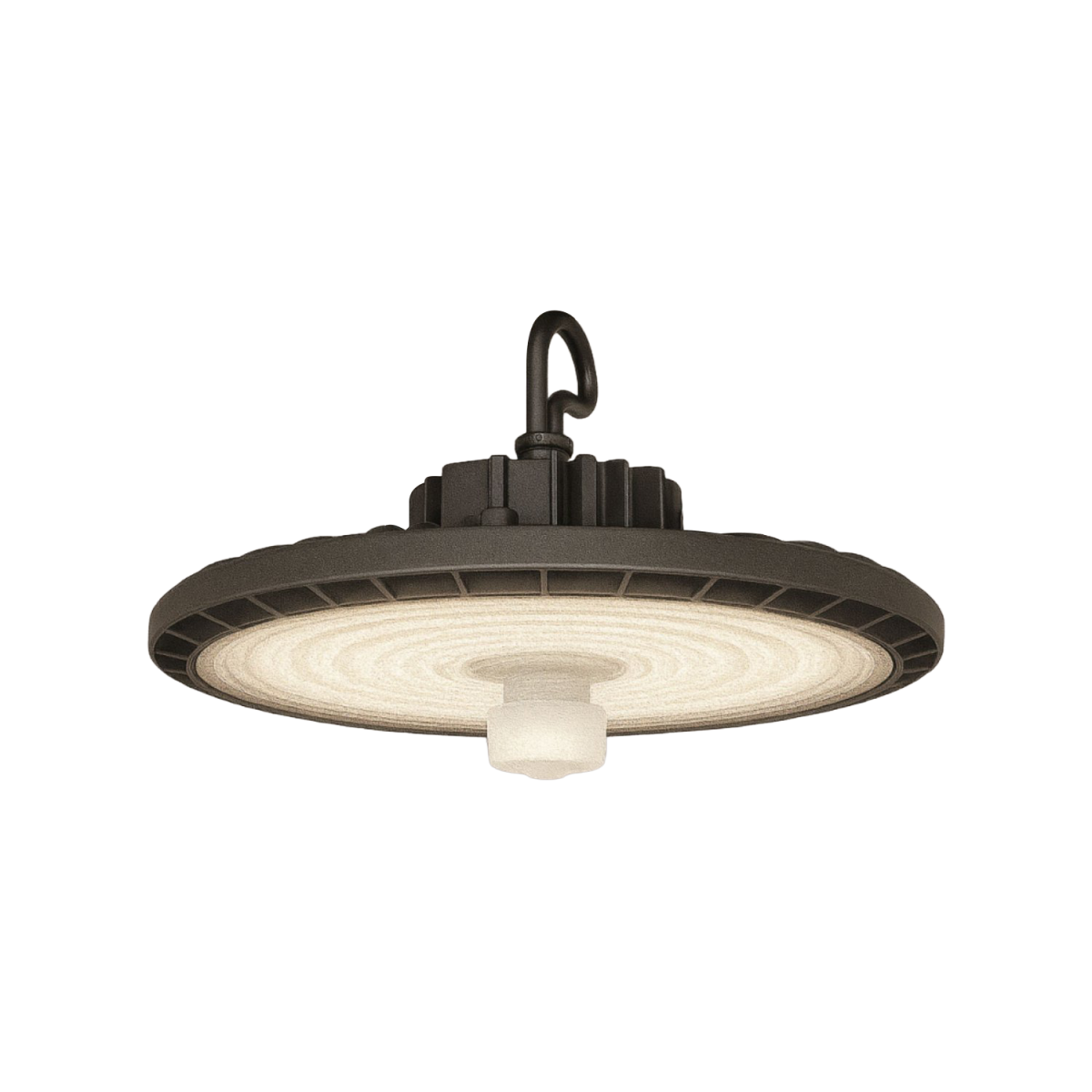

RHB-3G Round UFO LED High Bay
The RHB-3G UFO high bay is a premium round LED high bay luminaire, designed to illuminate a wide variety of settings including commercial, industrial and retail such as warehouse, manufacturing plants, logistic center and etc.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
RHB-3G Round UFO LED High Bay
RHB-3G Round UFO LED High Bay
Downloads & Resources
Product Overview
The RHB-3G UFO high bay is a premium round LED high bay luminaire, designed to illuminate a wide variety of settings including commercial, industrial and retail such as warehouse, manufacturing plants, logistic center and etc.
Features:
- Rugged die-cast housing with corrosion-resistant powder coating for effective protection.
- Black finish standard.
- Motion sensor is optional.
- Increase energy savings with optional sensors.
- Optional emergency function for emergency needs.
Mounting:
- Hook mount, pendant(3/4”) mount and surface mount(TR) available.
- 30” safety cable included as standard.
LED:
- Scalable Lumen Packages from 14,500 to 36,000 Lumens replaces to 400W and Higher watt fixture.
- CRI >70
- Efficacy up to 180 lm/W.
- Color temperature: 4000K or 5000K selectable
Optics:
- Anti-UV prismatic translucent lens is designed to shape the light uniformity and controls the glare light.
Electrical:
- 0-10V dimming standard for a dimming range of 100% to 10%.
- Power factor >0.90, 6KV surge protection.
- 120-277V, 50~60Hz standard.
- Operating temperature: -40°C to 45°C (-40°F to 113°F).
- Comes with 6ft SJTW 3-wire cord as standard.
Listing:
- UL/cUL listed for wet location.
- 5 years limited warranty.
- DLC Premium listed.
- 50,000 hours LED lifespan based on IES LM-80 results and TM-21 calculations.
- ARRA compliant. (optional)
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: ARRA only
- DLC Premium Listed: Yes
- cULus Listed: Yes
Performance Data
- Wet Location Approved: Yes
- Vandal Resistant: Yes
- Casambi Ready®: Yes
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
