RFDL

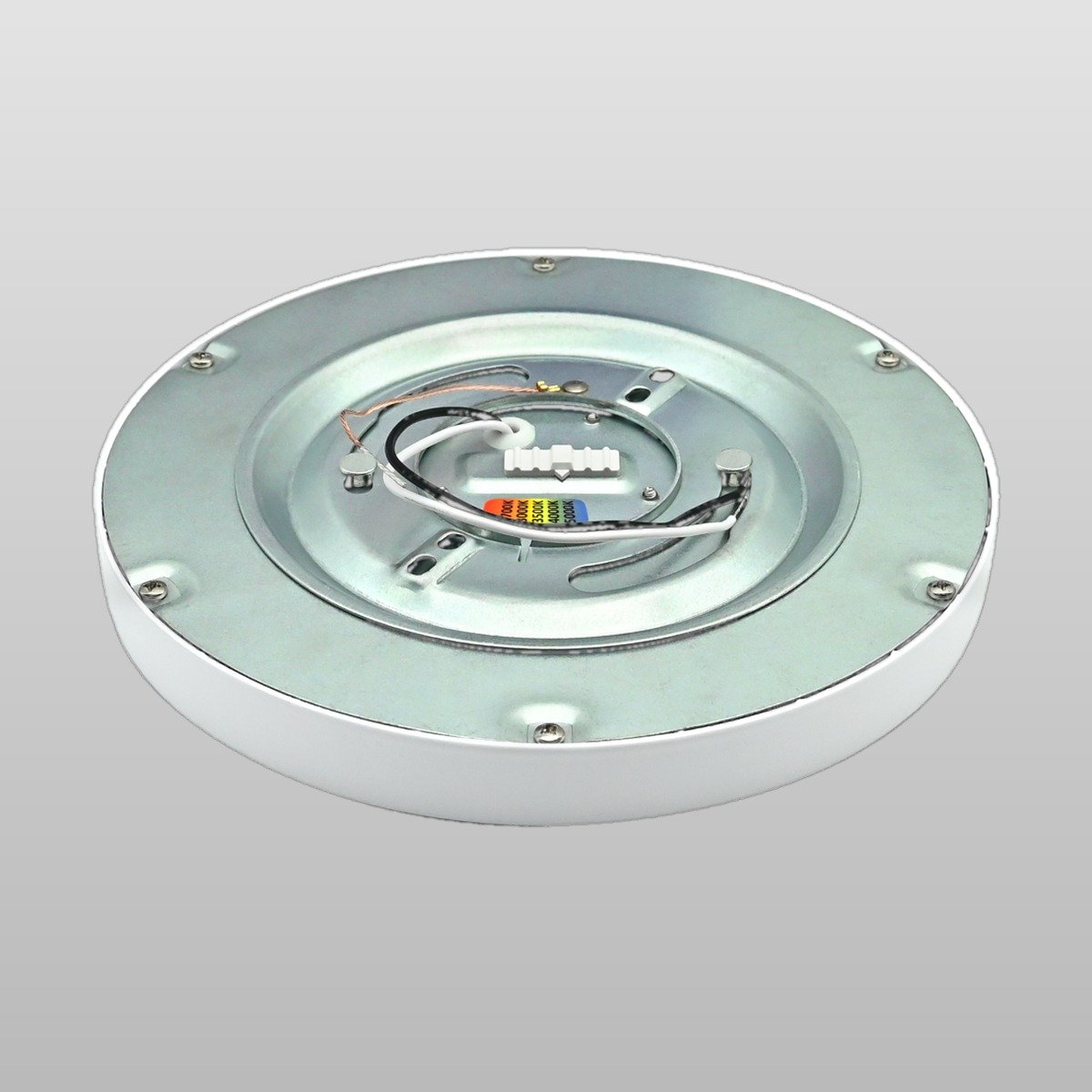

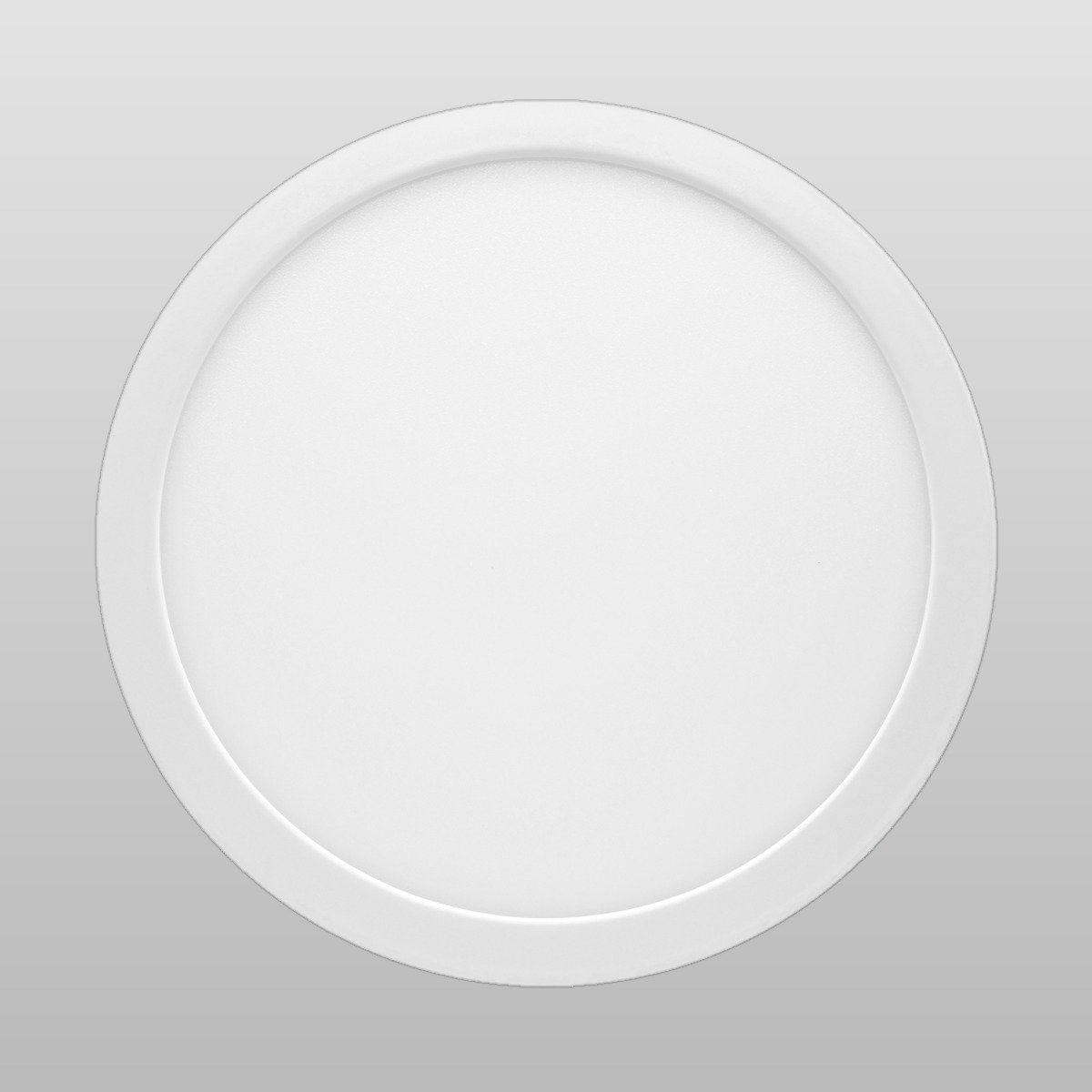

RFDL LED Round Flat Disk Light
The RFDL is a surface-mount LED round flat disk light delivering up to 2,200 lumens with field-selectable CCT (2700–5000K) and 0-10V dimming, ideal for covered walkways, entryways, and parking structures.
Inventory and Lead Time
Contact us for availability and pricing information.
Need assistance?
Call us at
(866) 471-7711
RFDL LED Round Flat Disk Light
RFDL LED Round Flat Disk Light
Contact for Pricing
Downloads & Resources
Product Overview
Features
- Die-cast aluminum housing.
- Powder coated white finish is standard.
- Black and brushed nickel trim ring available as an option for selected sizes.
Optic
- PC diffuser.
Mounting
- Surface mount is standard.
- Covered ceiling mount.
LED
- Field adjustable color temperature: 2700 / 3000 / 3500 / 4000 / 5000K.
- Delivers up to 2,200 nominal lumens.
- Lumen efficacy: up to 100 lm/W.
- Color rendering index: >90.
- L70: > 174,000 hrs.
- L90: > 51,000 hrs.
Electrical
- Input voltage: 120–277VAC, 50-60Hz.
- Power factor >90%, THD<20%.
- 0-10V dimming is standard.
- Class P, Class 2.
- 0.5kV surge protection.
- Operating temperature: -40°F (-40°C) ~ 104°F (40°C).
Listing
- ETL listed for wet location.
- EnergyStar certified (excludes 11-20L and 13-22L).
- Complies with FCC part 15, class B.
- Complies with Title 24.
- 5 years warranty.
- BAA compliant (optional).
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: BAA/BABA/ARRA options available
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
