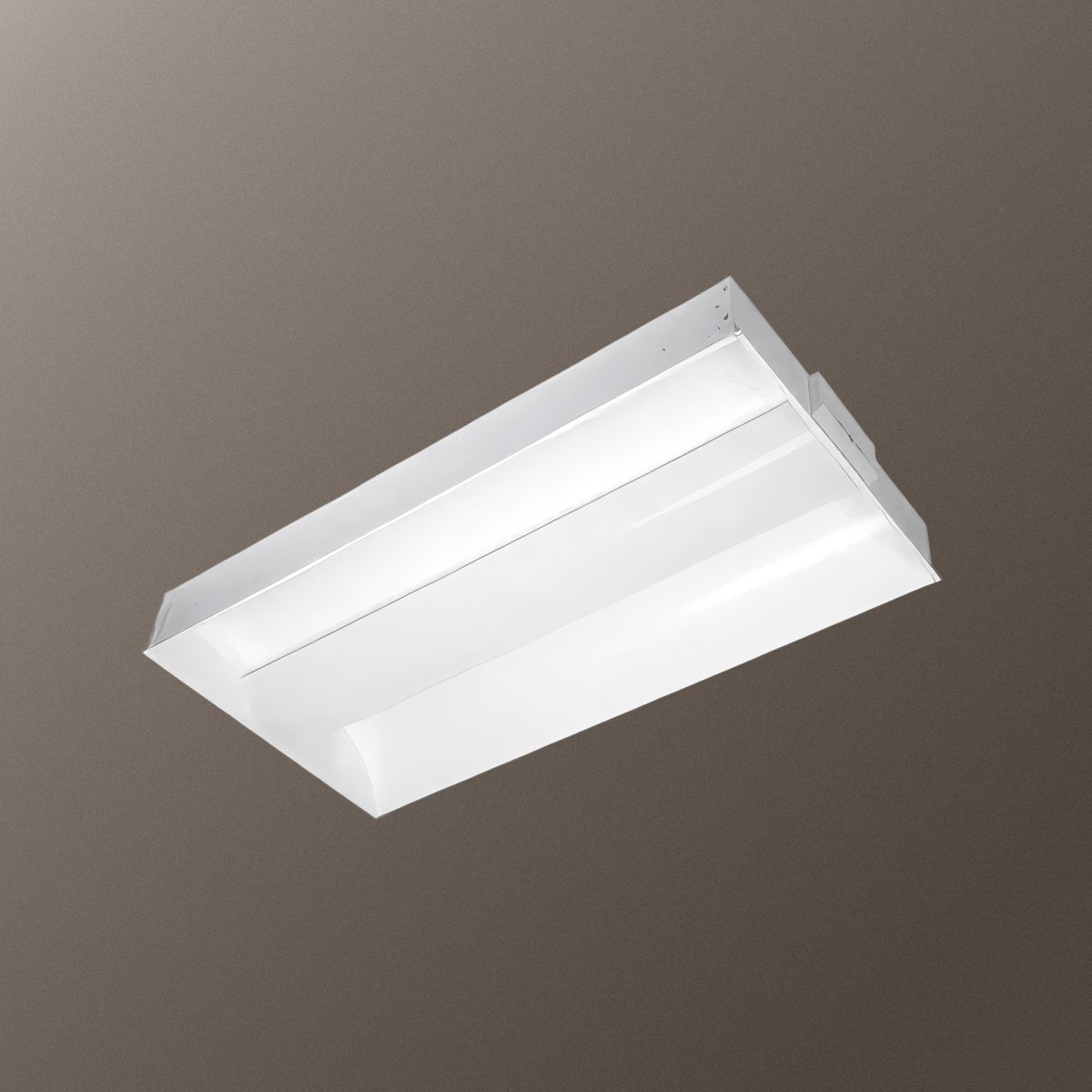

RDI QS LED Recessed Lay-In Light
This attractive recessed fixture with a symmetric center basket provides soft ambient in direct and indirect lighting. High performance of direct and indirect lighting fixture reduces shadows and glare by combining aesthetically pleasing reflect lights. It is an excellent choice for modern office environments, classrooms, hospitals and retail spaces.
Contact us for availability and pricing information.
Need assistance?
RDI QS LED Recessed Lay-In Light
RDI QS LED Recessed Lay-In Light
Downloads & Resources
Enlighted
The documentation with system overview, installation details, and configuration information
Photometrics IES Files (AC Mode)
Photometric data and light distribution diagrams for lighting performance analysis for AC Mode
Product Overview
Features:
- Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
- White powder coated housing with frosted acrylic ribbed diffuser center baskets and reflector.
- Slope side softly reflect light back downwards.
- Smooth edges for easy handling.
- T-bar safety clips are standard. (compatible with 15/16 and 9/16 T-grid ceiling)
- Reflectors were finished in textured matte white powder coated paint for uniform light distribution and over rust inhibiting phosphate coating.
- PAF (Painted After Fabrication) finish is standard for corrosion resistance and efficiency.
Shielding:
- Available in frosted acrylic ribbed diffuser or white metal round holes (perforation) with white acrylic overlay.
- For higher lumen requirement, use DF2.
- Toolless.
Mounting:
- Recessed mount in expose T-bar ceilings, Internal T-bar safety clips.
- Field installed flange kits are available.
- Suitable for direct insulation contact.
LED:
- High quality array LEDs.
- LM80.
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Color Rendering Index: > 82.8
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours
Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- Generic : 0-10V 10% dim. (GR)
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).
ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
Listing:
- UL/CUL listed and labeled.
- Listed to UL 1598 and UL 8750.
- Suitable for damp locations.
- IC Rated.
- CEC Compliant EM (please contact for more information).
- ARRA compliant. (optional)
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
