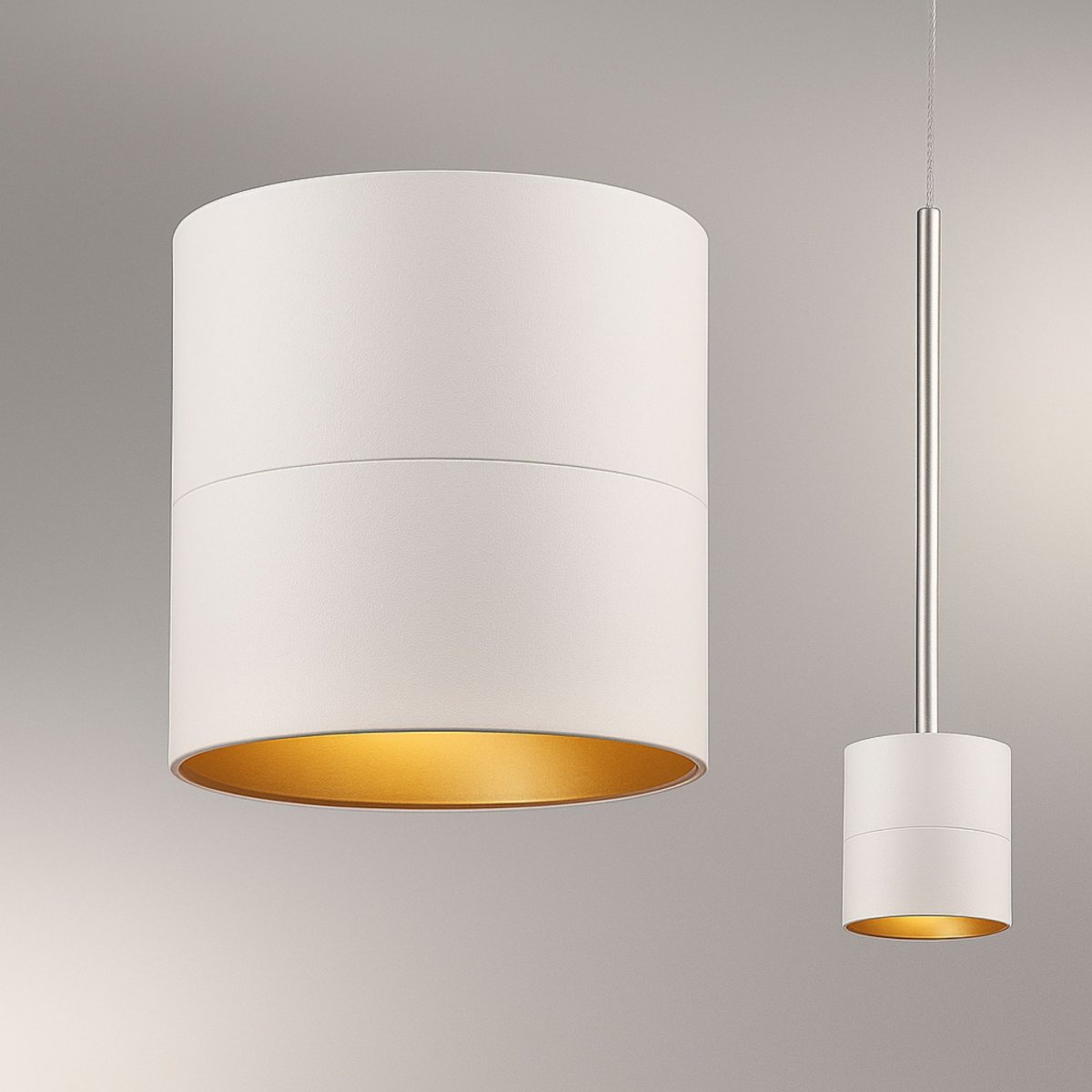

MCR Pendant Light

Features:

- Constructed of rigid die-cast aluminum. Powder-coated polyester paint that comes standard in white and black.
- Modular Design: up to 124,000 unique combinations.
- Beam Angle: 15°, 24°, 36°, 60° options
- Architectural Form: 4”, 6” and 8” with multiple trim options

Mounting:
- Pendant and surface.
- Swivel stem for sloped ceiling (max 25 degree).

LED:
- High quality array LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000 (K).
- Wattage Selectable: 90~105 lm/W
- COB LED Chip: 80+ standard, 90 CRI option
- L80 lumen maintenance: 50,000+ hours

Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Power Factor: typical > 0.9, THD <20.
- Dimming: 0-10V (10% standard, 1% option)
- Operating temperature: -4°F (-20°C) ~ 104°F (40°C).

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

Finish:

- Standard powder-coat textured white painted finish on exposed trim, consult factory for custom colors.
- Constructed of rigid die-cast aluminum. Powder-coated polyester paint that comes standard in white and black.

Listing:
- UL / CUL listed for dry and damp location.
- 5 years limited warranty.
