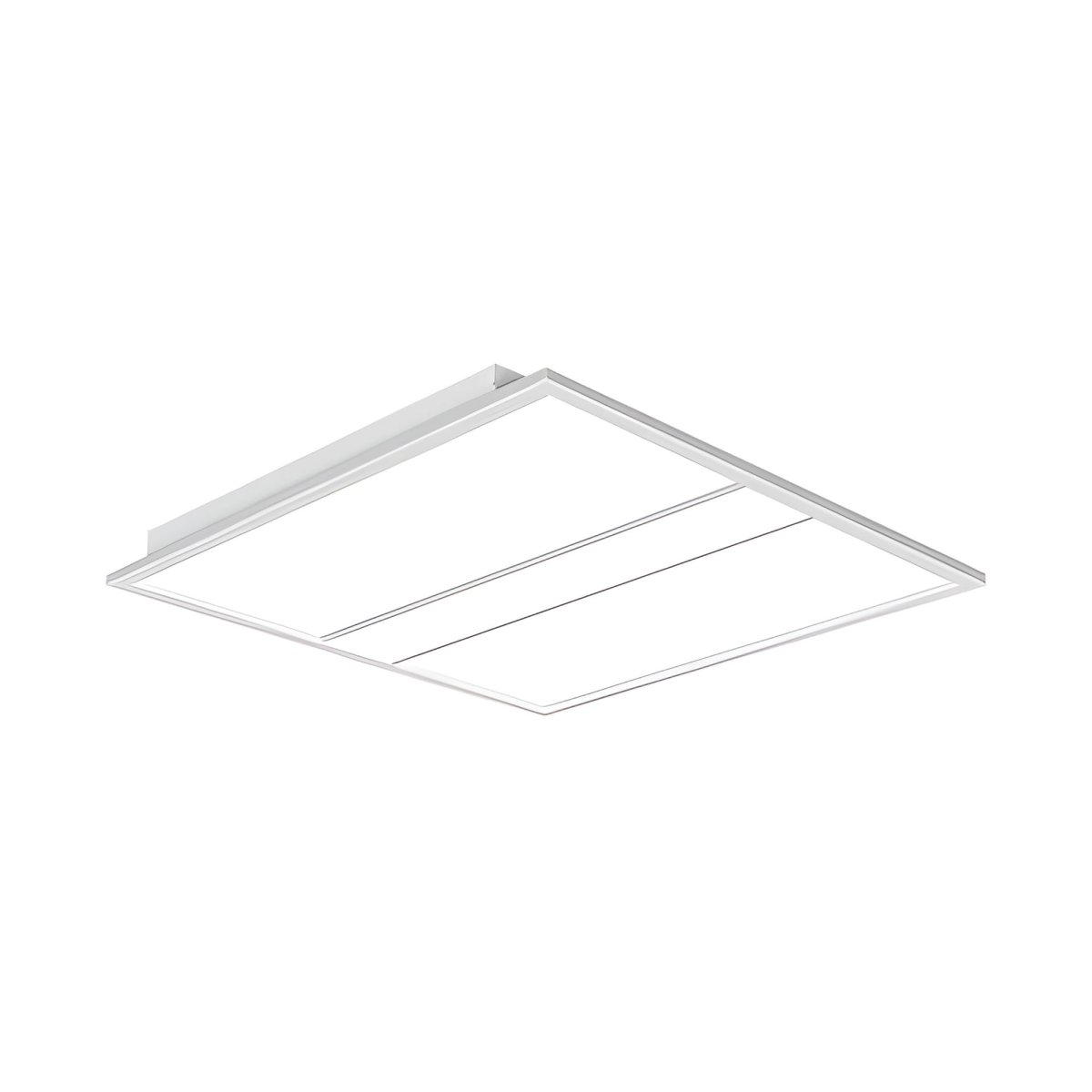

LSVT Recessed Lay-In Light

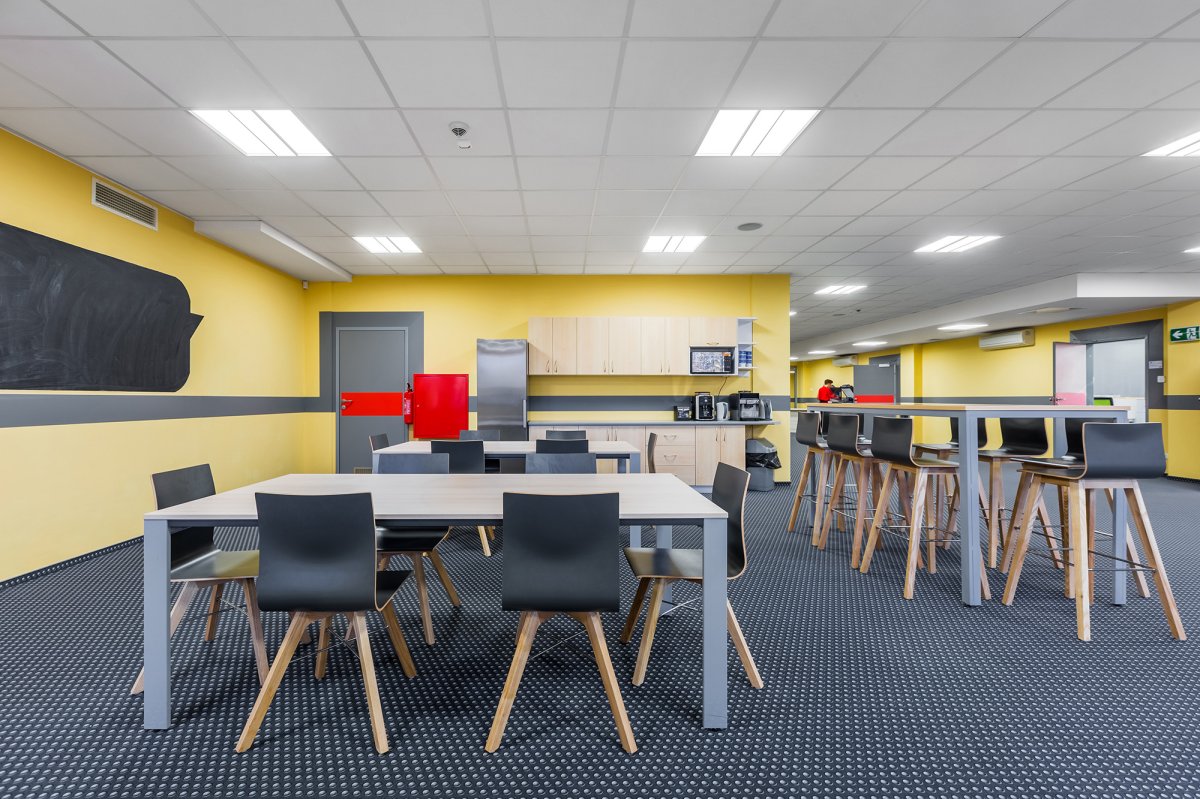

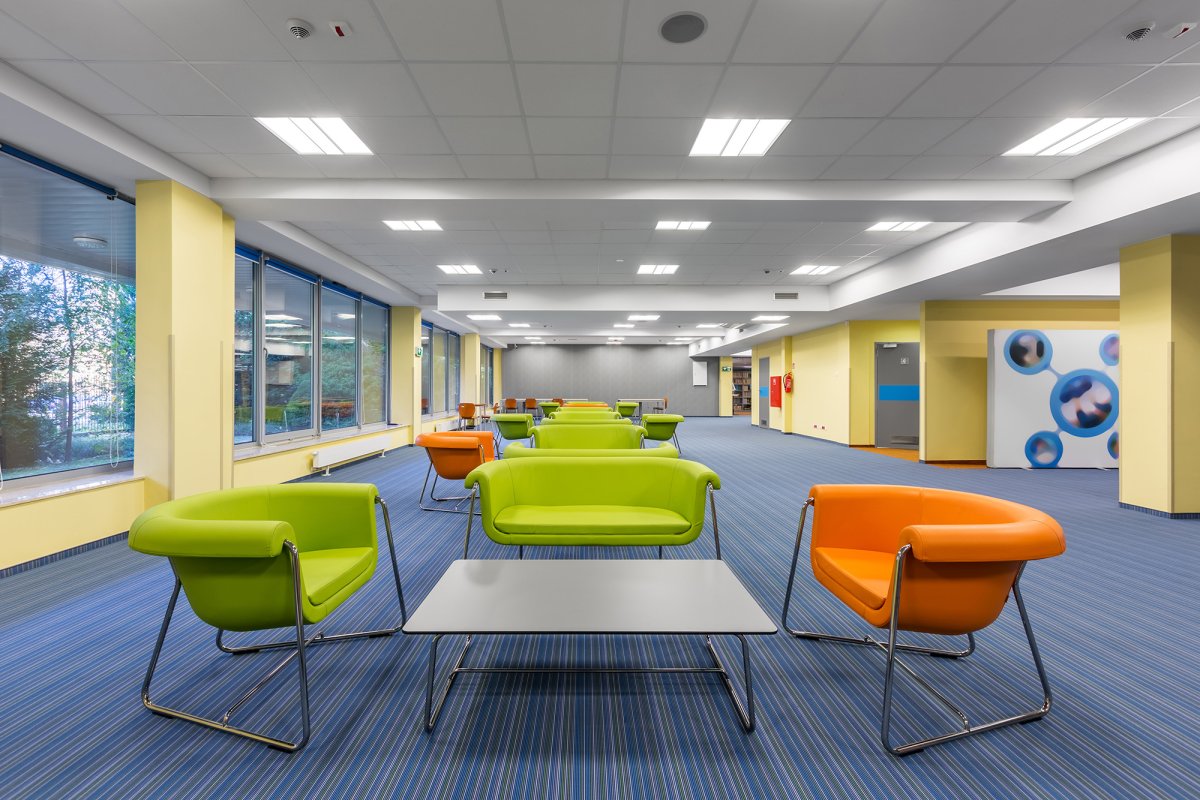

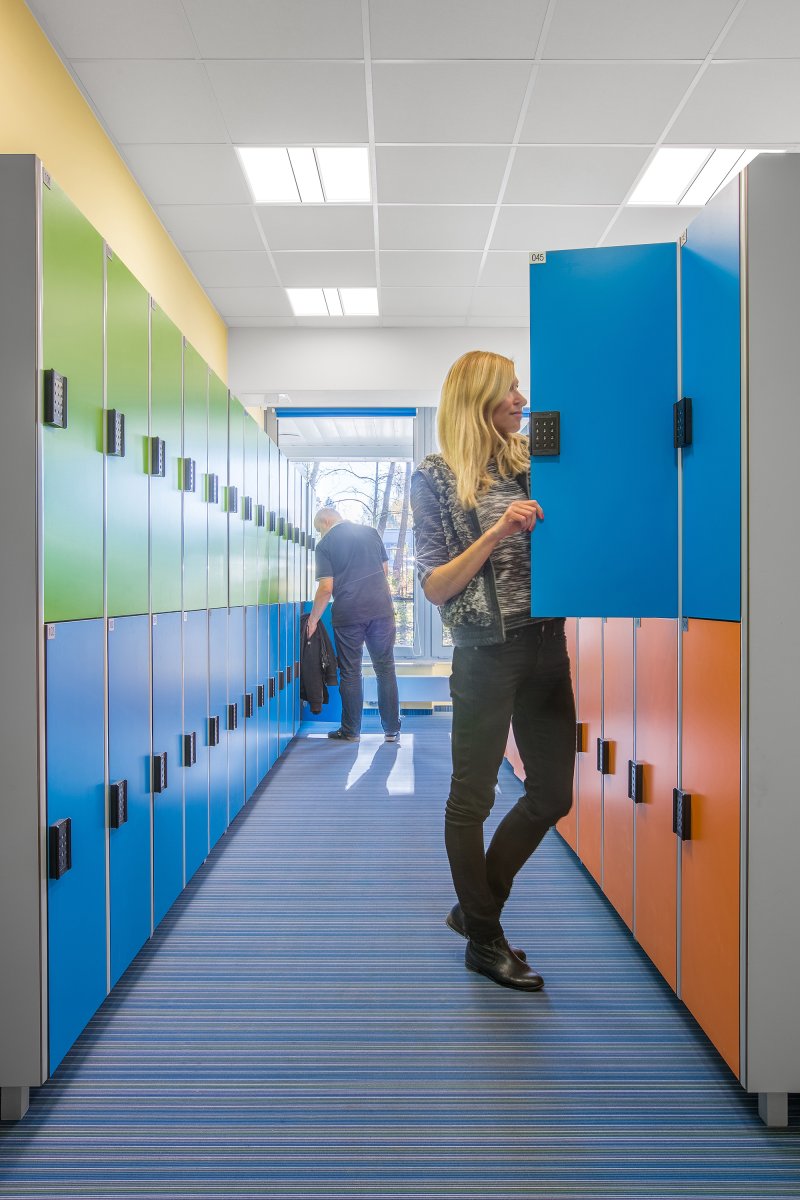

Designed to deliver an unprecedented uniformity and functionality, this LED slim volumetric troffer features a compact yet sturdy aluminum construction designed to blend into modern architectural spaces. This creates a soft and comfortable lighting experience for commercial and institutional spaces including open offices, classrooms, retail, and healthcare facilities, goes beyond what was previously possible with traditional LED luminaires.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
LSVT Recessed Lay-In Light
LSVT Recessed Lay-In Light
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
Designed to deliver an unprecedented uniformity and functionality, this LED slim volumetric troffer features a compact yet sturdy aluminum construction designed to blend into modern architectural spaces. This creates a soft and comfortable lighting experience for commercial and institutional spaces including open offices, classrooms, retail, and healthcare facilities, goes beyond what was previously possible with traditional LED luminaires.
Features:
- Featuring a low profile form factor, it is ideal for buildings with a low plenum space and is suitable for all standard 1x4, 2x2 or 2x4 grid ceilings.
- LSVT provides quiet and smooth illumination for visual comfort while maximizing efficiency.
- Low profile design.
- Uniform and soft illumination with back-lit technology.
- Extruded aluminum housing with powder coat white finish provides long term performance and superior aesthetic.
Mounting:
- T-Grid Recessed Ceiling Mount. Compatible with standard 15/16” T-bar, 9/16” T-bar, 9/16” Slot, 9/16” Interlude.
- Optional flange kit available(field install).
LED:
- Lumen efficiency ≥ 110 lm/W
- Field adjustable color temperature: 3500/4000/5000(K)
- Field adjustable wattage.
- CRI: >80
- Life span: ≥ 50,000 hours (LM80@25ºC)
Electrical:
- 0-10V dimming, down to 10%
- 120-277V, 50/60Hz
- Power factor: >0.9
- THD: <20%
- Operating ambient temperature: -4ºF to 104ºF (-20ºC to 40ºC)
Listing:
- IC rated.
- cULus listed for damp locations.
- Tested to IESNA LM-79 and LM-80,
- DesignLights Consortium Qualified and classified for DLC standard/premium.
- 5 years limited warranty.
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant:
- DLC Premium Listed: Yes
- cULus Listed: Yes
Performance Data
- Casambi Ready®: Yes
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
