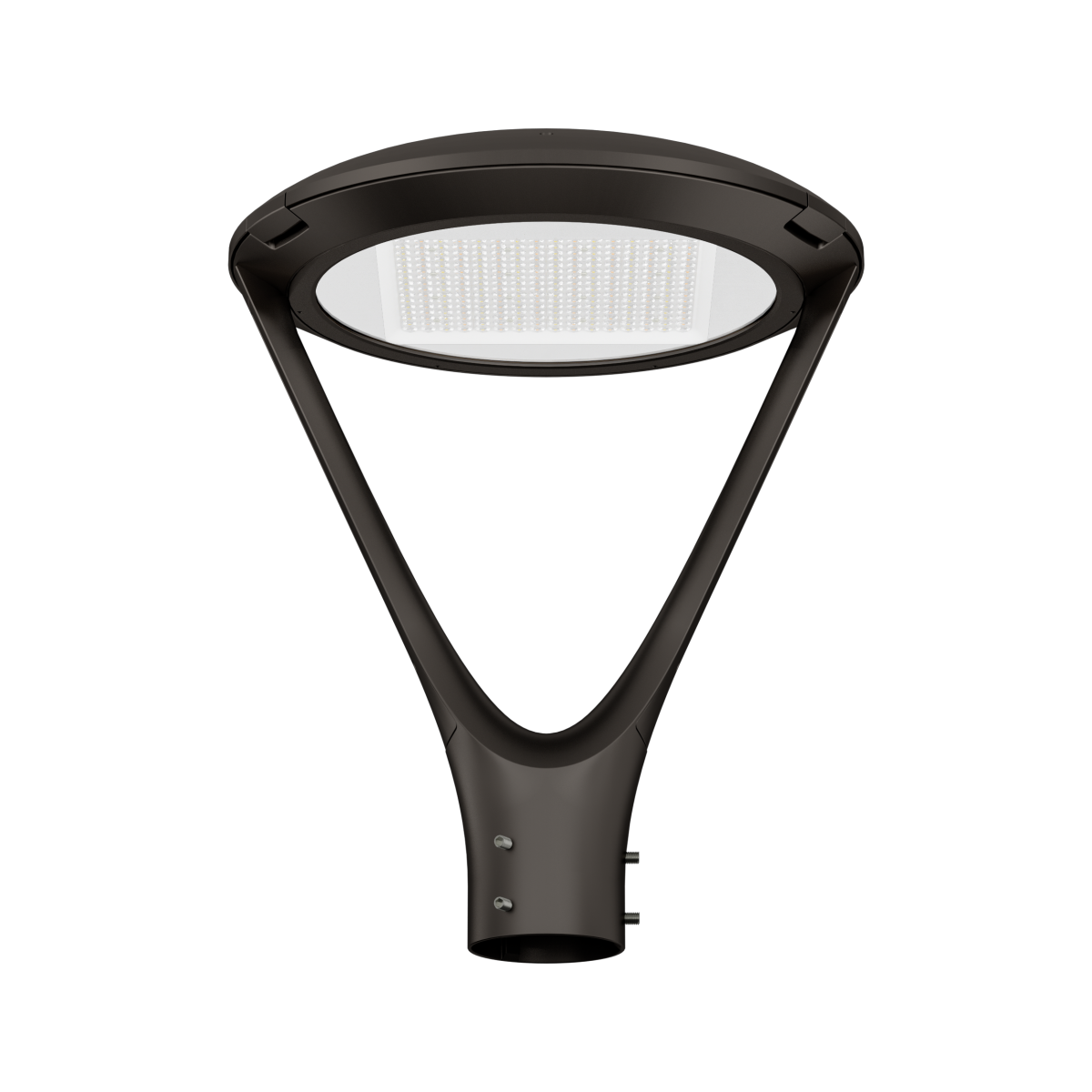

LPT2-2G LED Post Top Light

Features

• Wattage-selectable and CCT-selectable via onboard field controller — no factory pre-selection required.
• Photocell and motion sensor control options available.
• Sensor version supports Bluetooth-based networking control.
• External half glare shield available — reduces backlight while retaining up to 90% system efficiency.
• Optional emergency battery backup (8W/90min).

Mounting

• Post top mount, die-cast aluminum bracket. Fits pole tenon up to 3.28" (83.5mm) diameter.
• Post top mount bracket included standard.

Optics

• High-density LED array with dedicated optics for precise beam control and uniform illumination.
• Type II, III, IV and V distributions available (Type V standard); Type II, III and IV optics are field-installable.

LED

• Field-selectable wattage: 125/105/76W (3SH) or 63/53/33W (3SL).
• Lumen output at 5000K: up to 18,125 lm (3SH) or 9,135 lm (3SL).
• Efficacy: 145.0 lm/W.
• Color temperature: 3000K/4000K/5000K, field-selectable (5000K default setting).
• CRI > 70.

Electrical

• Input voltage: 120-277/347VAC.
• Power factor > 0.92.
• 0-10V dimmable driver; dimming wires are factory-configured for wattage/CCT selection and are not available for external dimmer control.
• Surge protection: L/N-PE 10kV, L-N 10kV.
• Ambient temperature: -22°F (-30°C) to 113°F (45°C).

Housing

• Rugged die-cast aluminum housing with a durable powder-coated finish.
• Finishes: Dark Bronze (standard), Black, White; custom RAL available.
• Fixture: Ø16.77" (425.9mm) dia. x 20.75" (527.0mm) H overall; head 3.39" (86.0mm) H.

Listing

• cULus Listed for wet locations.
• DLC 6.0 Premium.
• 5-year limited warranty.
