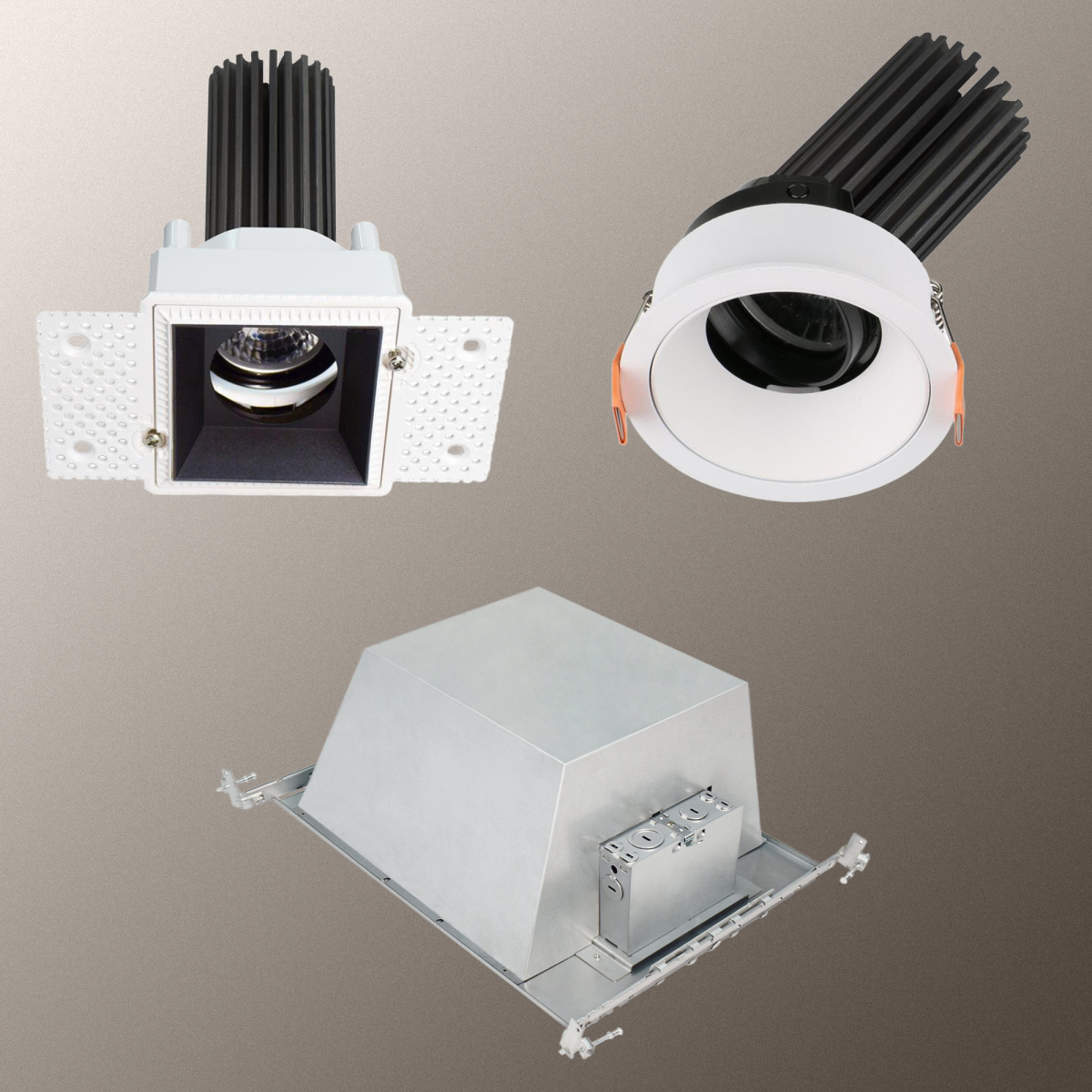

LMD3 Architectural Downlight - Round & Square

3" small and powerful recessed LED downlight is complete with high performance and a wide range of options for optics, trim styles / configurations, beam spreads, housings, mounting and more provide flexible designs and options. Ideal for indoor low to medium ceilings such as retails, hospitality, and commercial installations.

 FEATURES:

• 2.6” aperture aluminum housing as heat sink.

• Adjustable ring: 360° rotation and a maximum 30° tilt angle.

• Architectural friendly, up to 50,000 unique combinations.

• New constructions and remodel driver option.

 INSTALLATION:

• Twist & lock feature for easy trim installation.

• Durable tension clips allow fast and easy flush installation.

LED:

• High efficiency COB LED.

• Up to 1700 delivered lumens.

• Fixed CCT: CRI 90+, Dim to warm: CRI 95+

• Color Temperature: Fixed: 2700/3000/3500/4000K Dim to warm: from 3000-2000K

TRIM:

• Available in white and black finish.

• Trimmed, trimless with various shades options.

LENS:

• Provides high transmittance, light control and anti-glare with side facula and fade-out facula.

• The MR16 standard size (diameter 1.96") designs make them widely practical.

• Available in 15°-60° beam angles; beam spreads are interchangeable (easily swapped in the field without tools).

 ELECTRICAL:

• 2-in-1 dimming: 0-10V dimming (1-100% continuous dim.) and Triac.

• 120-277Vac / 120Vac Triac (std.)

• Power Factor > 0.9, THD <20%

• Operating Temperature Range: -4°F (-20°C) ~ 104°F (40°C).

• Thermal overload protection shuts down the luminaire when temperature exceeds designed operating condition.

LISTING:

• UL certified for indoor damp location.

• 5 years limited warranty.
