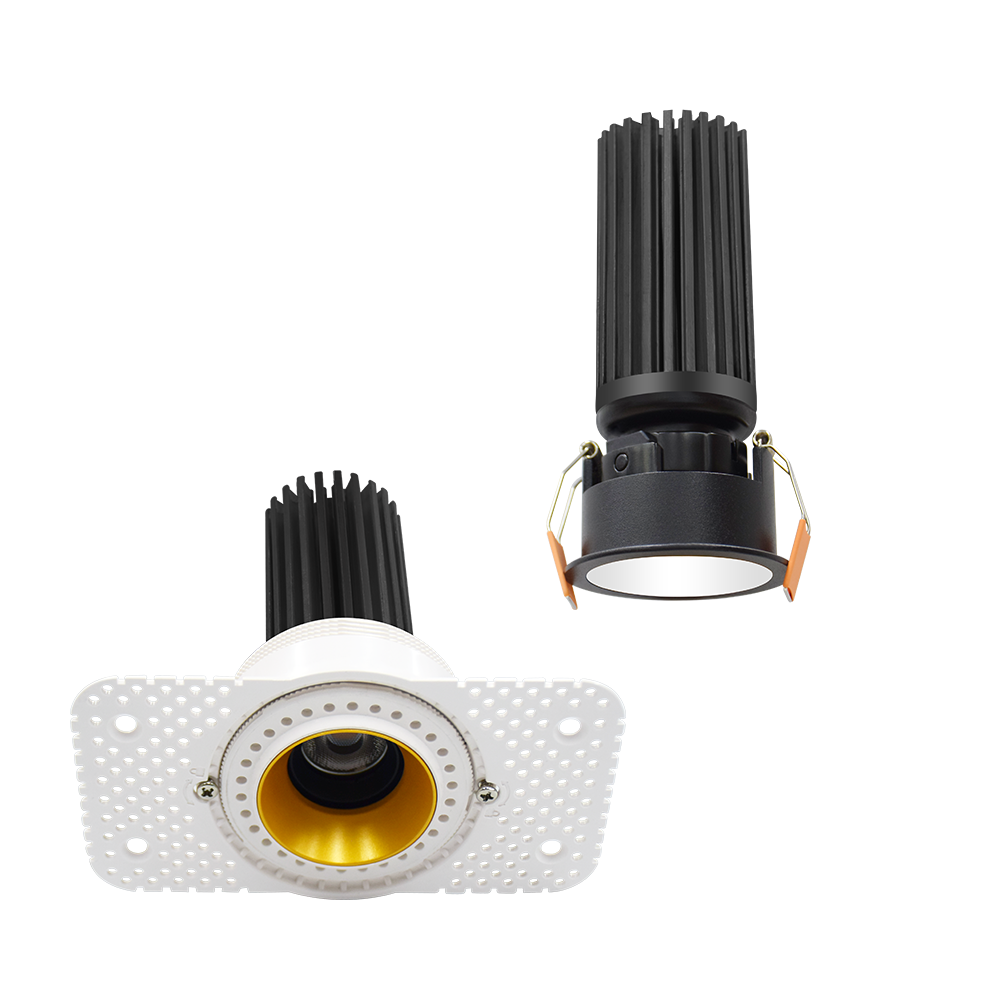

LMD2 LED Deep Mini Downlight

Features

• Aluminum housing acts as heat sink.
• Adjustable ring: 360° rotation and a maximum 30° tilt angle.
• Architectural friendly, up to 50,000 unique combinations.
• New construction and remodel driver options.
• Available in white or black finish, trimmed or trimless, with multiple shade options.
• Optional decorative kits: yellow, green, clear, blue, or red trim with black or white shield.

Installation

• Twist & lock feature for easy trim installation.
• Durable tension clips allow fast and easy flush installation.

LED

• High efficiency COB LED.
• Field selectable wattage: 5/8/10/13/16W via dip switch on the driver.
• Up to 1072 delivered lumens.
• Fixed CCT: 2700/3000/3500/4000K, CRI 90+.
• Dim to Warm: 3000K–2000K, CRI 95+, 13W max, up to 840 lm.
• Efficacy up to 74 lm/W.

Lens

• Reflector design provides high transmittance, light control, and anti-glare performance.
• Available in 30° and 50° beam angles.
• Beam spreads are interchangeable and easily swapped in the field without tools.
• Optional honeycomb louver or wet-rated waterproof plate.

Electrical

• 2-in-1 dimming: 0–10V continuous dim to 1%, and Triac.
• Input voltage: 120–277Vac / 120Vac Triac (std.).
• Power Factor >0.9, THD <20%.
• Operating temperature range: -4°F to 104°F (-20°C to 40°C).
• Thermal overload protection.
• Optional 8W remote emergency battery, field installed.

Mounting

• Remodel (RM) with remote LED driver box.
• New construction frame kit, non-IC (NF).
• New construction housing insulation kit, IC (NH).
• Mounting diameter: 2.25" trimmed, 3.50" trimless.

Listing

• UL certified for indoor damp location.
• 5 years limited warranty.
