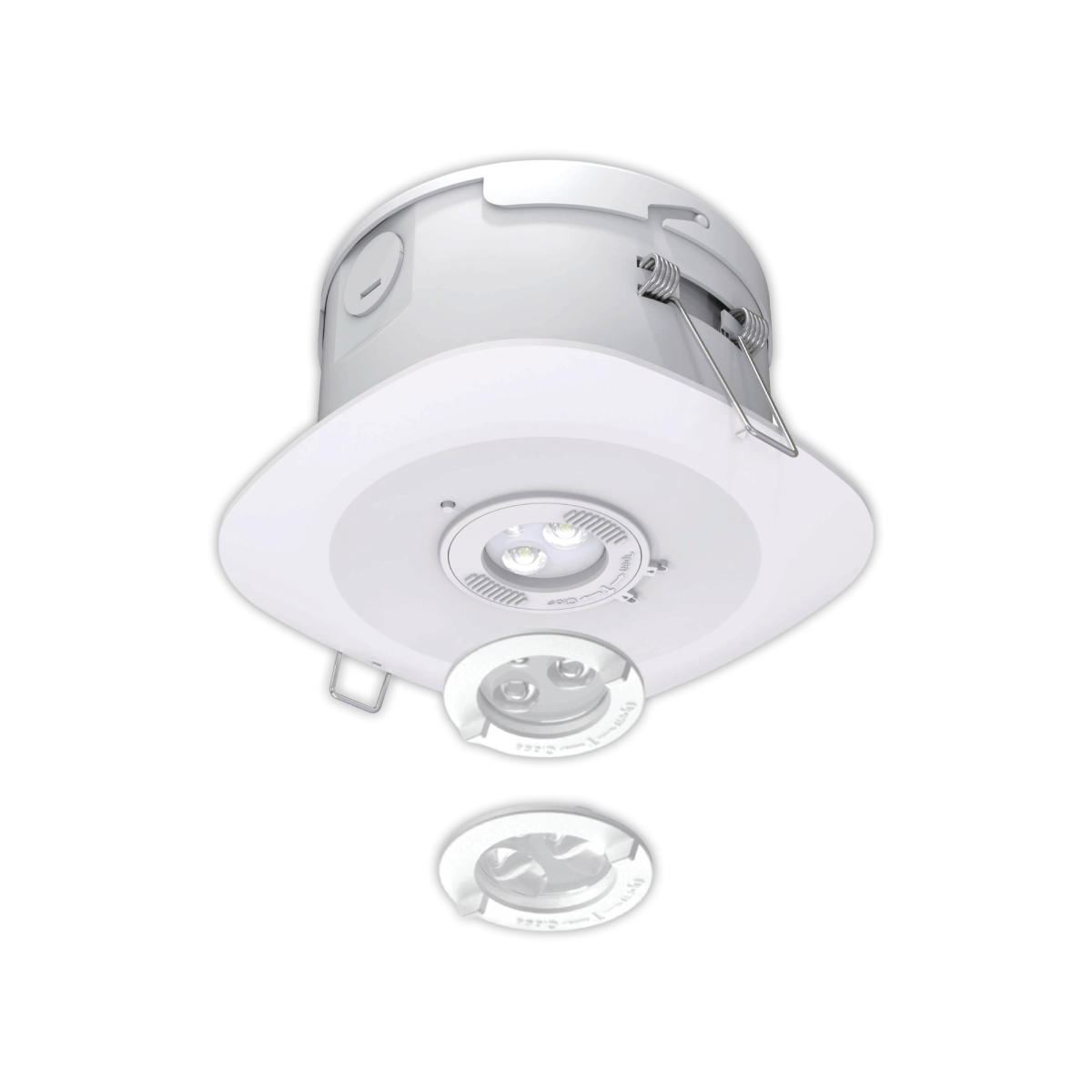

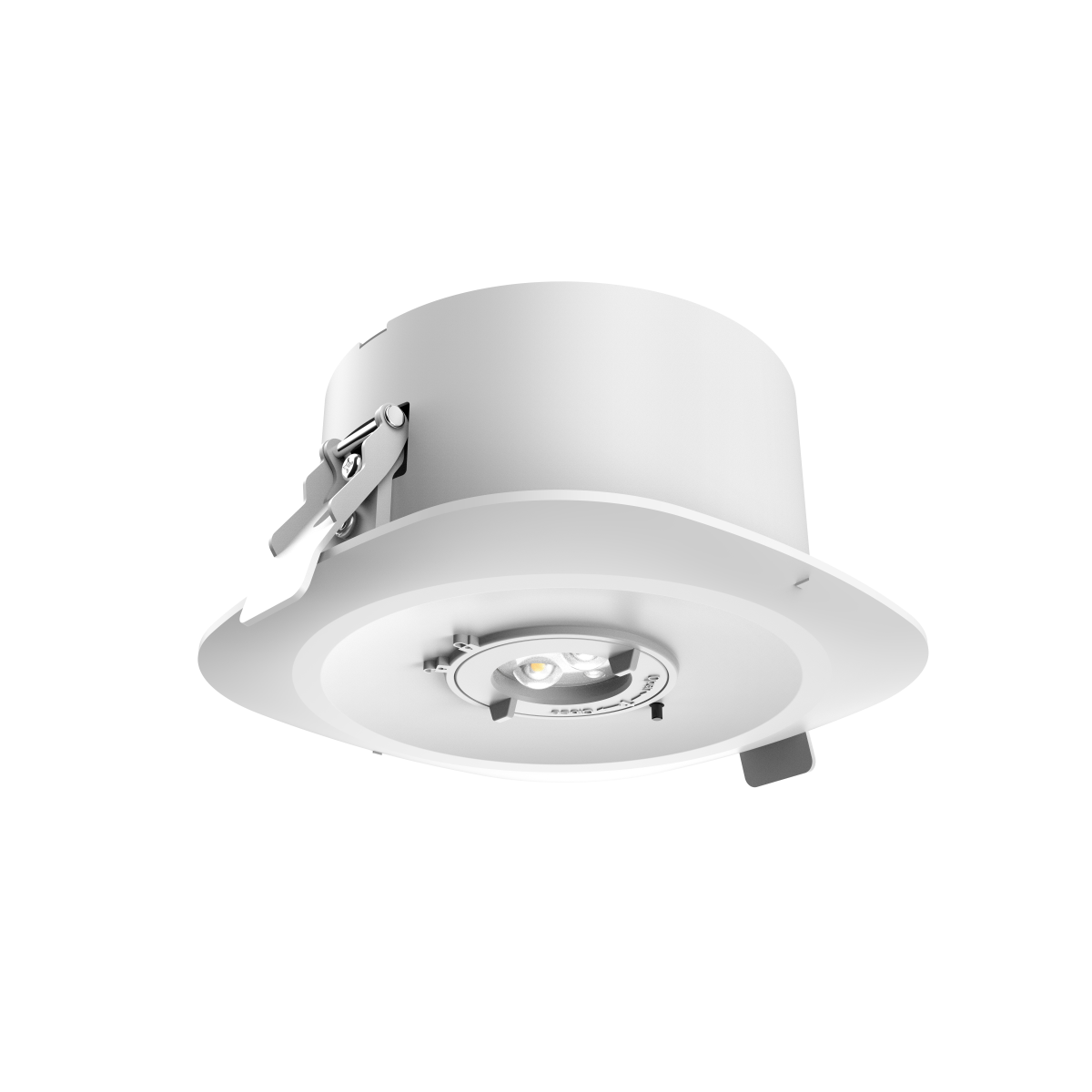

LEMD LED Emergency Downlight

Features
Low-profile recessed downlight design for clean ceiling integration.
Compact 5.66” round housing fits a Ø4.7” cuthole.
Round lens (140°) for open areas and oval lens (150° × 70°) for corridors and escape routes, both included.
Integrated test switch and LED status indicator.
Self-testing/self-diagnostic circuitry as standard.
PC and aluminium construction with white finish.

Illumination
6W LED emergency output.
700 lumens at 6000K, Ra70.
LED light source for long-life operation.
Two interchangeable lens options for application-specific light distribution.

Mounting
Recessed mount in ceilings via Ø4.7” ± 0.2” cuthole.
Housing dimensions: 5.66” L × 5.66” W × 2.87” H.
Tool-free lens swap between round and oval optics at install.

Function
Self-Testing: continually monitors battery, lamp, charge board, and transfer circuit.
Automatic 30-second discharge test every 30 days.
Automatic 90-minute discharge test every 365 days.
Manual test via integrated test button: press once for 30-second test, press three times for 90-minute test.
LED status indicator reports charging, fully charged, discharging, and fault states.
Non-Maintained operation.

Electrical
100-347VAC input voltage.
LiFePO4 rechargeable battery, maintenance-free.
Battery protection: over-charge, over-discharge, short circuit, voltage surge, and low-voltage disconnect.
24-hour full recharge time.
Minimum 90 minutes of emergency illumination on battery.
Internal solid-state transfer switch activates emergency mode on AC loss.

Listing
ETL Certified.
IP20 rated.
Five-year warranty on electronics and housing
ROHS compliant

Dimensions
Housing: 5.66” × 5.66” × 2.87”
Cuthole: Ø4.7” ± 0.2”
