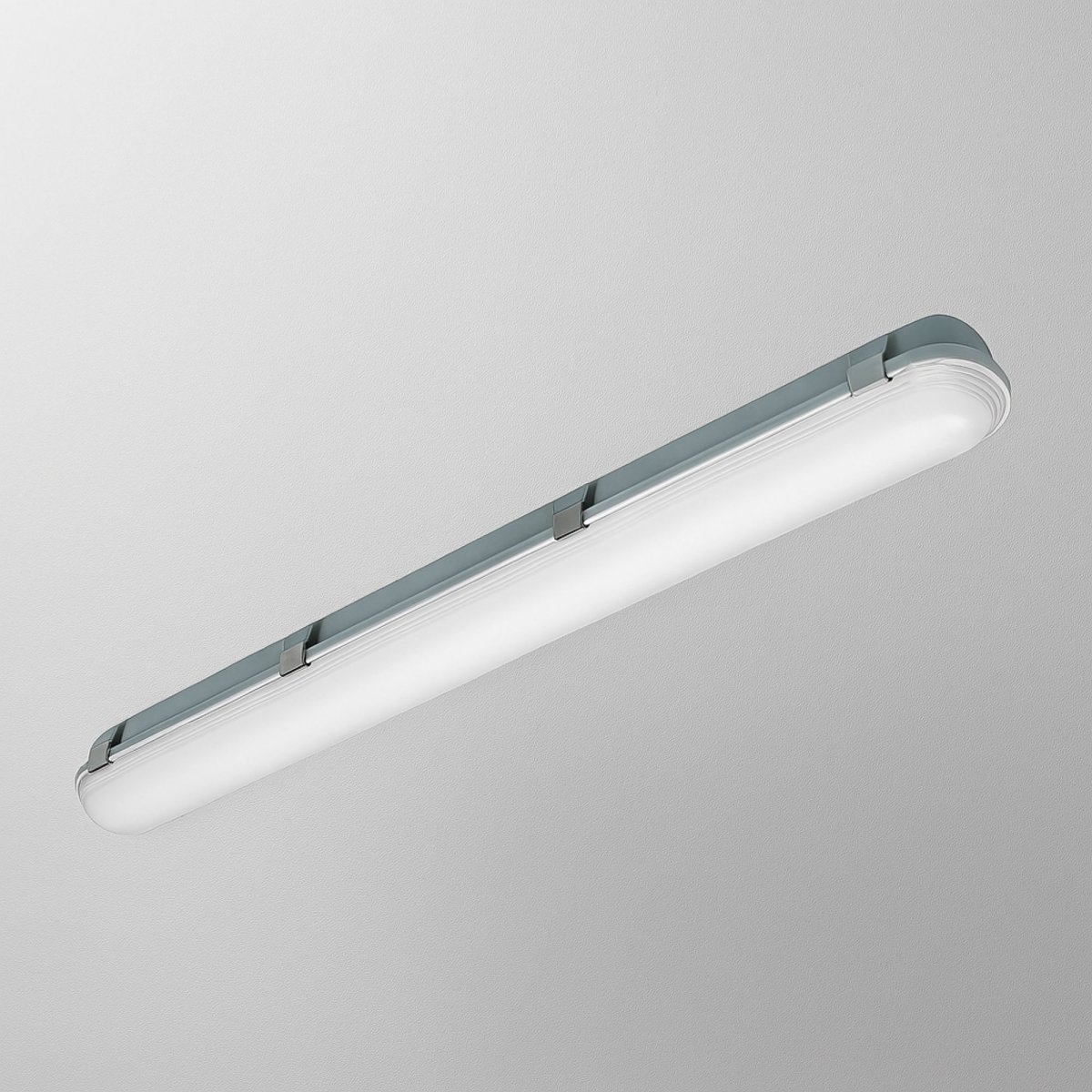

LDW-2G Enclosed and Gasket Fixture

Features:

- Vaportite fixture feature in rugged and durable construction. One piece polycarbonate housing with powder coated steel gear tray, hinge at both side with tool less latch for easy of accessibility and maintenance.
- Captive, Stainless steel snap-action latch cam secures lens to housing.
- Impact resistant translucent rounded acrylic linear diffuser.
- Fixtures wiring knockouts are provided on back and each end of housing.

Mounting:

- Chain and surface mounting.
- Mounting bracket provided.

Lens:

- Inline thermoformed low profile lenses available in 50% DR acrylic in clear, crepe and Lumieo.
- Lenses for parking garage applications available in 50% DR clear acrylic, polycarbonate and Lumieo.
- Lens retained by 6 for 2ft and 8 for 4ft captive flush mounted latches.

LED:

- Color Temperature: 3500/4000/5000 (K).
- Service life: Greater than 100,000 hours(L70) minimizing maintenance frequency.
- Poke in wire connectors.
- Reported L70 (hours): >54,000

Electrical:

- High power factor electronic driver, operate from a 120~277 Vac input range, 50/60 Hz.
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature: -49°F(-45°C) ~ 113°F(45°C).
- Constant Current, Class 2

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

Listing:
- UL listed.
- DLC listed.
- IP65 rated.
- Suitable for damp location / wet location listed.
- Assembled in USA (optional)
- 5 years limited warranty.
