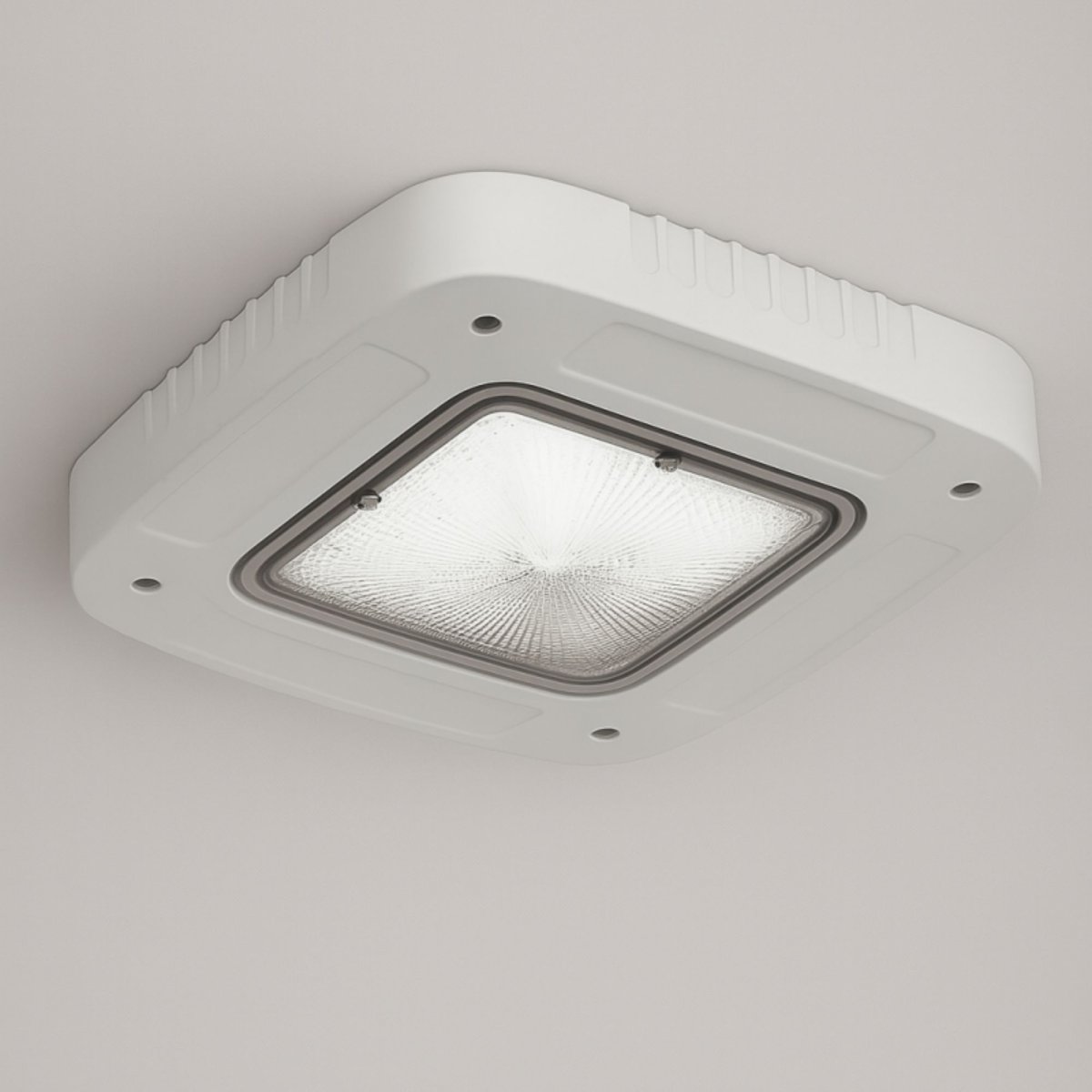

LCT-2G Square LED Canopy Light
It is intended to be easily installed through a surface mounting. With die cast aluminum and an integral heat sink, the LCT can withstand the most challenging outdoor environments. Ideal for walkways, building exterior, entrances, mall areas and gas station. Perfect for hard to service locations.
Contact us for availability and pricing information.
Need assistance?
LCT-2G Square LED Canopy Light
LCT-2G Square LED Canopy Light
Downloads & Resources
Product Overview
It is intended to be easily installed through a surface mounting. With die cast aluminum and an integral heat sink, the LCT can withstand the most challenging outdoor environments. Ideal for walkways, building exterior, entrances, mall areas and gas station. Perfect for hard to service locations.
Features:
- Slim, low profile, easy mounting from below the deck.
- Rugged die cast aluminum housing with integral heat sink.
- Hollow design for air convection.
- Comes equipped with patterned polycarbonate lens.
- Housing is white powder paint finish as standard.
- Beam angle: 110°
Mounting:
- Suitable for surface ceiling.
- Suitable for 3/4” NPT pendant ceiling (pipe by others).
LED:
- Samsung LED.
- 5000K color temperature standard.
- Luminous Efficacy 150W: 130 lm/W
- 50,000 hours.
- CRI +80
Electrical:
- High power factor electronic driver, 120-277V, 50 / 60 Hz.
- Input Watts: 150W(150LED)
- 1-10V dimmable driver as standard.
- Power factor: >0.90
- 10kV / 6kV surge protector standard.
- Class P and type TL rated.
Listing:
- IP65.
- 5 years limited warranty.
- UL listed.
- DLC listed.
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
