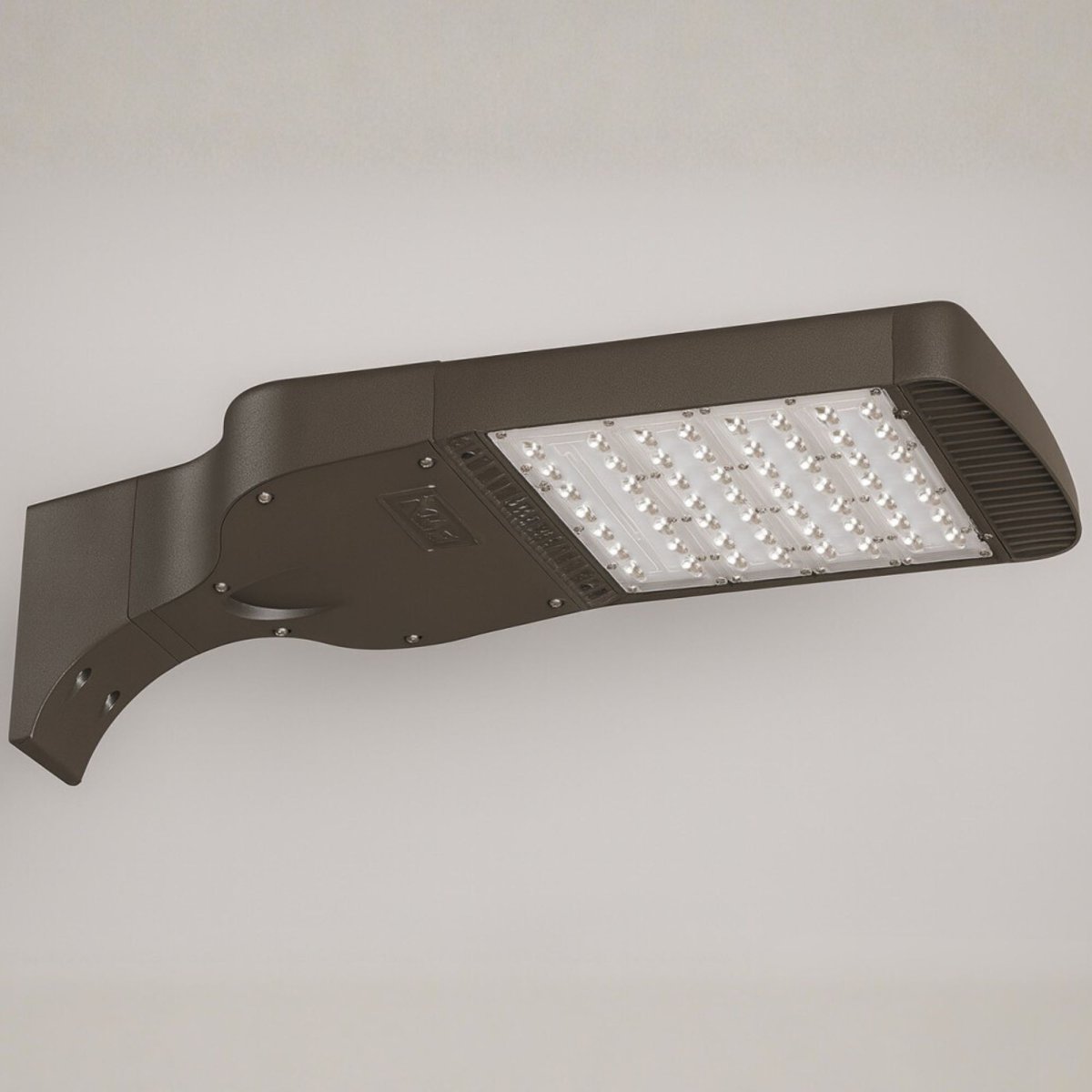

LAP 2G LED Area Light
For all applications in site, area, and general lighting requiring high uniformity, excellent vertical light distribution, reduced offsite visibility, reduced on-site glare and effective security light levels. The LAP luminaire delivers exceptional performance in a low-profile design.
Contact us for availability and pricing information.
Need assistance?
LAP 2G LED Area Light
LAP 2G LED Area Light
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
For all applications in site, area, and general lighting requiring high uniformity, excellent vertical light distribution, reduced offsite visibility, reduced on-site glare and effective security light levels.
The LAP luminaire delivers exceptional performance in a low-profile design.
Features:
- Die-cast aluminium construction body on which electrical components.
- Die-cast integral heat sink to provide thermal management.
Mounting:
- PMS: Pole mount arm available for 3”, 4” and 5” square pole.
- PMR: Pole mount arm available for 3” (PMR3), 4” (PMR4) and 5” (PMR5) dia. round pole.
- SF: Adjustable slip fitter mount available for pipe installation (1-21/32”O.D to 2-3/8”O.D)
- WM: Wall mount plate.
- Mounting arm bolts are 304 stainless steel and zinc-plated steel.
- MA: Available for 2.375”(O.D) sized Mast Arm Pole.
- MA2: Availabel for 1.900”(O.D) sized Mast Arm Pole.
Optic:
- UV stabilized polycarbonate lens.
LED:
- Color Temperature: 3000 / 4000 / 5000K
- Color Rendering Index: 70+ CRI.
- Nichia LED.
- Lifetime: over 50,000 hours.
Electrical:
- UL, FCC certified input voltage range: 100V-277V, 50/60Hz
- Power factor >90%, THD <20%
- 72LED: Class 2 LED electronic driver.
- 108LED, 141LED, 188LED: Class 1 electronic driver.
- Operating temperature: -40°C to 40°C (110W can reach +50°C).
- Provided with integrated surge protection (6kV line-line, 10kV line-earth).
- Optional integrated 10kV/10kA surge protection available (SP10).
- Over Voltage Protect : Hiccup mode. The power supply shall return to normal operation only after the power is turn-on again.
- Short Circuit Protect : No damage shall occur when any output operating in a short circuit condition. The power supply shall be self-recovery when the fault condition is removed.
- Over Temperature Protect : 110°C
- Meets ANSI/IEEE C62.41 Category C (outdoors) High.
- Waterproof (IP67) and UL Dry / Damp / Wet Location outdoor LED driver.
- RoHS compliant.
- Complies with Part 15 of the FCC Rules (meets 47 CFR 15, Class B).
Listing:
- UL / CUL listed.
- Listed to UL 1598 and UL 8750.
- DLC listed. 3
- ARRA compliant (optional).
- BAA compliant (optional).
- Suitable for wet location.
- Tested to IESNA LM80 standards.
- LM79, LM80.
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional).
- IP65 & IP66.
- Certified to ANSI C136.31-2010, 3.0G Level 2 for Bridge/Overpass Applications.
