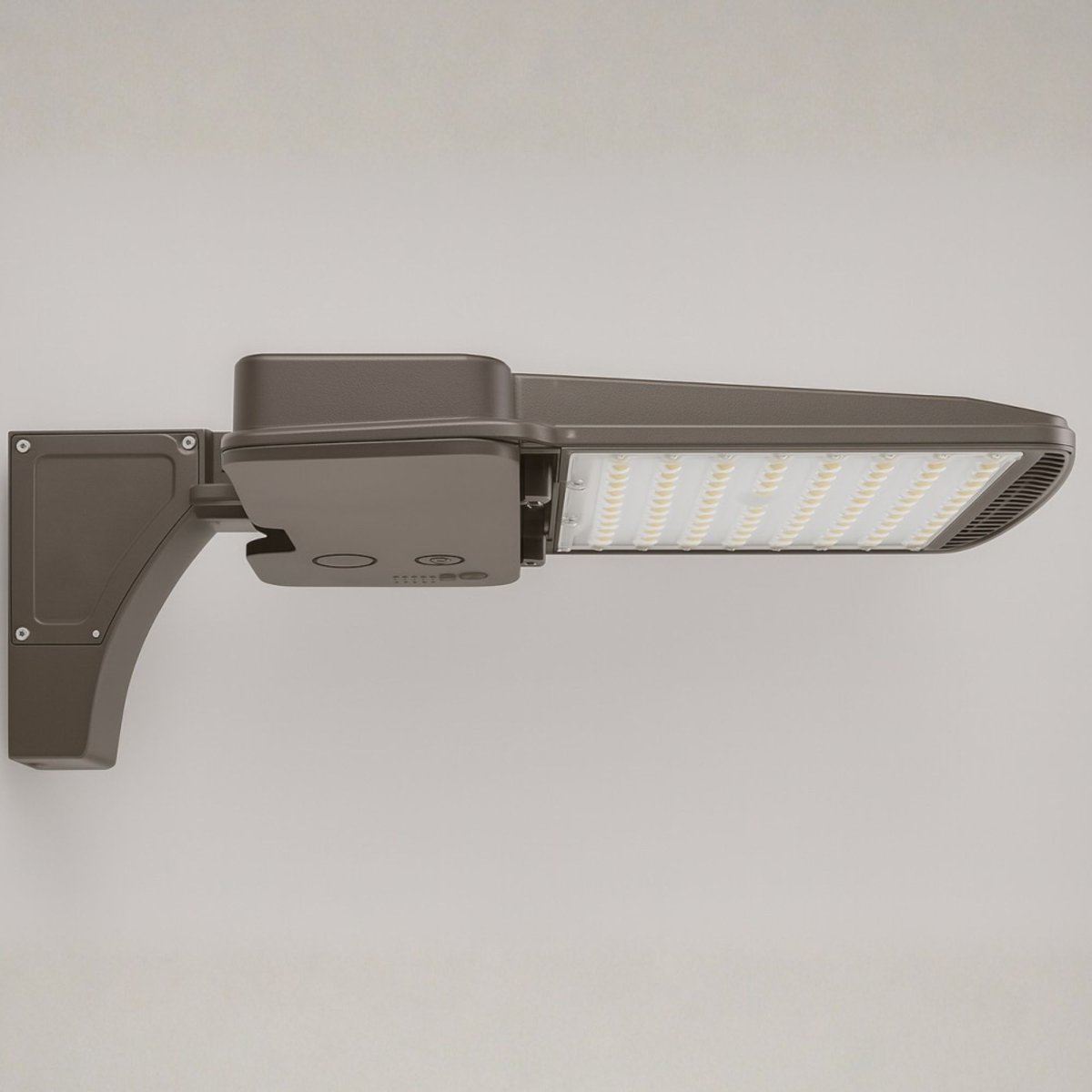

LAL LED Area Light
LED Shoebox/Area Light series can be used in parking lot, urban roads, industrial areas, residential areas, sidewalks, schools, and gardens. Wide detection area, range up to 52ft in diameter.
Contact us for availability and pricing information.
Need assistance?
LAL LED Area Light
LAL LED Area Light
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
LED Shoebox/Area Light series can be used in parking lot, urban roads, industrial areas, residential areas, sidewalks, schools, and gardens. Wide detection area, range up to 52ft in diameter.
Features:
- One piece die-cast aluminum body with die-cast hinge panel for easy access.
- UV stabilized powder coat finish.
- Bronze finish standard.
- Operating temperature: -40ºC to 45ºC (-40ºF to 113ºF)
- Stainless steel hardware.
Mounting:
- Stadnard with Slip Fitter (for 2-3/8” pole).
- Square / Round pole arm.
- Trunnion mount.
Optic:
- PC optic.
- Distribution: Type3, Type4, Type5
LED:
- Lumileds LED
- Color Temperature: 4000 / 5000K
- Lumen efficiency: Color rendering index: >70
- Life span: 100,000 hours
Electrical:
- 1-10V dimming standard.
- 120-277V, 50/60Hz, 480V
- THD: ≤20%
- PF: ≥90%
- Standard with 4Kv surge protection.
- Optional for 10Kv / 20Kv surge protection.
- Operating temperature: -40°F (-40°C) ~ 104°F (40°C)
Listing:
- IP65 rated.
- UL listed.
- RoHS compliant.
- DLC premium listed.
- Suitable for wet location.
- 5 years limited warranty.
- BAA compliant (optional).
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
