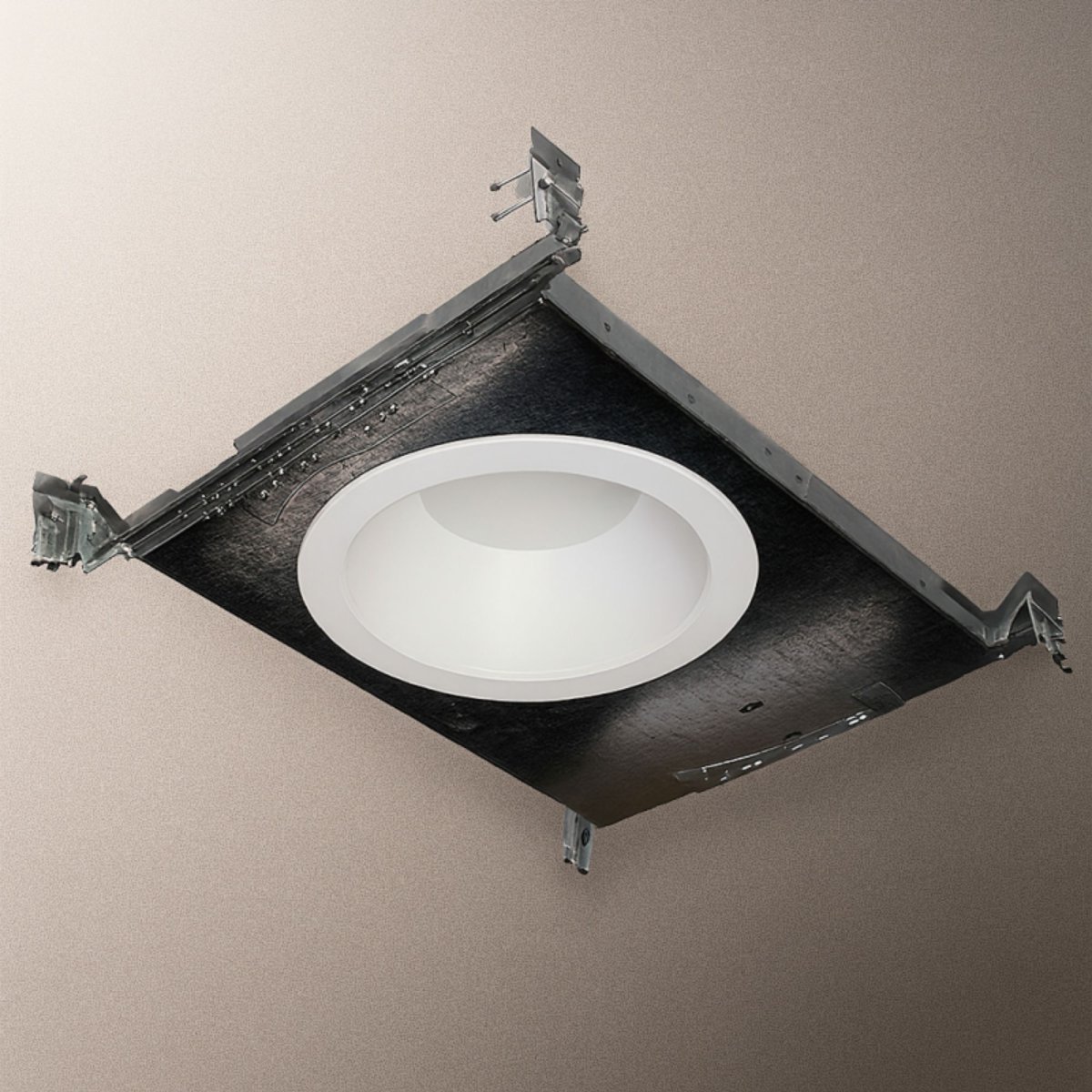

LAD-2G 4 and 6-Inch Commercial Frame-In Downlight
4” and 6” LED commercial frame-in is non-insulated ceiling design. Ideal for low to medium ceilings such as retails, hospitality, and commercial installations.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
LAD-2G 4 and 6-Inch Commercial Frame-In Downlight
LAD-2G 4 and 6-Inch Commercial Frame-In Downlight
Downloads & Resources
Product Overview
4” and 6” LED commercial frame-in is non-insulated ceiling design. Ideal for low to medium ceilings such as retails, hospitality, and commercial installations.
Features:
- 4” and 6” nominal aperture steel die-formed housing.
- White smooth reflector standard.
- Field adjustable CCT (30/35/40K)
- Frosted polycarbonate lens for smooth light.
Installation:
- Spring clips clamp to existing frame.
- Optional frame kit and J-box available.
LED:
- Color Temperature: Field adjustable: 3000/3500/4000 (K).
- CRI 90+
- High luminous efficiency, 100 lm/W.
- Beam angle: 90°
Electrical:
- 0-10V dimming (5-100% dim to off) standard.
- 120-277Vac
- Power Factor > 0.9
- Flicker free.
- 2K surge protection.
- Operating Temperature Range: -4°F (-20°C) ~ 104°F (40°C).
- Operating hours : 50,000 hours.
Listing:
- Energy Star Listed.
- ETL Listing.
- Suitable for Wet Location.
- 50,000 hours lifespan.
- Type: Non-IC
- 5 years limited warranty.
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant:
Performance Data
- Wet Location Approved: Yes
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
