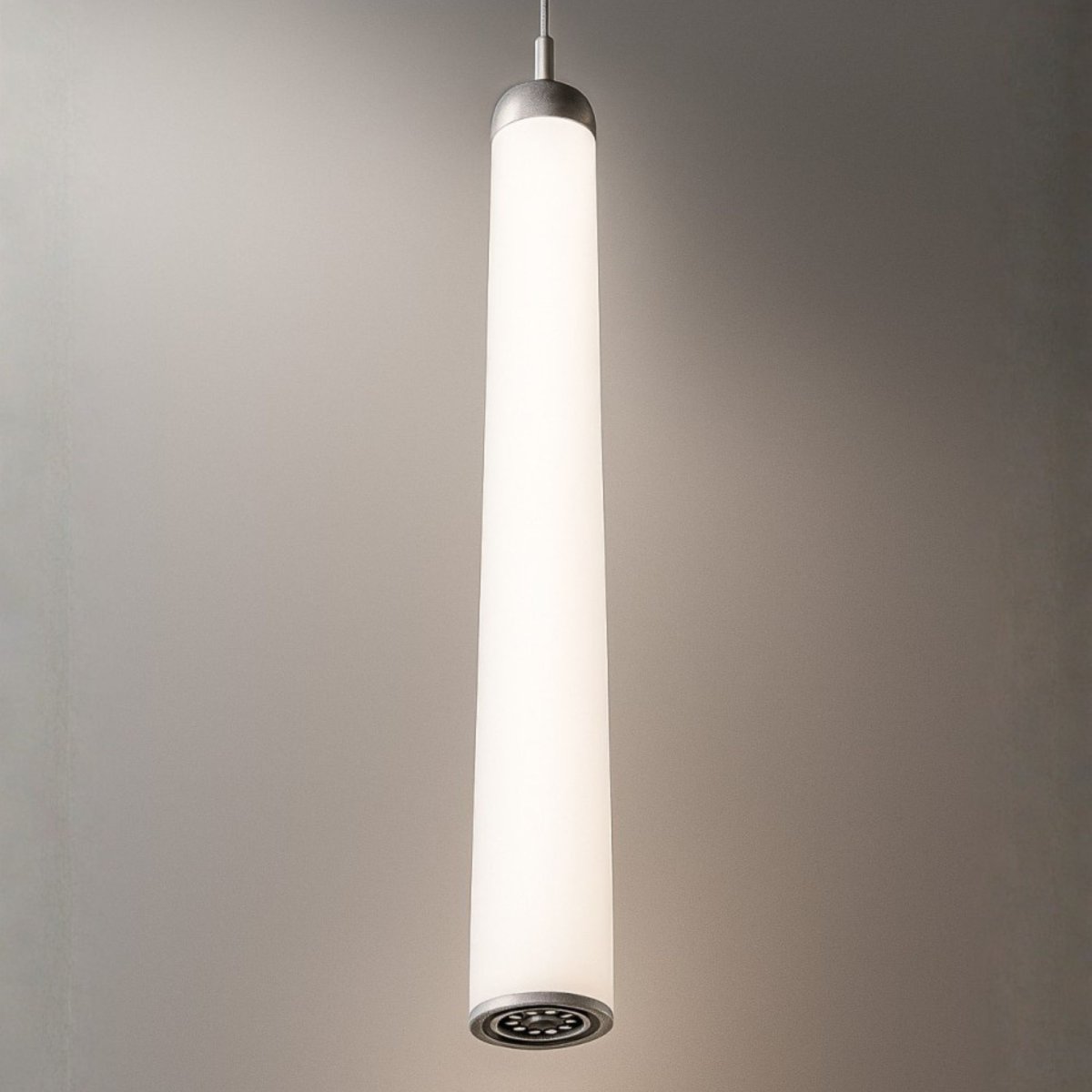

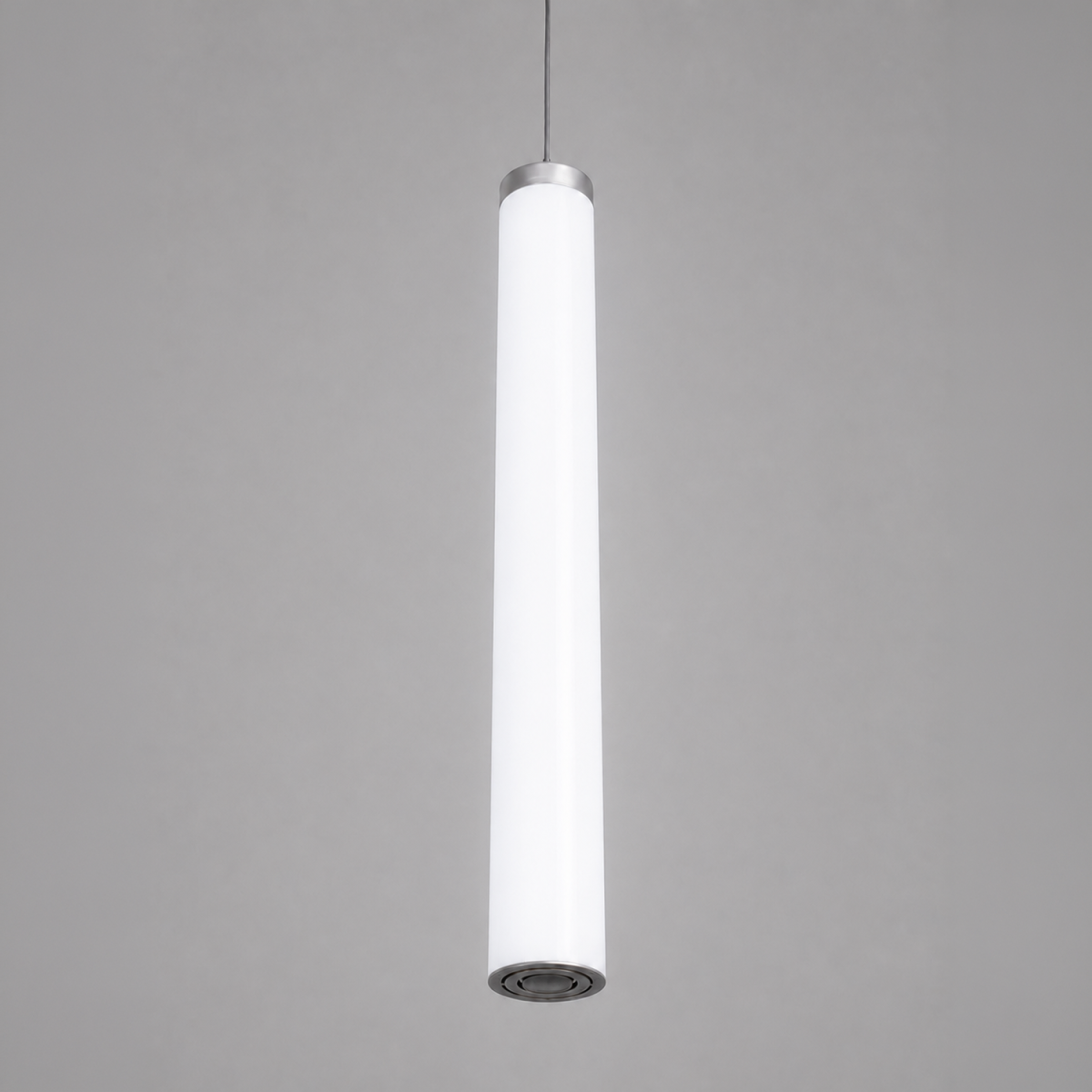

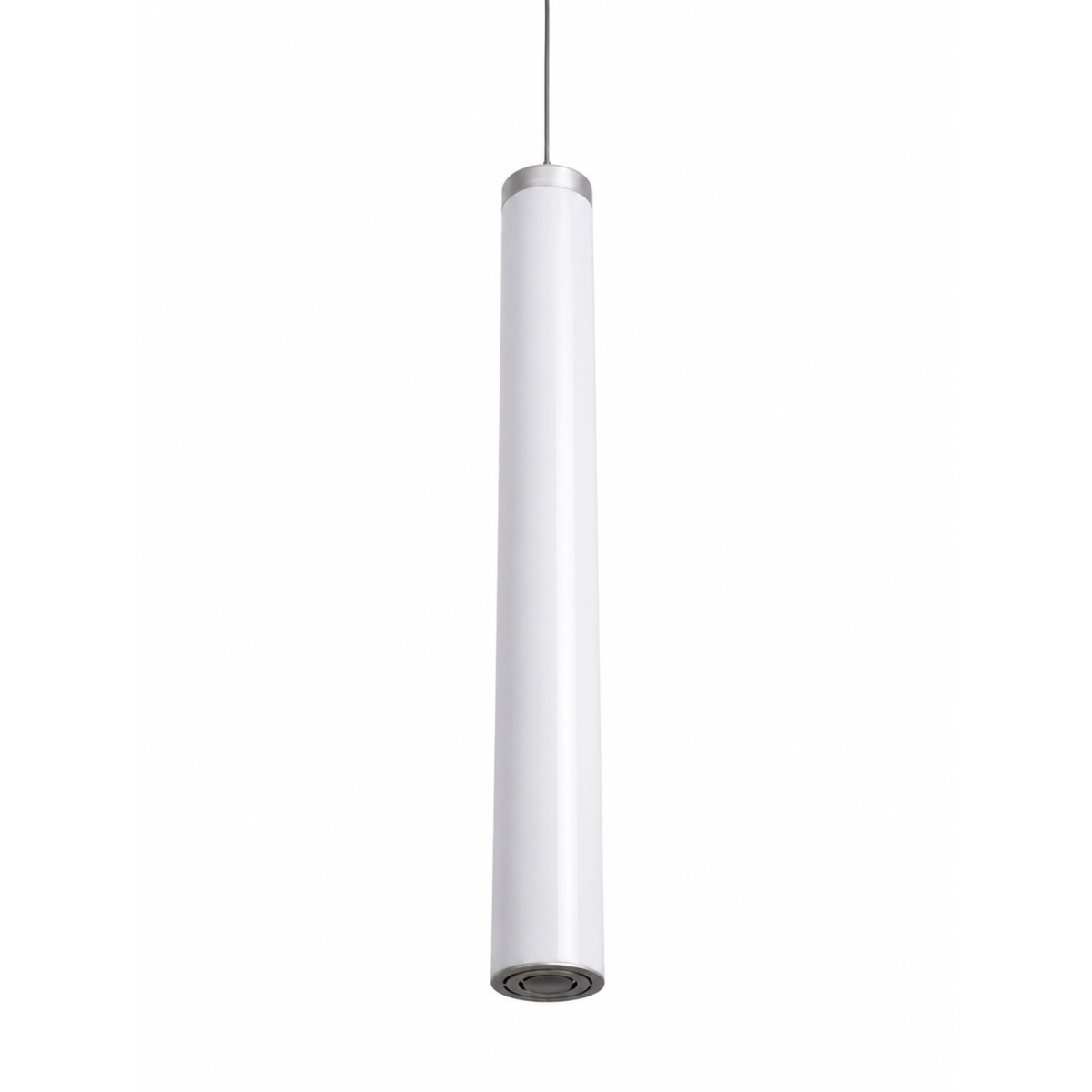

Icicle Pendant Light

Features:

- Aluminum extruded construction.
- 360º diffused illumination with white acrylic cylinder diffuser.
- Matte clear anodized aluminum finish.
- Natural bottom lit standard.
- Available in 2/3/4ft length.
- Remote driver standard, remote box provided.

Mounting:
- Low voltage cable mount (standard) to a 4” standard junction box.
- Low voltage cable length is field adjustable.

Diffuser:

- White acrylic cylinder diffuser.

LED:
- High quality array LEDs.
- Color Rendering Index: >80
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours.

Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- Standard 0-10V 1% - 100% dim.
- Minimum starting temperature: -4°F (-20°C) ~ 122°F (50°C).
- Max allowed distance from the LED driver to the bottom of the suspension length is 23FT with the provided 20AWG wire.

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

Listing:
- UL/CUL listed and labeled.
- Suitable for dry & damp locations.
- CEC Compliant EM (please contact for more information)
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- ARRA compliant (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- Bluetooth Mesh System available, please contact factory for more information.
