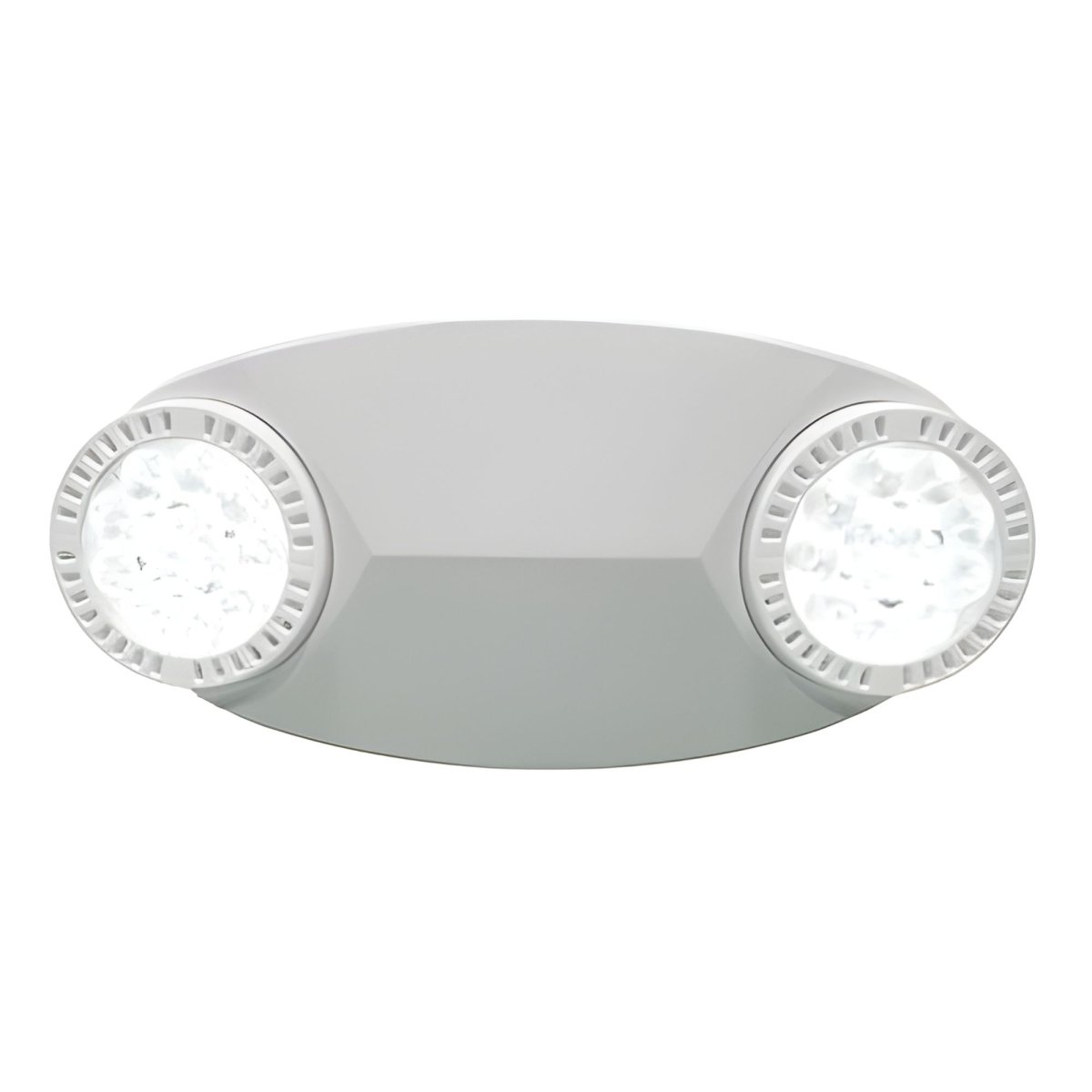

HPEM LED Emergency Light
- Injection-molded, engineering grade, 5VA flame retardant, highimpact resistant, thermoplastic in off white or black finish. Mounting: - Universal knockout pattern on back plate for surface mount. - Knockouts provided for conduit feed applications. - Suitable for wall or ceiling mount. Illumination: - Ultra-bright, energy efficient, long-life White LED adjustable lamp heads provide up to 100-ft center-to-center spacing with a 3-ft path of egress at 7-1/2-ft mounting height. - High performance chrome-plated metallized reflector and plastic lens. - 12.0 watt (12 LEDs x 1.0 watt) per head. - 1160 lumen output.
Contact us for availability and pricing information.
Need assistance?
HPEM LED Emergency Light
HPEM LED Emergency Light
Downloads & Resources
Product Overview
Electrical:
- Universal 120-277 voltage.
- Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 9.6V long-life, maintenance-free, rechargeable lithium iron phosphate battery.
- Remote capacity of 3.0 watts standard.
- Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Battery:
- 3.6V long-life, maintenance-free, rechargeable Ni-Cad battery on emergency (EM) units.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 90 minute emergency illumination.
Listing:
- Five-year warranty on all electronics and housing. Battery prorated for five years.
- Meets UL924, NFPA 101, Life Safety Code, NEC, OSHA, Local and State Codes.
- UL Listed for damp locations (0°C – 50°C).
- Certified to CEC under title 20 regulations.
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
