Frame LED T-Bar Light
The design of the frame light produces even, consistent shadowless light. The LEDs enable long life, high lumen maintenance, and are low maintenance and constructed without hazardous materials. Sleek and modern design is suitable for offices, retail, schools, restaurants, healthcare, residential and hospitality applications.
Contact us for availability and pricing information.
Need assistance?
Frame LED T-Bar Light
Frame LED T-Bar Light
Downloads & Resources
Product Overview
The design of the frame light produces even, consistent shadowless light. The LEDs enable long life, high lumen maintenance, and are low maintenance and constructed without hazardous materials. Sleek and modern design is suitable for offices, retail, schools, restaurants, healthcare, residential and hospitality applications.
Features:
- FRAME comes in 2x2, and 2x4 options, offering a sleek, modern look with top-notch functionality.
- Cutting-edge optical tech, it matches the lighting specs of traditional LED panels.

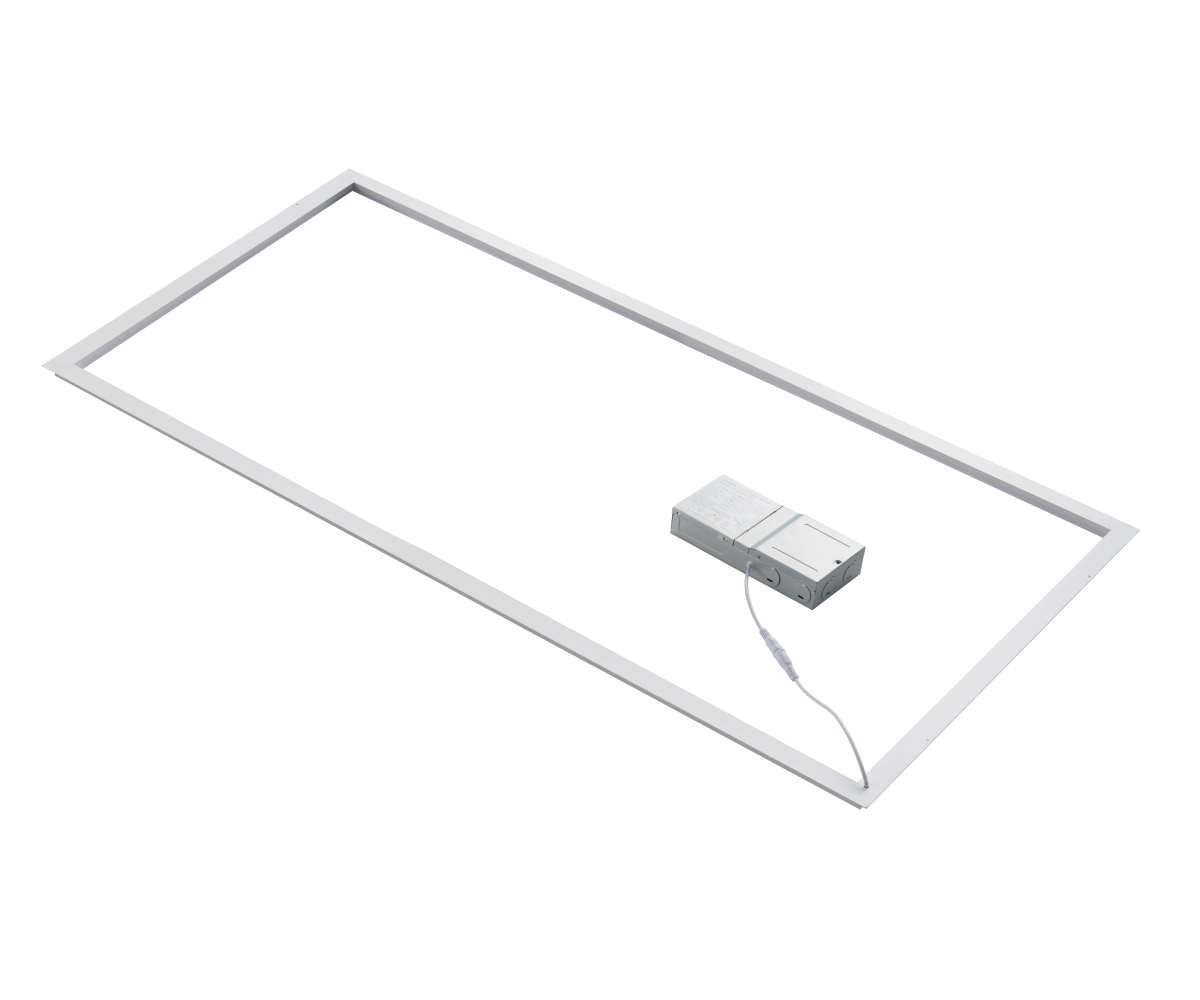

- The external driver ensures steady performance and long lifetime.
- Fixture is suitable for recessed mounting with T-bar.
- Optional suspended mount available.
- Aluminum with white powder coated finish.
- Slim profile and low weight design.
- White finished.
LED:
- Lumen efficiency ≥ 125 lm/W
- Field adjustable color temperature: 3000/3500/4000/5000/6500(K)
- CRI: Ra>80.
- Service life: Greater than 60,000 hours minimizing maintenance frequency.
Electrical:
- High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
- Short circuit protection.
- 0-10V Dimming. (10%-100%.)
- Power Factor: >0.9
- THD: <10%
- IP Rating: IP40
- Beam angle: 120°
- Ambient Operating Temperature: -4°F (-20°C) ~ 113°F (45°C).
Listing:
- ETL listed.
- DLC premium listed.
- 5 year warranty.
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
