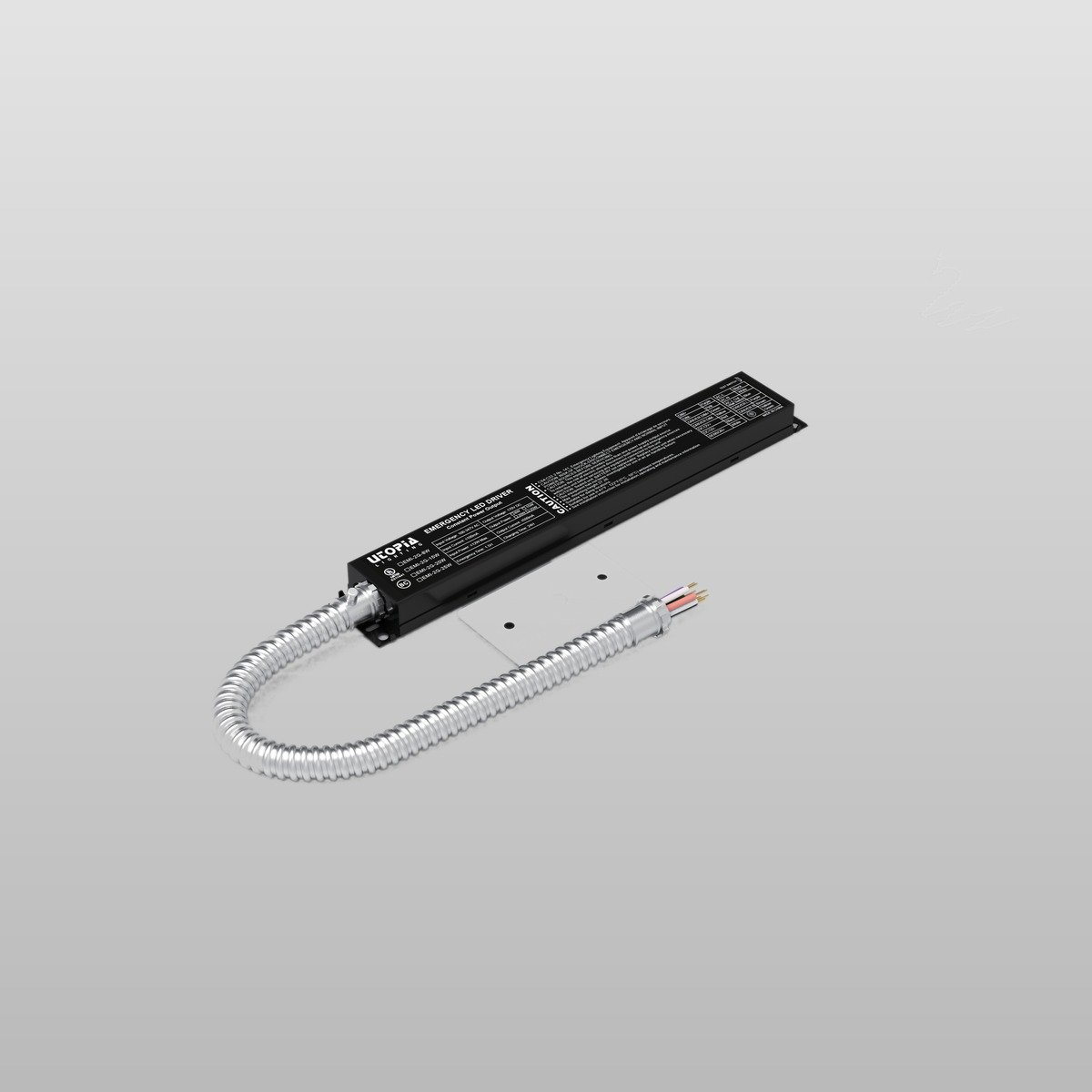

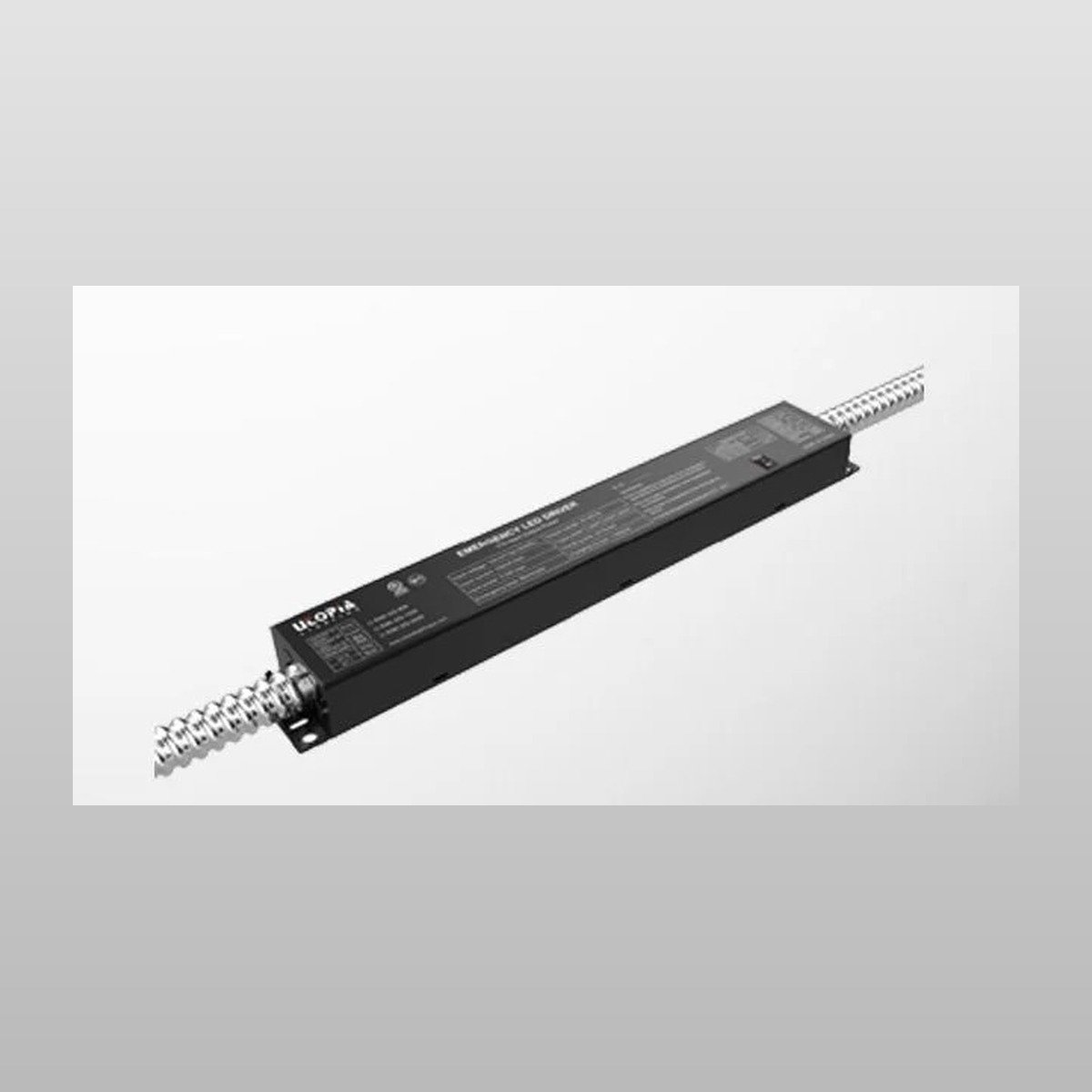

EMI-2G Emergency LED Driver

Features

• UL listed for factory and field installation.
• Easy direct wiring to AC input of LED fixtures — saves time and money on the jobsite.
• Ideal for 0–10V dimmable indoor LED lights up to 100W.
• Constant power output — maintains illumination level for the full emergency runtime with no degradation.
• Universal input: 100–347Vac, 50/60Hz.
• High voltage output: 170Vdc.
• Self-testing monthly/yearly — meets or exceeds all NEC, IBC, and Life Safety Code emergency lighting requirements.
• Suitable for dry and damp locations.
• Low energy charger — CEC Title 20 compliant.
• RoHS compliant.

Electrical (by model)

• EMI-2G-8W: 8W output | 60W max luminaire power | 170Vdc output.
• EMI-2G-15W: 15W output | 100W max luminaire power | 170Vdc output.
• EMI-2G-20W: 20W output | 100W max luminaire power | 170Vdc output.
• EMI-2G-25W: 25W output | 150W max luminaire power | 170Vdc output.
• Input: 100–347Vac, 50/60Hz | Input current: ≤100mA | Input power: 12W max.
• Battery: Lithium | Emergency time: ≥90 minutes | Recharge time: ≥24 hours.
• Operating temperature: 0°C to +50°C (32°F to 122°F).

Physical

• Case: 12.91" x 1.97" x 0.94" (328mm x 50mm x 24mm). Mounting center: 12.40".

Applications

• LED panels, troffers, downlights, linear lights, linear high bays, and UFO high bays.

Listing

• UL Listed (E511841).
• BC (cUL) Certified.
• CEC Title 20 Compliant.
• Constant Power Certified.
• RoHS Compliant.
