EMG-2G-25W

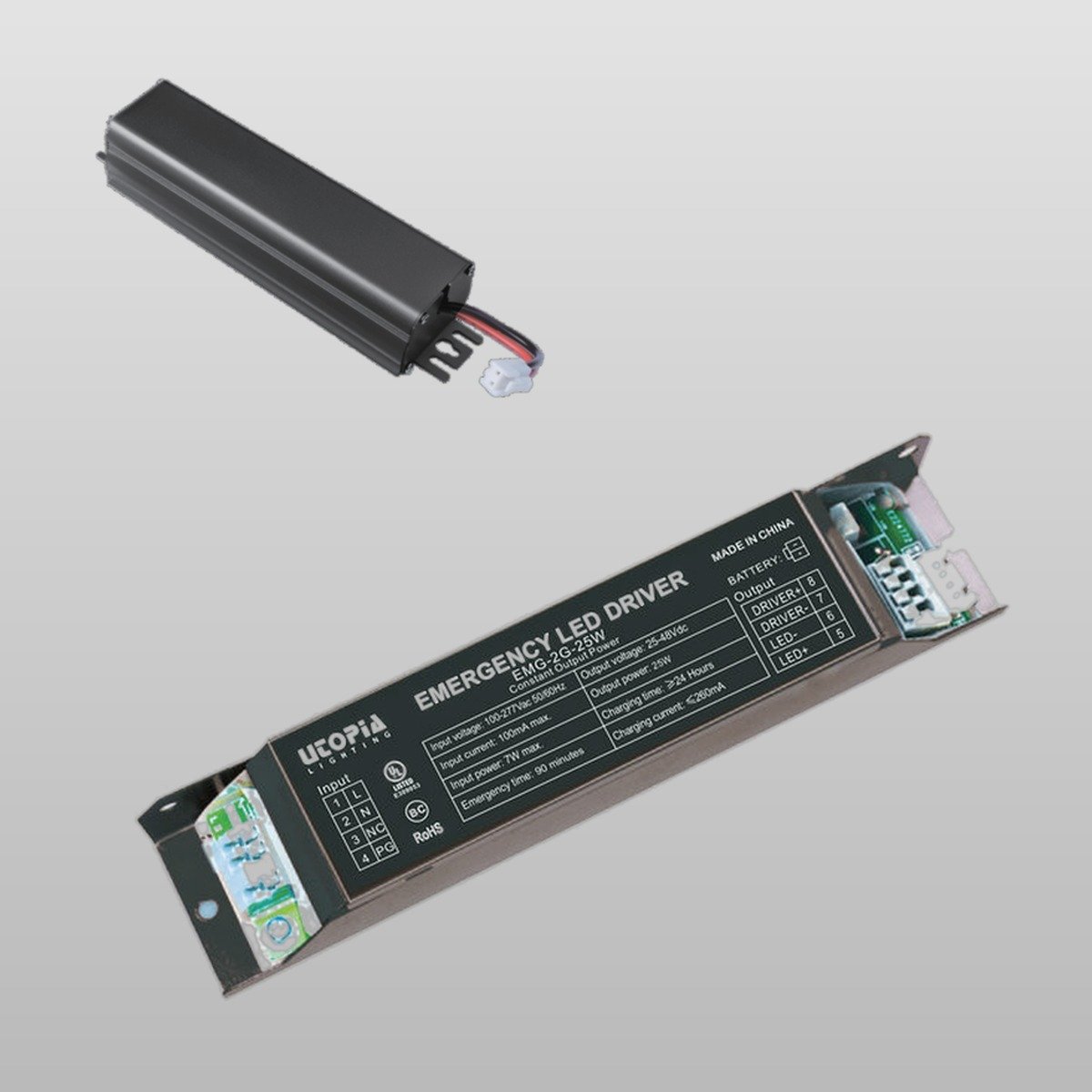

EMG-2G-25W Emergency LED Driver
The EMG-2G-25W is a 25W constant output power emergency LED driver with intelligent auto-detection, delivering a minimum 90 minutes of emergency illumination upon AC power loss.
Inventory and Lead Time
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Call us at
(866) 471-7711
Product Configurator
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
Ordering Code
Make your selections to build the code
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
EMG-2G-25W Emergency LED Driver
EMG-2G-25W Emergency LED Driver
Contact for Pricing
Downloads & Resources
Product Overview
Features
- Meets most safety standards for lighting.
- CSA C22.2 No. 141 and UL 924 listed.
- Internal lithium-ion battery with overcharge, over-discharge, and short circuit protection.
- Intelligent emergency automatic detection function.
- Constant output power — auto-sensing output within each range.
- Tri-color indicator (Red, Green, Yellow) shows a variety of operating states.
- Battery rated for 500 cycles per standard CH and DCH.
- RoHS compliant.
- Emergency runtime: ≥90 minutes.
- 5-year warranty.
Electrical
- Input: 100–277Vac, 50/60Hz.
- AC input current: 100mA max. | AC input power: 7.0W max.
- Output: 25W | 520–1000mA, 25–48Vdc.
- Battery: Li-ion 14.8V / 3300mAh.
- Battery charging current: 250mA | Charge time: ≥24 hours.
- Operating temperature: 0°C to +50°C (32°F to 122°F).
Physical
- Case: 7.4" x 1.5" x 1.1" (188mm x 38mm x 29mm).
- Weight: 1.2 lbs (0.55 kg).
- For indoor use only.
Listing
- UL Listed (E511841).
- BC (cUL) Certified.
- RoHS Compliant.
Specifications
Ordering Information
- UL Listed: Yes
