EMG-2G-20W

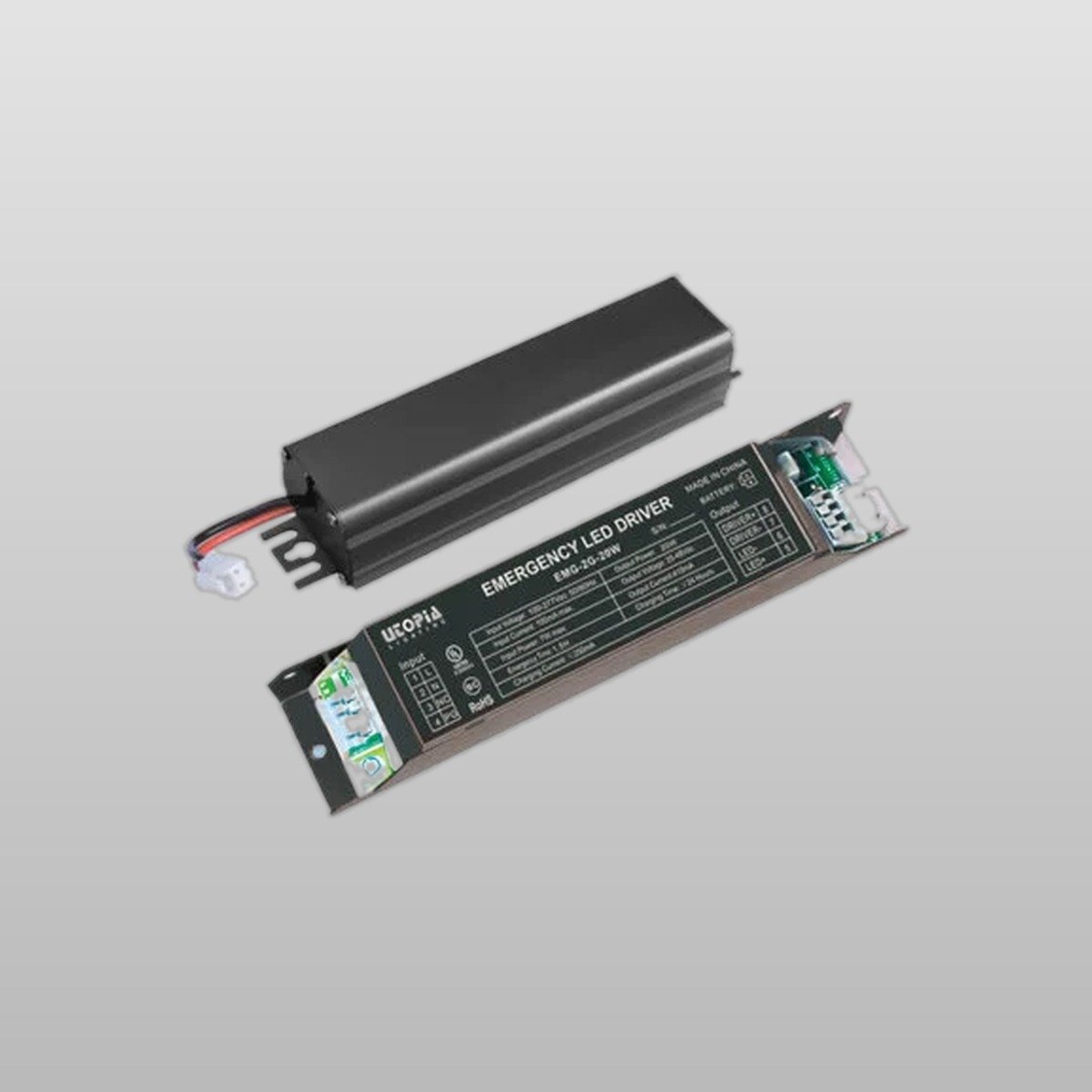

EMG-2G-20W Emergency LED Driver
The EMG-2G-20W is a 20W emergency LED driver that provides automatic battery backup for LED luminaires, delivering a minimum 90 minutes of emergency illumination upon AC power loss.
Inventory and Lead Time
Contact us for availability and pricing information.
Need assistance?
Call us at
(866) 471-7711
EMG-2G-20W Emergency LED Driver
EMG-2G-20W Emergency LED Driver
Contact for Pricing
Downloads & Resources
Product Overview
Features
- Meets most safety standards for lighting.
- CSA C22.2 No. 141 and UL 924 listed.
- External lithium-ion battery with overcharge, over-discharge, and short circuit protection.
- Multi-mode indicator light shows a variety of operating states.
- Battery rated for 500 cycles per standard CH and DCH.
- RoHS compliant.
- Emergency runtime: ≥90 minutes.
- 5-year warranty.
Electrical
- Input: 100–277Vac, 50/60Hz.
- AC input current: 100mA max. | AC input power: 7.0W max.
- Output: 20W | 410mA, 25–48Vdc.
- Battery: Li-ion 11.1V / 4000mAh.
- Battery charging current: 250mA max. | Charge time: ≥24 hours.
- Operating temperature: 0°C to +40°C (32°F to 104°F).
Physical
- Case: 7.4" x 1.5" x 1.1" (188mm x 38mm x 29mm).
- Battery pack: 18.4" x 2.34" x 1.31".
- Weight: 1.1 lbs (0.5 kg).
- For indoor use only.
Listing
- UL Listed (E309053).
- BC (cUL) Certified.
- RoHS Compliant.
