EMG-2G-15W-SDT

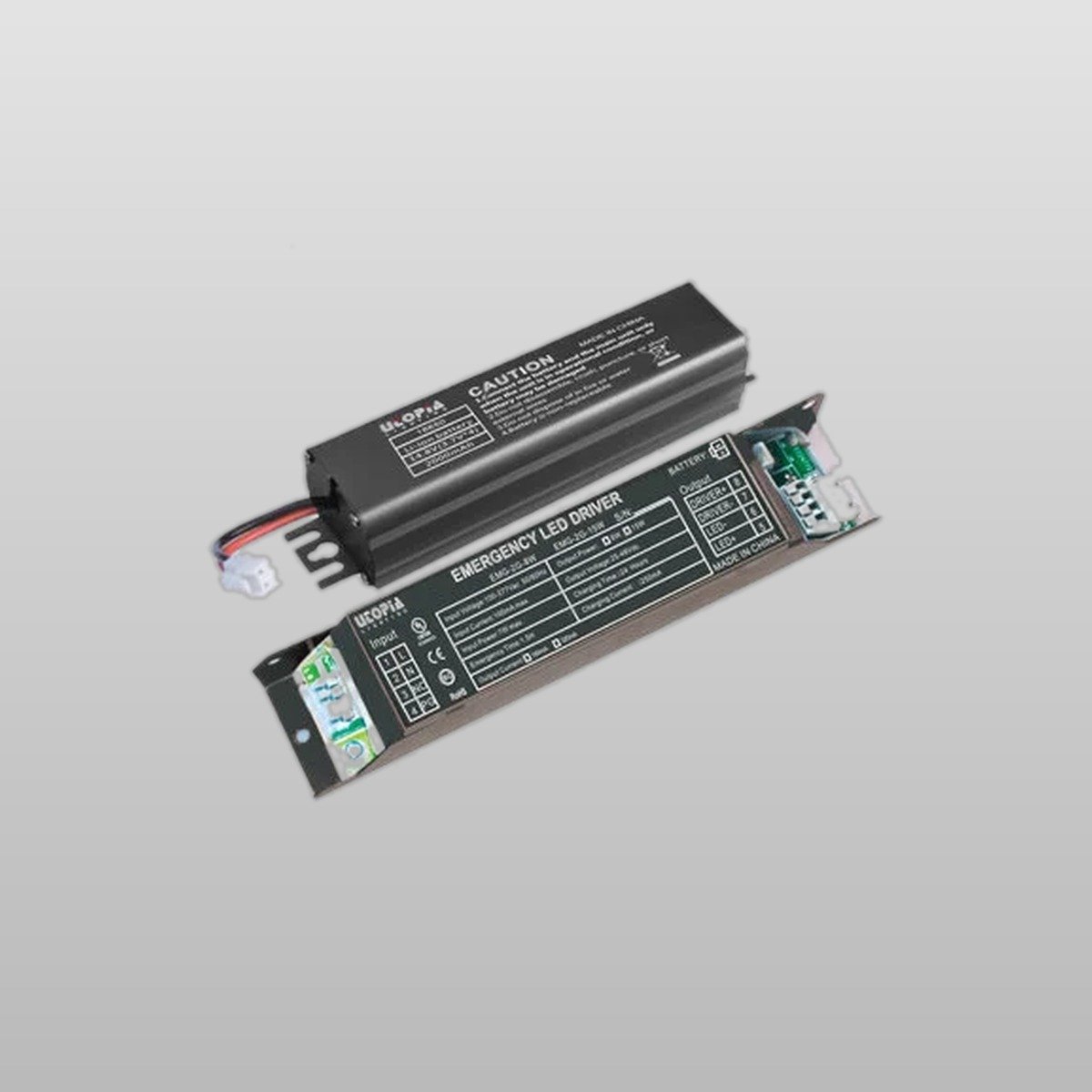

EMG-2G-15W-SDT Emergency LED Driver with Self-Test
The EMG-2G-15W-SDT is a 15W constant power emergency LED driver with automatic self-diagnostic testing, providing monthly/yearly self-tests and a minimum 90 minutes of emergency illumination.
Inventory and Lead Time
Contact us for availability and pricing information.
Need assistance?
Call us at
(866) 471-7711
EMG-2G-15W-SDT Emergency LED Driver with Self-Test
EMG-2G-15W-SDT Emergency LED Driver with Self-Test
Contact for Pricing
Downloads & Resources
Product Overview
Features
- UL listed for field or factory installation.
- Constant output power — auto-sensing output within each range.
- Safe, low voltage Class 2 output.
- Self-Test automatically per month/year.
- Provides emergency lighting for a minimum of 90 minutes.
- Universal input: 100–277Vac, 50/60Hz.
- 2-in-1 design test switch and indicator light.
- Low energy charger (CEC Title 20 compliant).
- RoHS compliant.
- 5-year warranty.
Electrical
- Input: 100–277Vac, 50/60Hz | Input current: 100mA max. | Input power: 7.0W max.
- Output: 15W | 310–600mA, 25–48Vdc.
- Battery: Lithium-ion | Recharge time: ≥24 hours.
- Operating temperature: 5°C to +50°C (41°F to 122°F).
Applications
- Suitable for LED linear strip, architectural light, vapor tight, LED panel, and LED troffer fixtures.
- For dry and damp locations.
Listing
- UL Listed (E511841).
- BC (cUL) Certified.
- CEC Title 20 Compliant.
- DAMP rated.
- RoHS Compliant.
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
