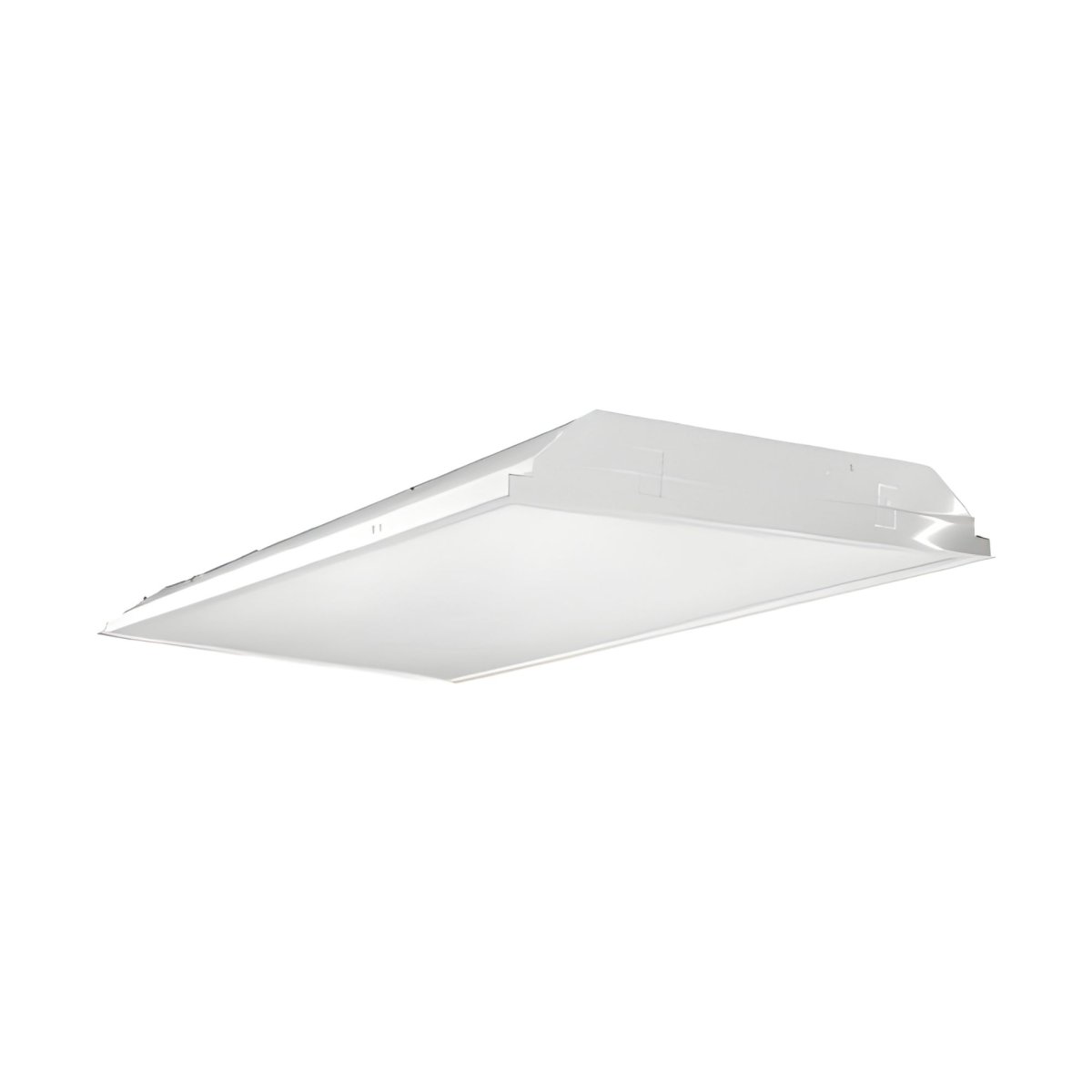

ELT-WT Wet Rated Recessed Lay-In Light
A low-profile ELT-WT LED recessed troffer is available in three sizes including 1’x4’, 2’x2’, and 2’x4’ and suitable for both flange and grid installations. An acrylic lens offers durability and enhances general illumination, ideal for commercial and institutional environments such as showers, bathrooms, locker rooms, recreational facilities, and other applications needing a wet location listing.
Contact us for availability and pricing information.
Need assistance?
ELT-WT Wet Rated Recessed Lay-In Light
ELT-WT Wet Rated Recessed Lay-In Light
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
A low-profile ELT-WT LED recessed troffer is available in three sizes including 1’x4’, 2’x2’, and 2’x4’ and suitable for both flange and grid installations. An acrylic lens offers durability and enhances general illumination, ideal for commercial and institutional environments such as showers, bathrooms, locker rooms, recreational facilities, and other applications needing a wet location listing.
Features:
- 100% acrylic, clear prismatic, pattern #12 with minimum 0.125” thickness A12 lens as standard.
- Sealed with gaskets between the lens, door frame and housing guard against moisture.
- Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
- Aluminum door frame is standard. Unique door frame design delivers a premium extruded appearance. Smooth edges for easy handling. Powder-painted, door steel latches provide easy, secure door closure.
- Painted parts finished with high-gloss baked white enamel over rust inhibiting phosphate coating.
- PAF (Painted After Fabrication) finish is standard for corrosion resistance and efficiency.
Mounting:
- Recessed ceiling mount.
- Compatible with most ceiling types.
- Field installed flange kit. (available as option)
LED:
- High quality array LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Color Rendering Index: > 80
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours
Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- Universal Lighting Everline : 0-10V Dim to 1%(ULT)
- Generic : 0-10V 10% dim. (GR)
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).
ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
Listing:
- UL/CUL listed and labeled for use in wet location(covered ceiling only).
- Listed to UL 1598 and UL 8750.
- Recessed Luminaires.
- Suitable for wet locations (Covered ceiling only).
- CEC Compliant EM (please contact for more information).
- 5 years limited warranty.
- RGB+W has 2 years limited warranty. - 7 or 10 years limited warranty. (optional)
- ARRA compliant (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- Bluetooth Mesh System available, please contact factory for more information.
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
