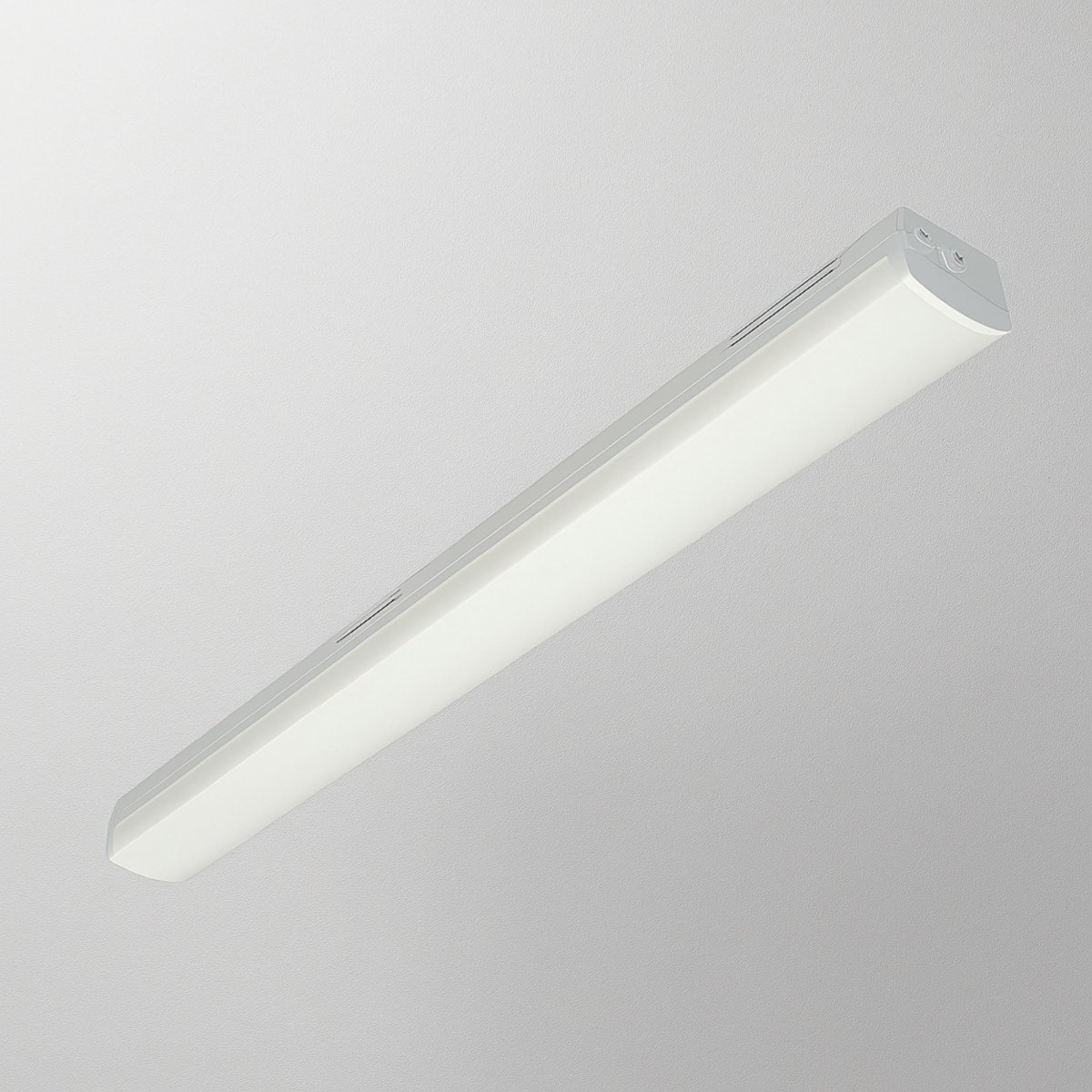

ELS-2G Surface Mount LED Strip

Features:

- Die-formed steel channel with knock-outs for versatile configuration and simple mounting.
- One continuous lens for 8-feet fixtures.
- All Steel surfaces are painted after fabrication with high gloss baked white matte powder paint.
- Frosted lens.
- Field adjustable wattage and color temperature.
- 8.0% uplight.
- Paint after fabrication.
- Sheet metal stamping.

Mounting:

- Fixture is wall or surface mounted or pendant mounted, or suspended mounted with chains. (V-hook and chain kit is ordered separately)
- Compatible with most ceiling types.

LED:

- Long-life, high-efficacy, micro-power LEDs.
- Field adjustable color temperature: 3500/4000/5000(K)
- Color Rendering Index: > 80
- Field adjustable wattage.
- Reported L70 (hours): >100,000

Electrical:

- High power factor electronic driver, operate from a 120 ~ 277 Vac input range.
- Features included over surge protection.
- Power Factor: typical > 0.90, THD <20.
- Dimming Control: 0-10V 10%~100%.
- The dim-to-off voltage threshold of optional 12V AUX integrated driver ranges from 0.1V to 0.5V.
- Operating Temperature: -4°F (-20°C) ~ 122°F (50°C).

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

Listing:
- UL listed and labeled.
- Suitable for damp locations.
- DLC listed.
- CEC Compliant EM (please contact for more information)
- 5 years warranty.
- ARRA compliant (optional).
