EB3 Recessed Linear Light

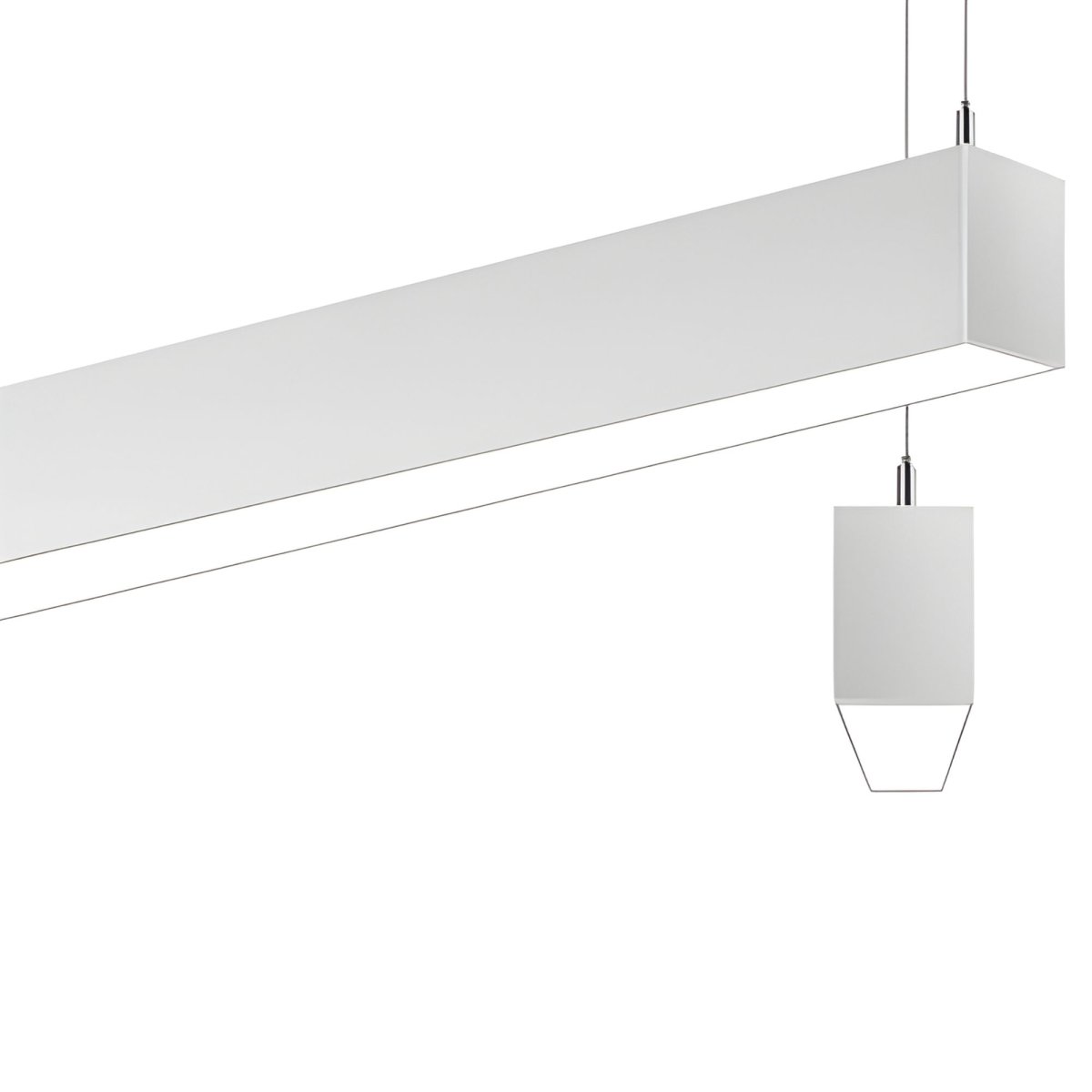

EB3-recessed is a featured Architectural Linear fixture. Housing is formed by extruded aluminum with field adjustable color temperatures, and up and down distribution. Ideal for commercial, general office, bank, retails and educational environments.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
EB3 Recessed Linear Light
EB3 Recessed Linear Light
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
EB3-recessed is a featured Architectural Linear fixture. Housing is formed by extruded aluminum with field adjustable color temperatures, and up and down distribution. Ideal for commercial, general office, bank, retails and educational environments.
Features:
- Aluminum extruded housing.
- Field AB switching is standard (CCT, up/down control).
- Available in White only.
- Operating temperature: -4ºF ~ 122ºF (-20ºC ~ 50ºC)
Mounting:
- AC cable pedant mount (AC120 standard).
Lens:
- 0.05” thickness PC frosted lens for both up and down.
- Beam angle 120º.
LED:
- High quality array LEDs.
- CRI >80
- Field adjustable CCT: 3000/3500/4000K
- Max. 50W total (selectable 35W down, 50W up and down, 15W up).
- L70: >50,000 hours
Electrical:
- 0-10V dimming standard.
- 120-347Vac, 50/60Hz
- THD: <20%
- PF : >0.9
- Class 2
Listing:
- ETL listed.
- Suitable for damp & dry location.
- 5 years limited warranty.
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant:
- cULus Listed: Yes
Performance Data
- Casambi Ready®: Yes
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
