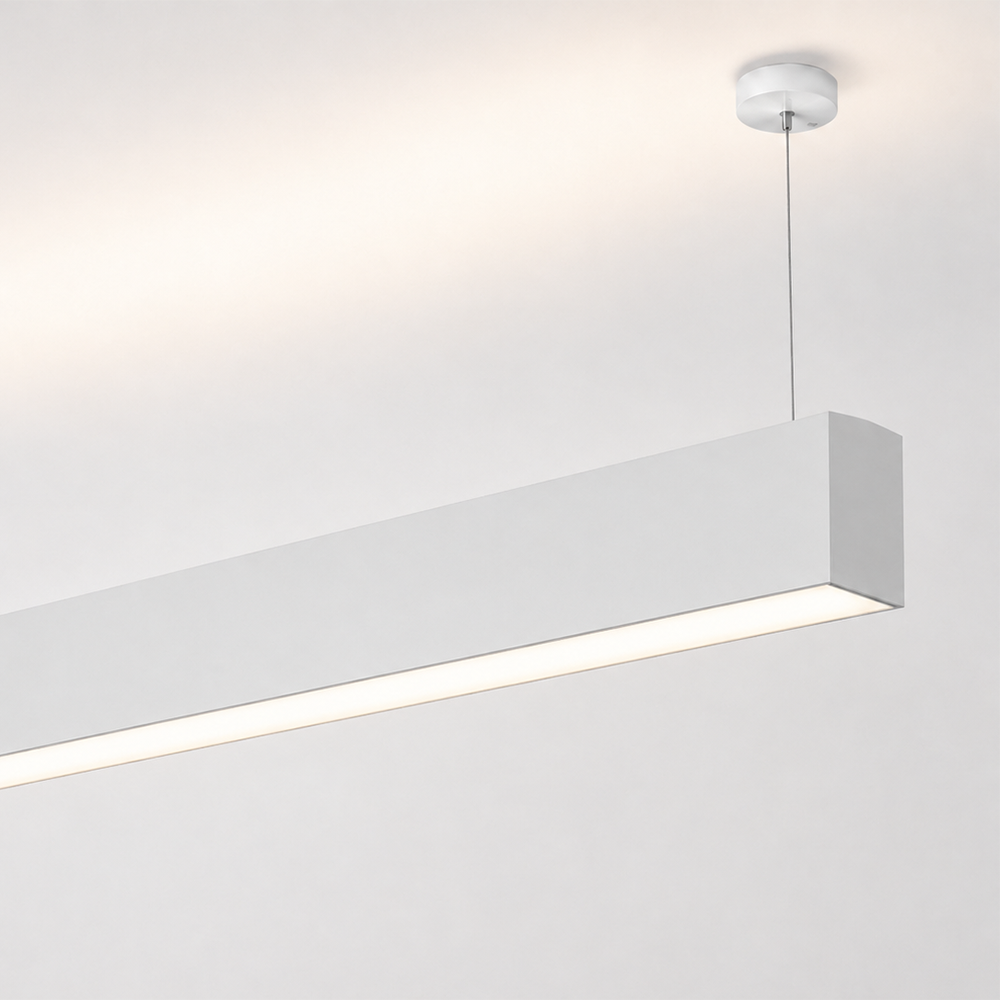

EB2 Edge Beam Linear Pendant Light

Features

• Two lighting distributions via visible DIP switch: 25% up/75% down or 100% down.
• CCT and wattage adjustable by visible DIP switch.
• Continuous runs or custom pattern with optional Line, L, X, T, Y, V joiners.
• Drywall ceiling or T-Grid ceiling compatible.
• Pendant mount.
• cULus listed, damp locations, and 5-year limited warranty.
• Field adjustable; quick ship; selectable wattage; adjustable CCT 3000K / 3500K / 4000K.

Mounting

• Ceiling / off grid: various hard ceilings, mount to J-box.
• Drop ceiling / on grid: mounts to T-grid. Compatible for 9/16" flat, 9/16" slot, and 15/16" flat ceiling.
• Pendant accessories for drywall ceiling: canopy kits, power cord kits, aircraft cable kits.
• Pendant accessories for drop ceiling: canopy kits, junction box, power cord kits, aircraft cable kits, and T-grid clips.
• Individual or continuous run: up to 40ft in 120V AC, 100ft in 277V AC.

LED

• 90+ CRI standard.
• CCT adjustable: 3000K / 3500K / 4000K.
• Wattage selectable by length: 2ft = 20W/15W/10W; 4ft = 40W/30W/20W; 8ft = 80W/60W/40W.
• White finish efficacy: 580–1170 lm/ft (up to 1200 lm/ft max output).
• Black finish efficacy: 480–970 lm/ft.

Electrical

• 0-10V dimming: dims to 10%, 110-277V AC.
• Damp rated: -20°C to +40°C (-4°F to +104°F).
• Tested dimmers: Lutron Diva-Dvtv and Leviton IP710-DL.

Listing

• cULus listed.
• Damp locations.
• 5 years limited warranty.
