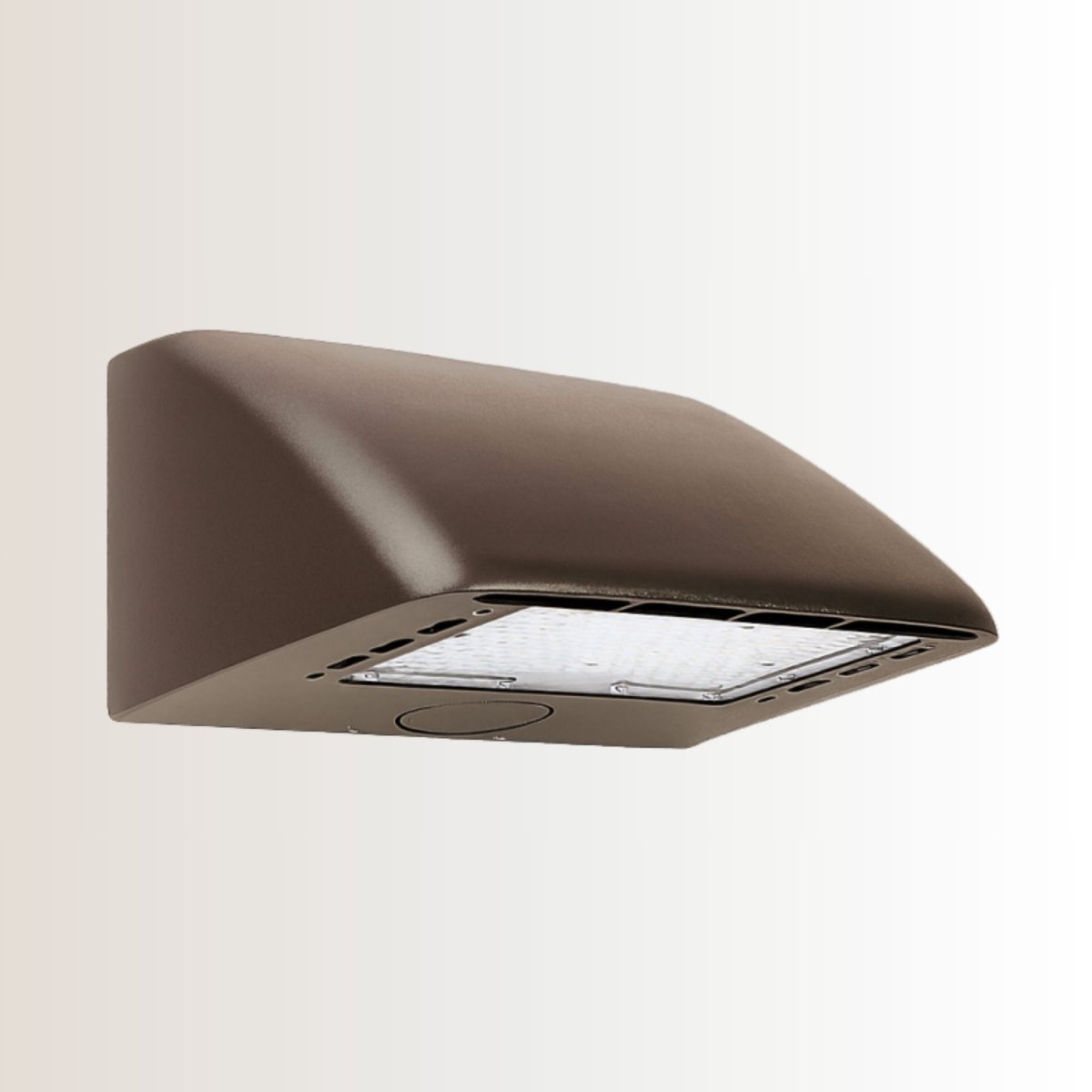

DWP2 4G LED Wall Pack
Cast in a modern and low-profile design, DWP2-4G is easily customized to fit every building’s design aesthetic and a mix of architectural styling and energy savings. It’s ideal for illuminating commercial office buildings, warehouses, campuses, shopping malls and other office complexes.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
DWP2 4G LED Wall Pack
DWP2 4G LED Wall Pack
Downloads & Resources
Product Overview
Cast in a modern and low-profile design, DWP2-4G is easily customized to fit every building’s design aesthetic and a mix of architectural styling and energy savings. It’s ideal for illuminating commercial office buildings, warehouses, campuses, shopping malls and other office complexes.
Features:
- Sealed die-casting profile for outdoor applications.
- Casting thermally conducts LED heat to optimize performance and long life.
- Suitable for applications requiring 3G testing prescribed by ANSI C136.31.
- Zero uplight distributions.
- High performance UV stabilized optical grade polymer refractor lenses to achieve desired distribution optimized to get maximum spacing, target lumens and superior lighting uniformity.
- Dark bronze finish is standard.
Mounting:
- Surface mounting only.
LED:
- Scalable Lumen Packages from 3,600 to 9,100 Lumens.
- Zero uplight distributions using individual acrylic.
- Color temperature: 3000/4000/5000 (K)
- Color rendering index: >70
- Life span: 50,000 hrs
- Lumen Maintenance L70 greater than 100,000 hours IESNA TM-21.
Electrical:
- 1-10V Dimming.
- Input voltage: Universal 120-277
- Operating temperature: -40°C to 40°C (-40˚F to 104˚F)
- Power factor >90%, THD <20%.
- Optional: Photocell, Emergency Battery
- Power Factor: >0.9
Listing:
- DLC listed.
- UL cUL wet location listed.
- IES LM-79, LM-80 and TM-21 calculation.
- 5 years limited warranty.
- ARRA compliant. (optional)
- TAA compliant. (optional)
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant:
- TAA Compliant (Trade Agreements Act): Yes
- DLC Listed: Yes
- cULus Listed: Yes
Performance Data
- Wet Location Approved: Yes
- Casambi Ready®: Yes
