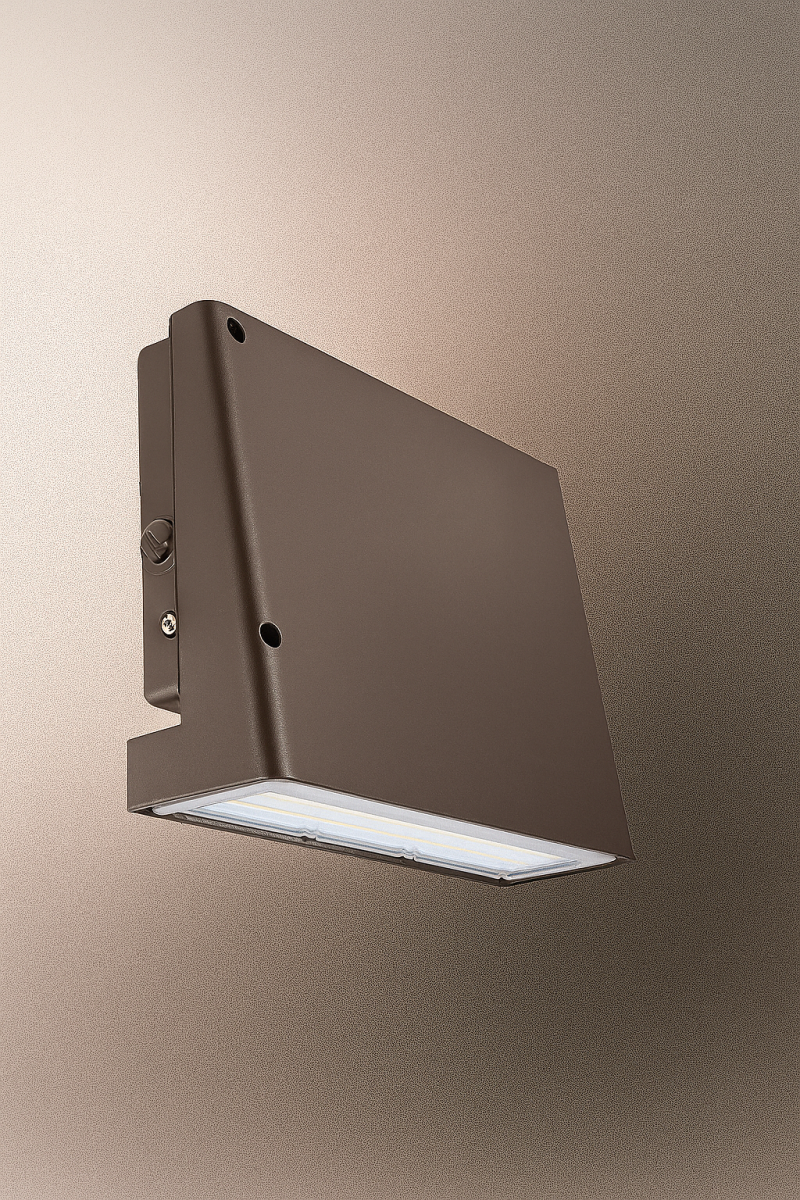

DWP2 3G LED Wall Pack

Features:

- Two-piece die-cast aluminum housing secures the thermally conductive LED panel and electrical chamber.
- Casting thermally conducts LED heat to optimize performance and long life.
- Suitable for applications requiring 3G testing prescribed by ANSI C136.31.
- Anti-UV polycarbonate translucent lens is designed to shape the light distribution and uniformity.
- Zero uplight distributions.
- Dark bronze finish is standard.

Mounting:

- Wall mounting only.
- DWP2-3G can be mounted directly over a standard 4” and 5” electrical junction box.
- Three 1/2 inch conduit holes on three sides allow for surface conduit wiring.

LED:

- Scalable Lumen Packages from 3,800 to 20,000 Lumens can replace up to 400W MH.
- Color temperature: 3000/4000/5000 (K)
- Color rendering index: >70
- Life span: 50,000 hrs
- Lumen Maintenance L70 greater than 100,000 hours IESNA TM-21.

Electrical:

- 1-10V dimmable.
- Input voltage: Universal 120-277
- Operating temperature: -40°C to 40°C (-40˚F to 104˚F)
- Power factor >90%, THD <20%.
- Optional: Photocell, Emergency Battery
- Power Factor: >0.9

Listing:
- UL cUL wet location listed.
- IES LM-79, LM-80 and TM-21 calculation.
- 5 years limited warranty.
- ARRA compliant. (optional)
