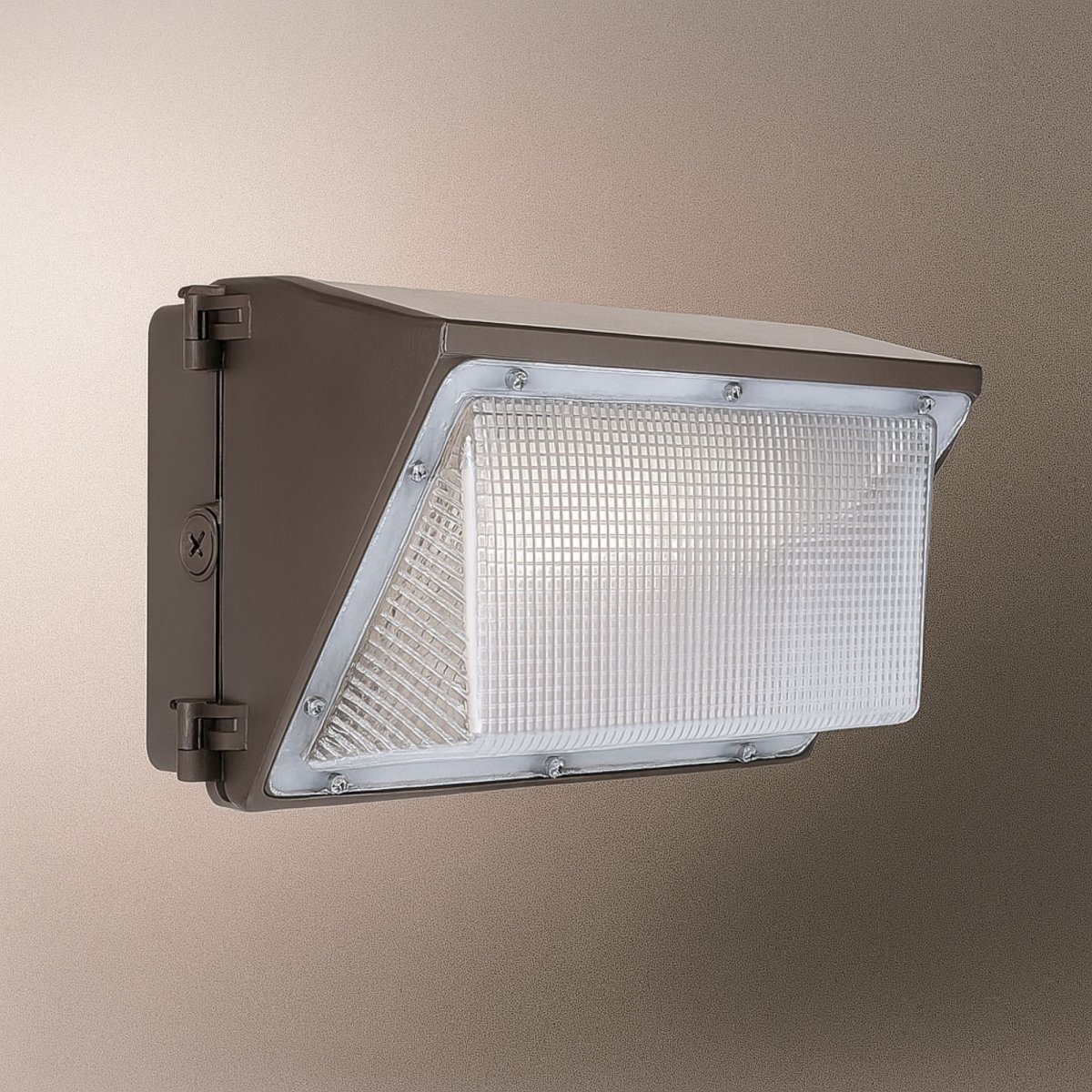

DWP1 3G LED Wall Pack
The UV stabilized polycarbonate lens LED wall pack is ideal for security, pathway and perimeter lighting, and building entryways and walkways.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
DWP1 3G LED Wall Pack
DWP1 3G LED Wall Pack
Downloads & Resources
Product Overview
The UV stabilized polycarbonate lens LED wall pack is ideal for security, pathway and perimeter lighting, and building entryways and walkways.
Features:
- Sealed die-casting housing.
- Casting thermally optimizes performance and long life.
- Suitable for applications requiring 3G vibration test according to ANSI C136.31
- Dark bronze finish is standard.
- Field adjustable wattage and CCT.
Mounting:
- Wall mounting only.
Cover:
- UV stabilized polycarbonate lens.
- High performance UV stabilized optical grade polymer refractor lens to achieve desired distribution optimized to get maximum spacing, target lumens and uniformity.
LED:
- Lumileds 2835 LED chips.
- Color temperature: field adjustable 30/40/50K
- Lumen efficiency: ≥130m/W
- Color rendering index: >70
- Life span: 50,000 hrs
- Lumen Maintenance L70 greater than 100,000 hours IESNA TM-21.
Electrical:
- 1-10V dimmable.
- Input voltage: 120-277Vac., 50/60Hz
- Operating temperature: -40ºC to 40ºC (-40ºF to 104ºF)
- Operating temperature with EM: 10ºC to 40ºC (50ºF to 104ºF)
- Power factor >0.9, THD <20%
Listing:
- UL / cUL wet location.
- DLC listed.
- 5 years limited warranty.
- ARRA compliant. (optional)
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant:
- DLC Listed: Yes
- cULus Listed: Yes
Performance Data
- Wet Location Approved: Yes
- Vandal Resistant: Yes
- Casambi Ready®: Yes
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
