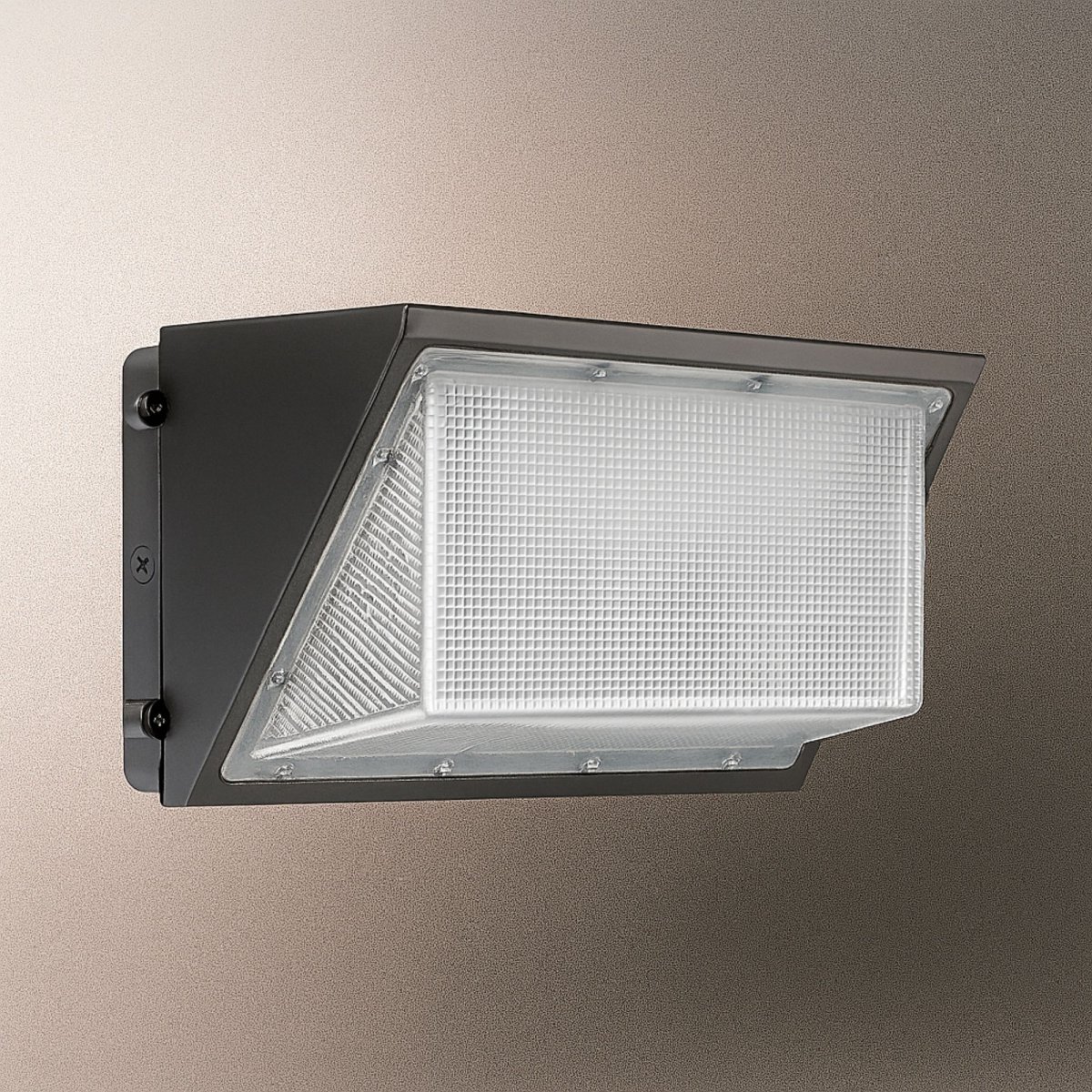

DWP1 2G LED Wall Pack
The full-cutoff polycarbonate optical lens with UV stabilizers lens LED wall pack is ideal for security, pathway and perimeter lighting, and building entryways and walkways.
Contact us for availability and pricing information.
Need assistance?
DWP1 2G LED Wall Pack
DWP1 2G LED Wall Pack
Downloads & Resources
Product Overview
The full-cutoff polycarbonate optical lens with UV stabilizers lens LED wall pack is ideal for security, pathway and perimeter lighting, and building entryways and walkways.
Features:
- Sealed die-casting profile for indoor and outdoor.
- Housing with 3 pieces of 1/2” threaded hole for easier wire connections.
- Dark bronze finish is standard.
- Operating temperature: -40ºF (-40ºC) to 104ºF (40ºC)
Mounting:
- Wall mounting only.
- Suitable for junction box mounting and surface mounting.
Cover:
- Polycarbonate clear optical lens with UV stabilizers prevent from yellowing and deformation.
LED:
- Lumileds 3030 LED chips.
- Color temperature: 4000/5000 (K)
- Lumen efficiency: ≥ 110 lm/W
- Color rendering index: >70
- Life span: 50,000 hrs
- Lumen Maintenance L70 greater than 100,000 hours IESNA TM-21.
Electrical:
- Non-dim is standard.
- 0-10V dimming is optional, please see the wattage difference on dimmable models.
- Input voltage: 120-277Vac., 50/60Hz
- Operating temperature: -40ºC to 40ºC (-40ºF to 104ºF)
- Surge protection: Line-Line 1kV, Line-Earch 2kV
- Optional photocell.
- UL 1310 listed.
Listing:
- UL / cUL listed.
- Listed to UL 1598 and UL 8750.
- DLC listed.
- Suitable for wet location.
- 5 years limited warranty.
- ARRA compliant. (optional)
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
