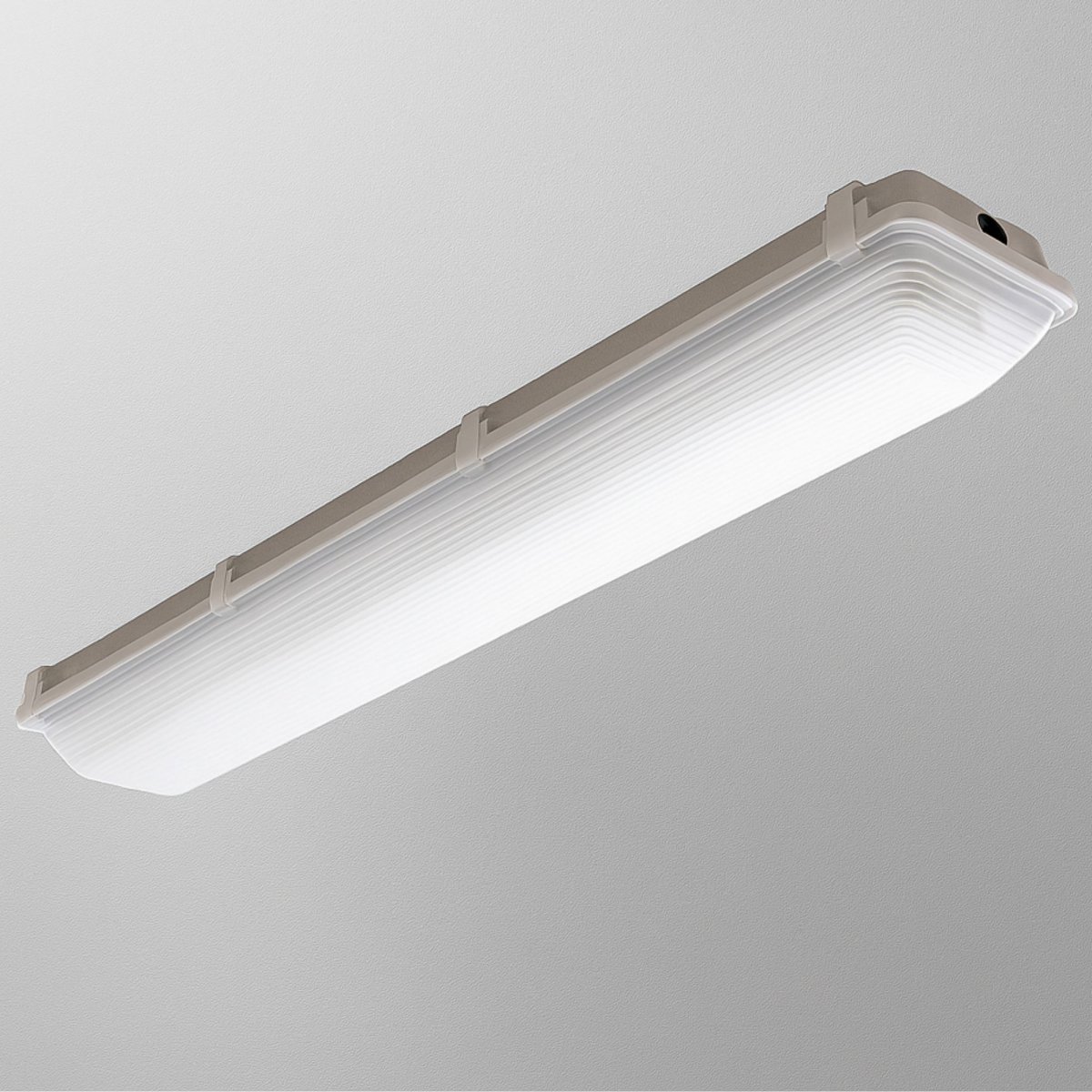

DW-LP Enclosed and Gasket Light

Features:

- Compression molded self-extinguishing fiberglass reinforced polyester compound with UL 5V flame rating (ASTM D635-74).
- Rigid one piece housing construction.
- The housing is sealed against dust and moisture.
- EN-seal™ gasketing provides superior resistance to moisture absorption versus conventional gasketing.
- Molded latch pockets compatible with standard and tamper-proof latches in white acetal, and stainless steel.
- Standard housing available with one 7/8” conduit entry point on either or both ends.

Mounting:

- Standard 316 stainless steel brackets for surface mount provided as a standard.
- Optional flush mount brackets, serves as a mounting point for either a snap-in-place mount or a hook.
- Two 1/4-28 brass studs molded into back of housing for attachment of optional mounting brackets.

Lens:

- Inline thermoformed low profile lenses available in 50% DR acrylic in clear, crepe and Lumieo.
- Lenses for parking garage applications available in 50% DR clear acrylic, polycarbonate and Lumieo.
- Lens retained by 6 for 2ft and 8 for 4ft captive flush mounted latches.

LED:

- Color Temperature: 2700/3000/3500/4000/5000 (K).
- LED Module: High efficency up to 162 LPW.
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours
- Poke in wire connectors.
- Color Rendering Index: 80+

Electrical:

- High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
- Philips Xitanium: 0-10V Dim to 1%(PH).
- Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
- Generic: 0-10V Dim to 10%(GR).
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature: -22°F (-30°C) ~ 122°F (50°C) (Std.)
-40°F (-40°C) ~ 122°F (50°C) (with LT option) -31°F (-35°C) ~ 140°F (60°C) (with HT option)
- Constant Current, Class 2

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

Listing:
- F1 weatherability rating.
- UL 5VA flame rating (ASTM D635).
- UL/cUL listed for damp and wet location.
- IP65, IP66 and IP67.
- IP69K Rated using polycarbonate and acrylic parking garage lenses (#SNGP50, SNGPGPC, SNGPGPC-F/S). - Made in USA.
- NSF International certified for NSF/ANSI Standard 2 - Food Equipment.
- Bluetooth Mesh System available, please contact factory for more information.
- ARRA and BAA compliant.
