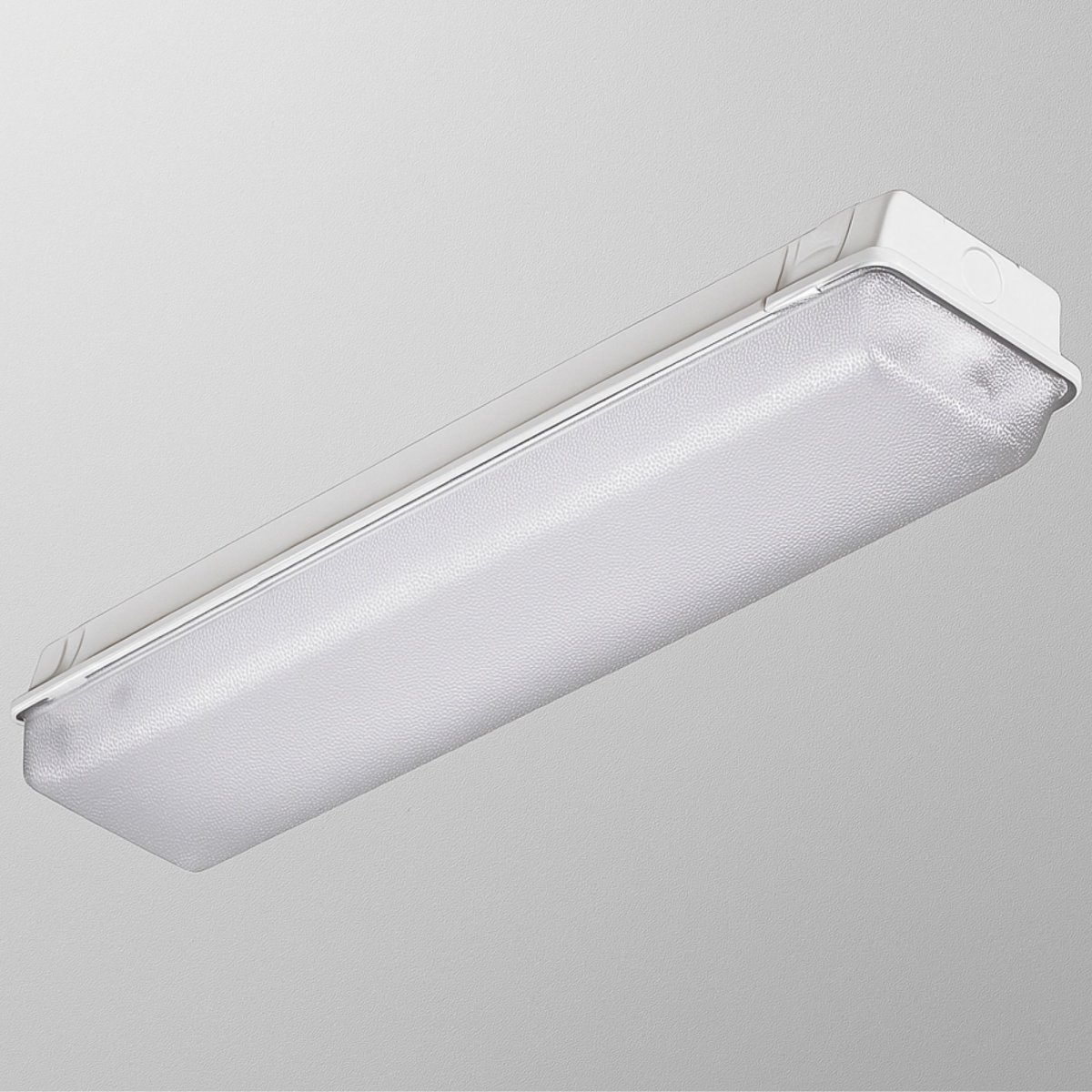

DW LED Enclosed and Gasket Light

Features:

- UV-stabilized, Fully gasket fiberglass upper body with cold-rolled steel white finish reflector(wireway) and a high-impact acrylic DR crepe pattern diffuser, securely positioned in a permanent, IP 65 and IP67 continuous poured in place sealing gasket.
- Internal crepe pattern allows a smooth exterior surface, clear crepe shallow diffuser acrylic DR or polycarbonate.
- The diffuser and upper components are locked into place by retaining latches, assuring a secure and tight seal.
- Captive non-metallic snap-action latch cam secures lens to housing. Optional stainless steel latch.
- White end plugs 7/8” Housing end holes (2) - Snaps and locks tight to maintain tight seal of unused end holes.
- Smooth edges for easy handling.
- Tamper resistant (TR) option prevents the lens from being removed by unauthorized personnel. Tamper proof driver cat. #TPDT required (sold separately).

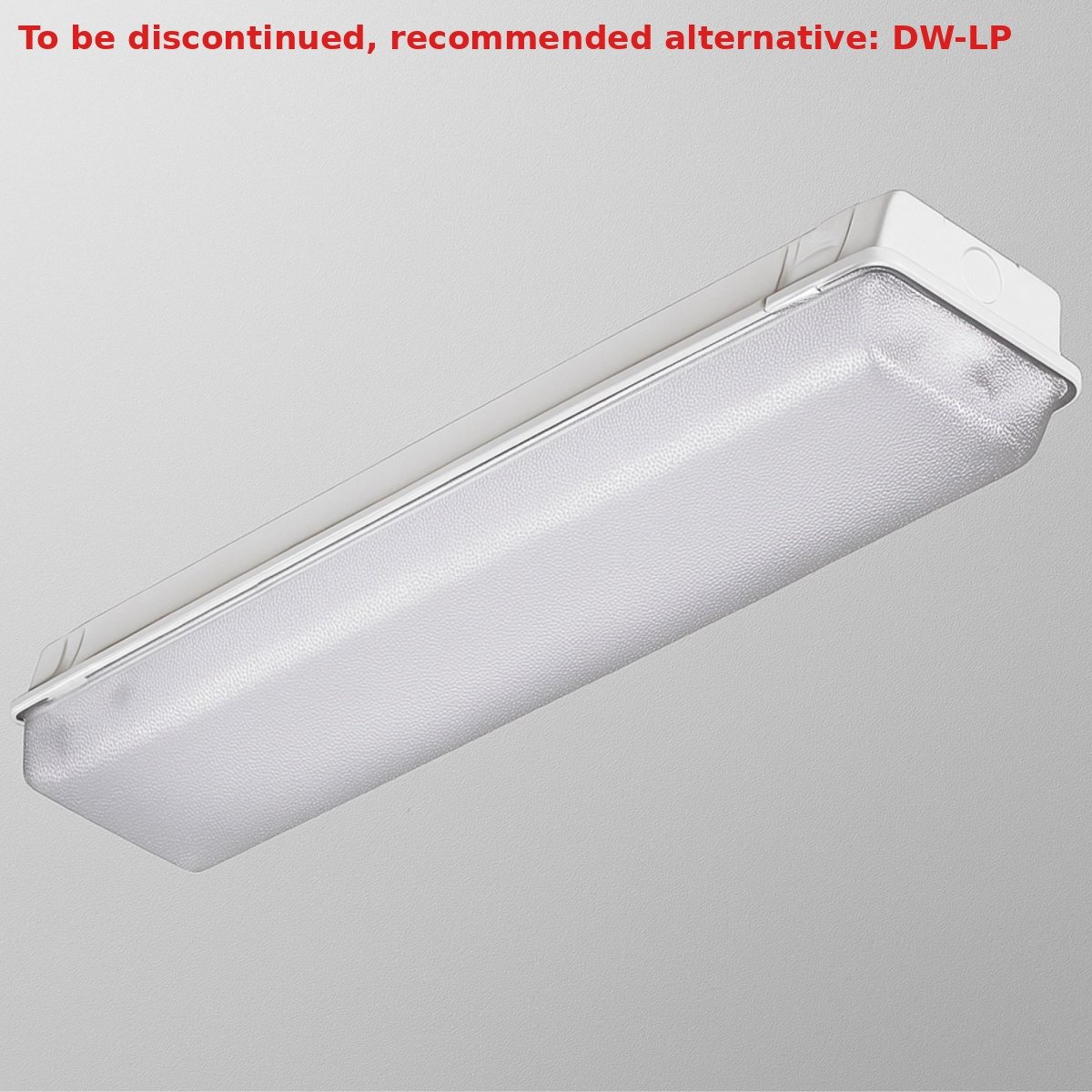

- Optional Low profile (DW-LP) designed weatherproof enclosure, one-piece 5VA fiberglass housing, NEMA 4X gasket. Stainless steel latches (#316) available.

Mounting:

- Chain, swivel stem and surface mounting.
- Mounting brackets provided. (Stainless steel brackets)

LED:

- Color Temperature: 2700/3000/3500/4000/5000 (K).
- LED Module: High efficency up to 162 LPW.
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours
- Poke in wire connectors.
- Color Rendering Index: 80+

Electrical:

- High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
- Philips Xitanium: 0-10V Dim to 1%(PH).
- Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
- Generic: 0-10V Dim to 10%(GR).
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature: -4°F (-20°C) ~ 122°F (50°C) (Std.) -40°F (-40°C) ~ 122°F (50°C) (with LT option) -31°F (-35°C) ~ 140°F (60°C) (with HT option)
- Constant Current, Class 2

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

Listing:
- F1 weatherability rating.
- UL 5VA flame rating (ASTM D635-74).
- UL/CUL listed and labeled.
- Listed to UL 1598 and UL 8750.
- Suitable for damp / wet location listed.
- IP Rating: IP65 and IP67.
- CEC Compliant EM (please contact for more information).
- Made in USA.
- ARRA and BAA compliant.
- BAA compliant (optional).
- 5 years limited warranty.
- NSF International certified.
- U.S. Department of Agriculture.
- Canadian Standard Association.
- Nema 4X rated lens and housing, IP66. (DW-LP only)
- 1500 PSI hose-down. (DW-LP only)
- Bluetooth Mesh System available, please contact factory for more information.
